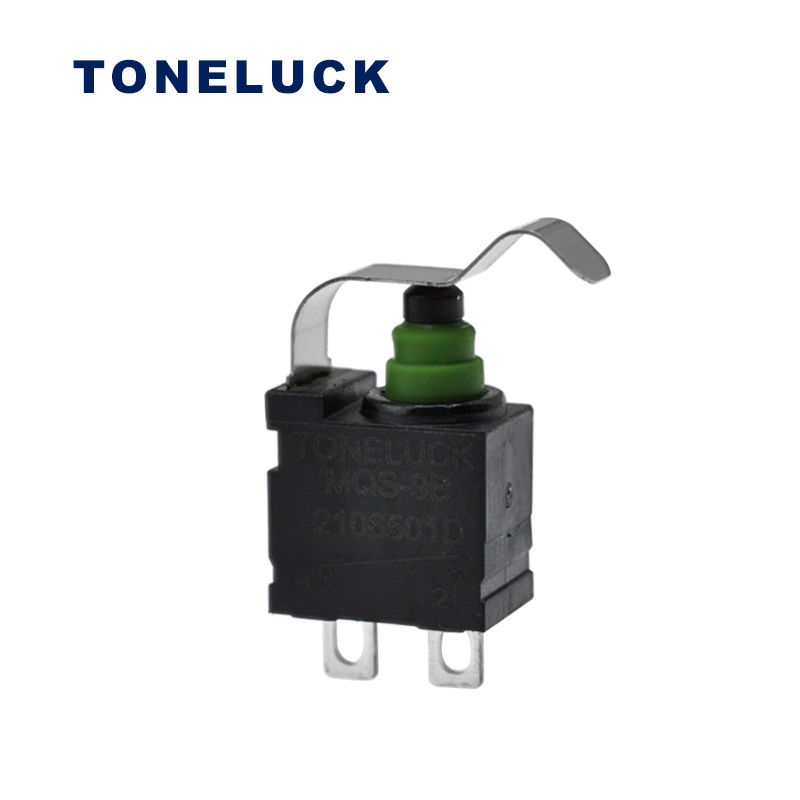

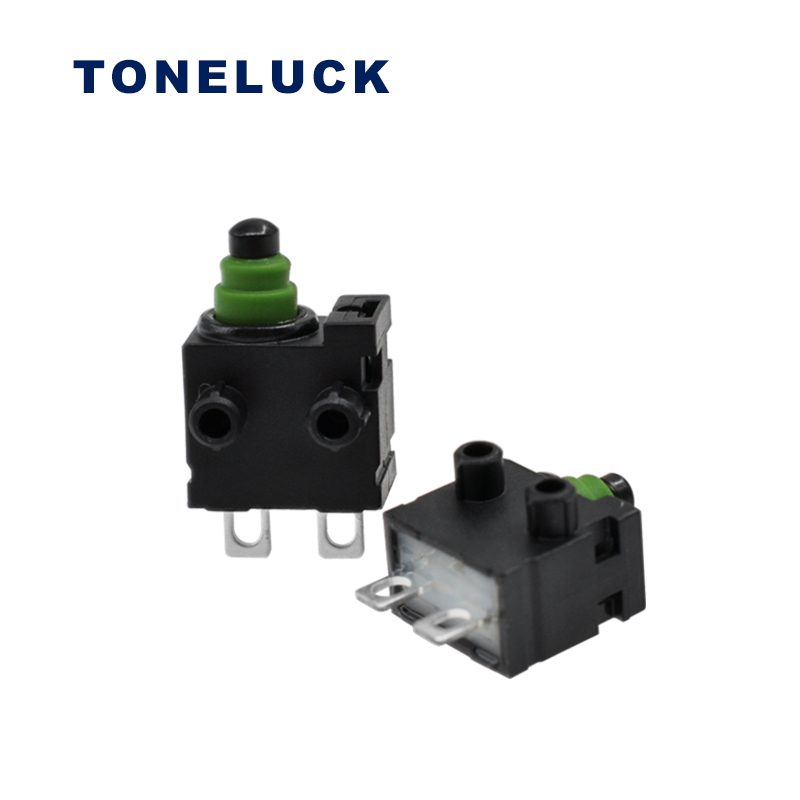

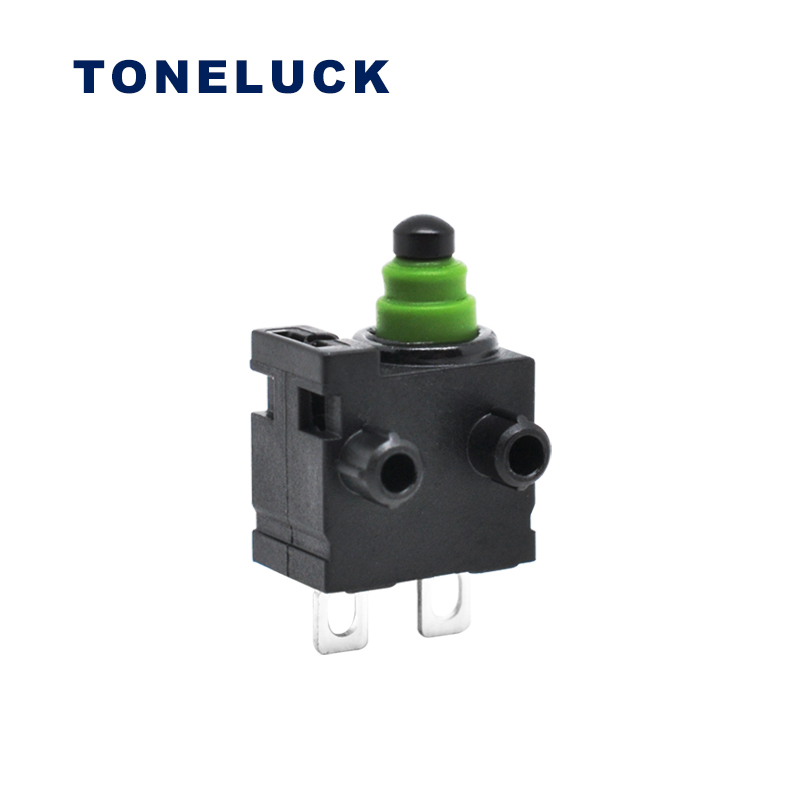

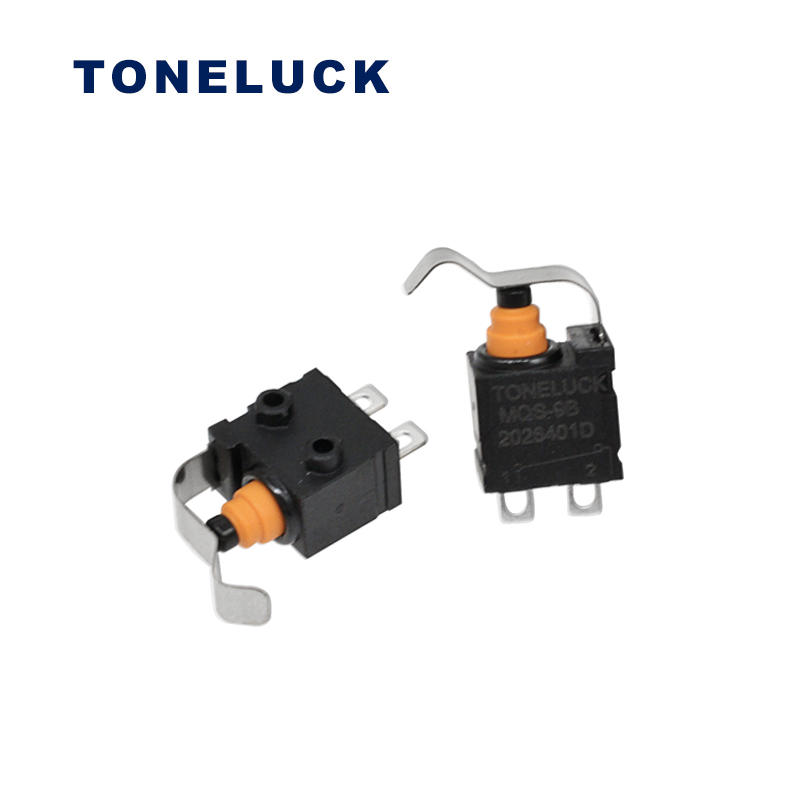

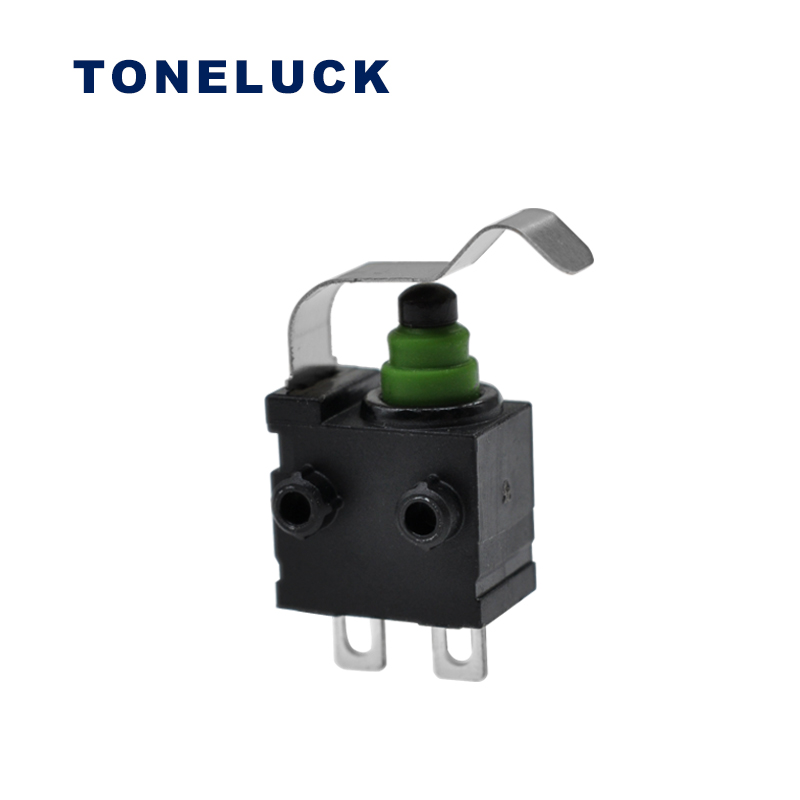

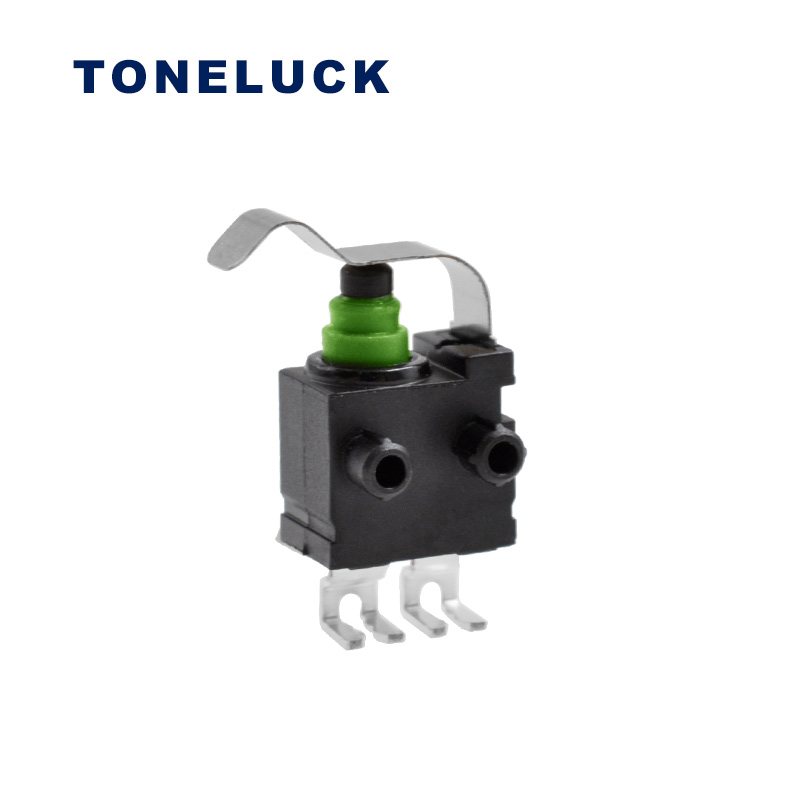

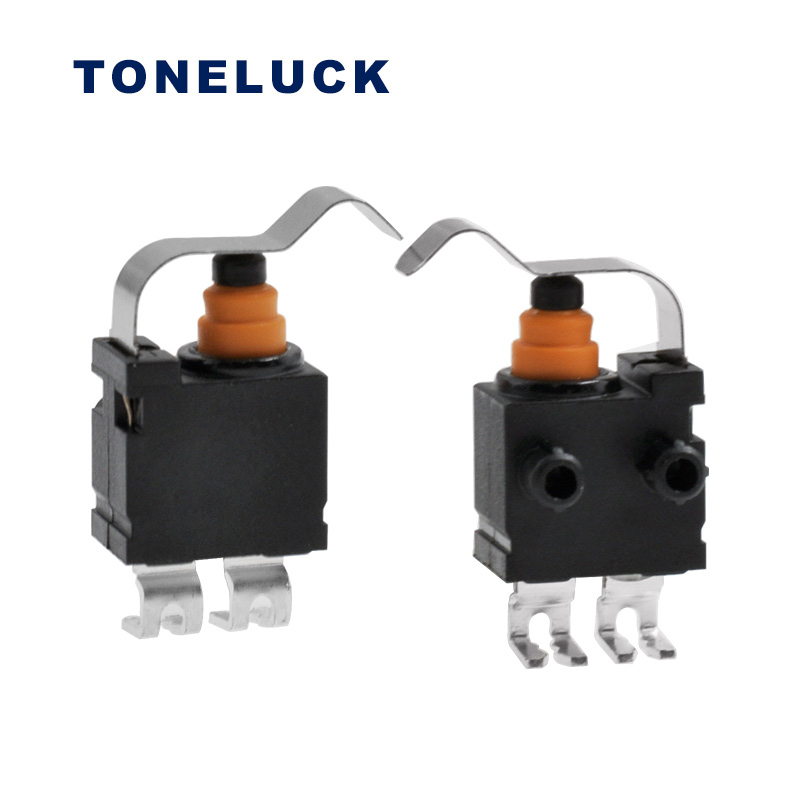

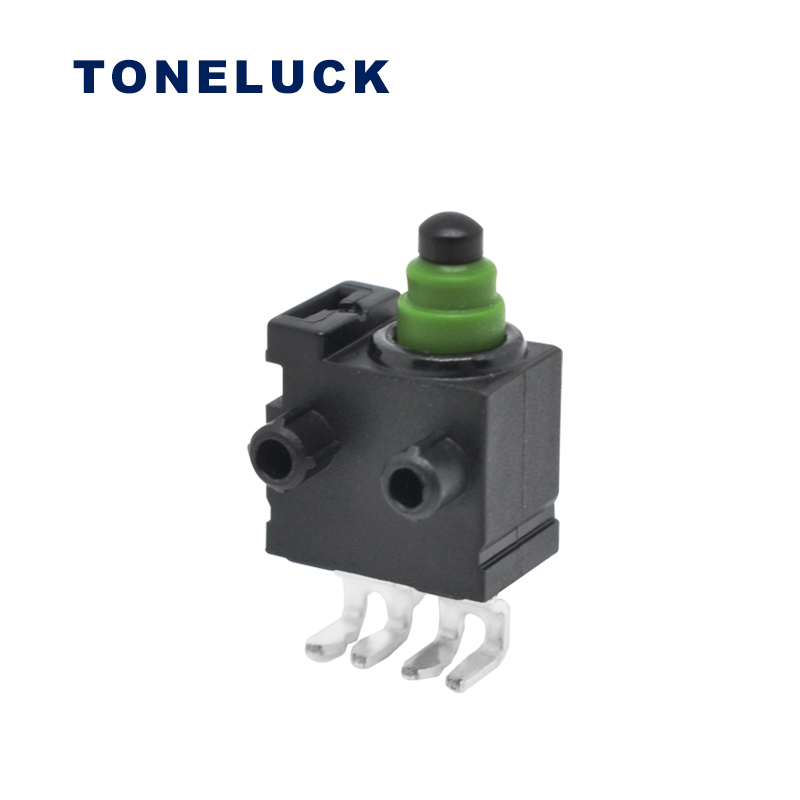

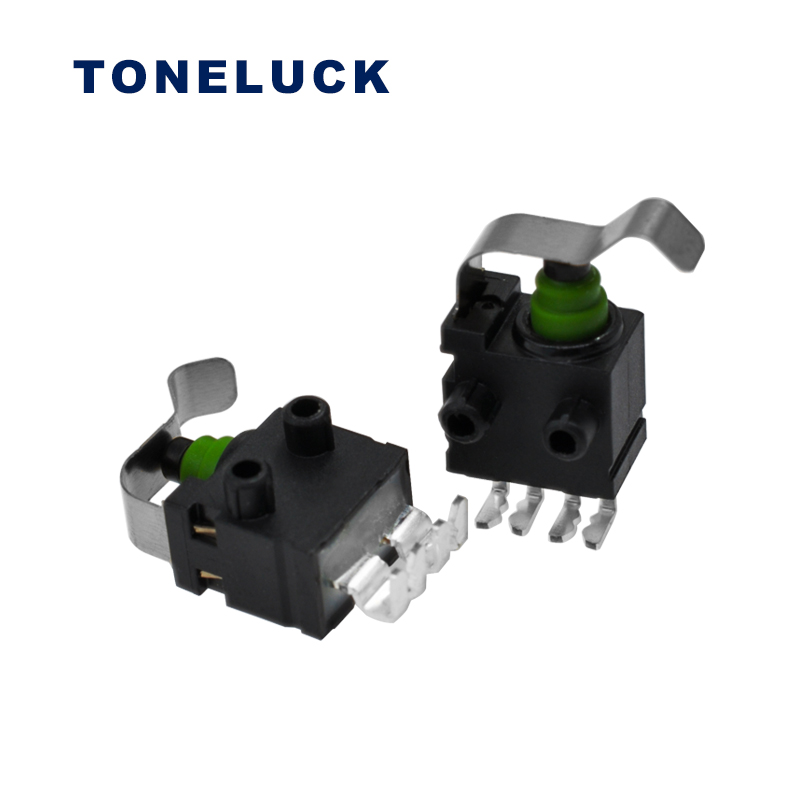

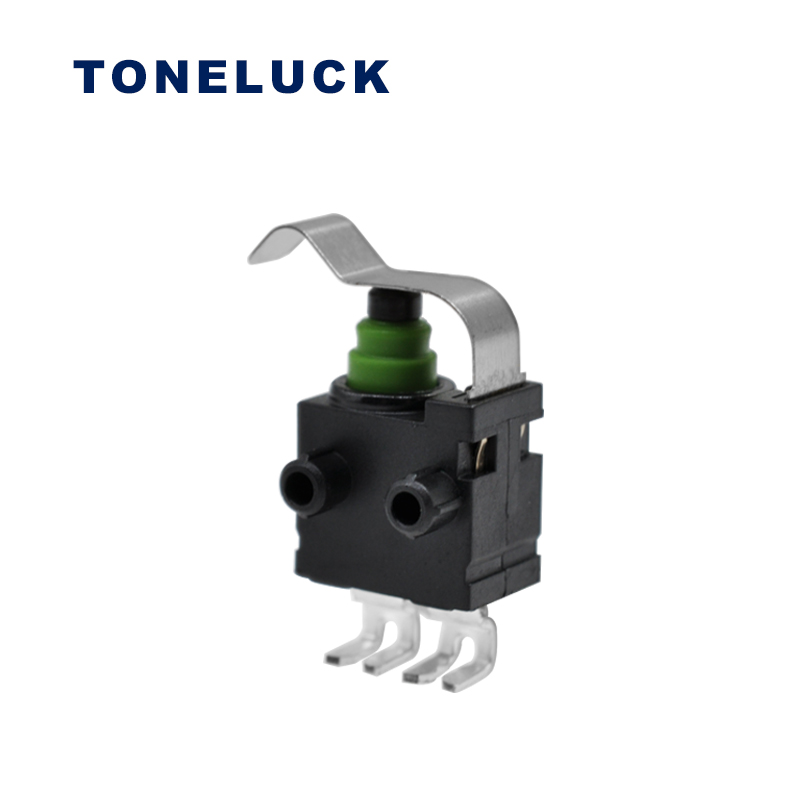

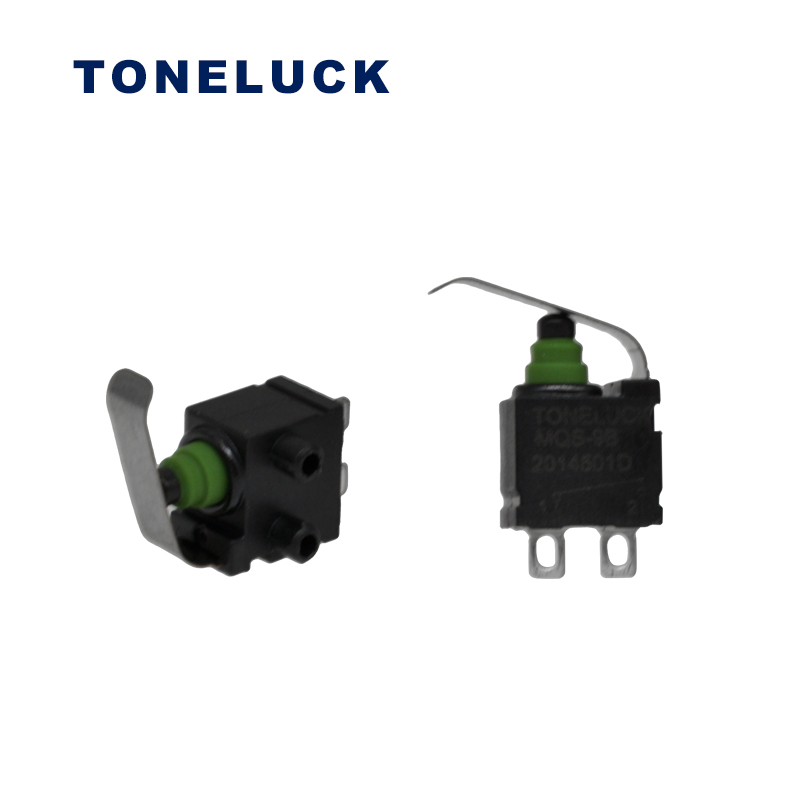

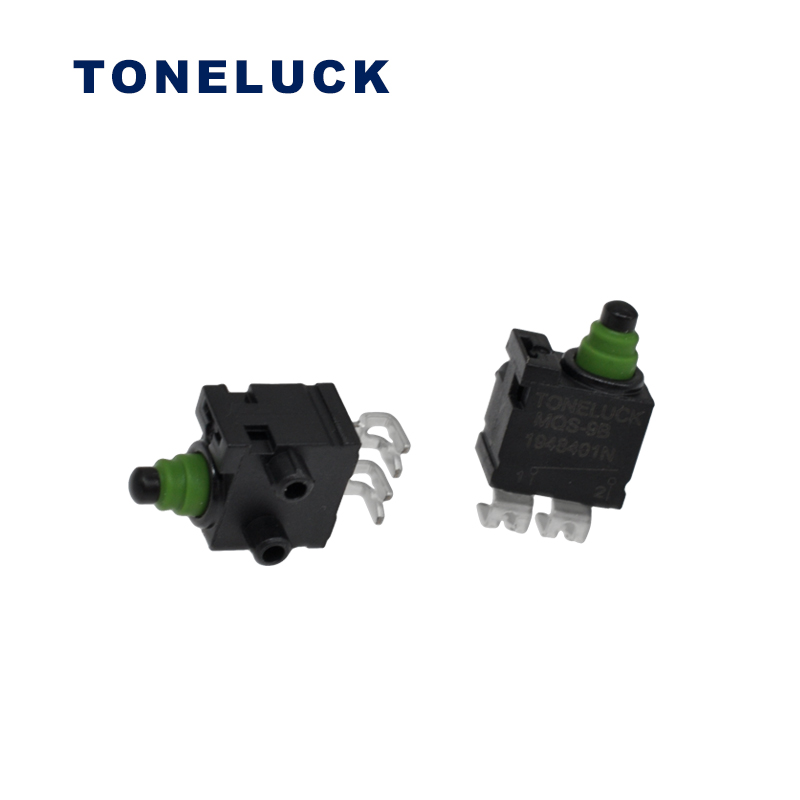

MQS-9B Small Micro Switch Ordering Introduction
Series Electrical rating Location Pin Terminal Type Lever Type Version
MQS-9B 1= 1~50mA/5~16VDC,SPST NO A = Side L,2mm A=Angled PCB pins, side L 00 = No lever Standard Version: 01
2= 1~50mA/5~16VDC,SPST NC B = Side R,2mm B=Angled PCB pins, side R 01= 1# lever Custom-made:02,03,04,etc.
C = Both Sides, 2.0mm C=Straight PCB pins 02=2# lever
D = Side L, 5.0mm D=Solder terminal Custom-made:03,04,etc.
E = Side R, 5.0mm E=Interlock terminal,side L
F = Both Sides, 5.0mm F= Interlock terminal,side R
N = No Location Pin G= Interlock terminal
G = Both Sides,1.5mm P= Interlock2 terminal,side L
Q= Interlock2 terminal,side R
R= Interlock3 terminal,side L
T= Interlock3 terminal,side R
W=Wires Specification: eg.W1,W2,W3,etc
Specification
Actuation Side IP Protection IP67
Terminal Side IP Protection IP00
Operation Force 50-150gf
Operation Position 7.1mm±0.25
Electrical rating 1~50mA/5~16VDC, 40T85, 300,000 cycles
Mechanical Life 500,000 cycles
Contact Resistance 500mΩ max. (initial)
Operating Force 150gf Max.
Insulation Resistance 100 MΩ min.
Dielectric Strength 500VAC for 60 +/- 5 sec
Housing UL94 HB
