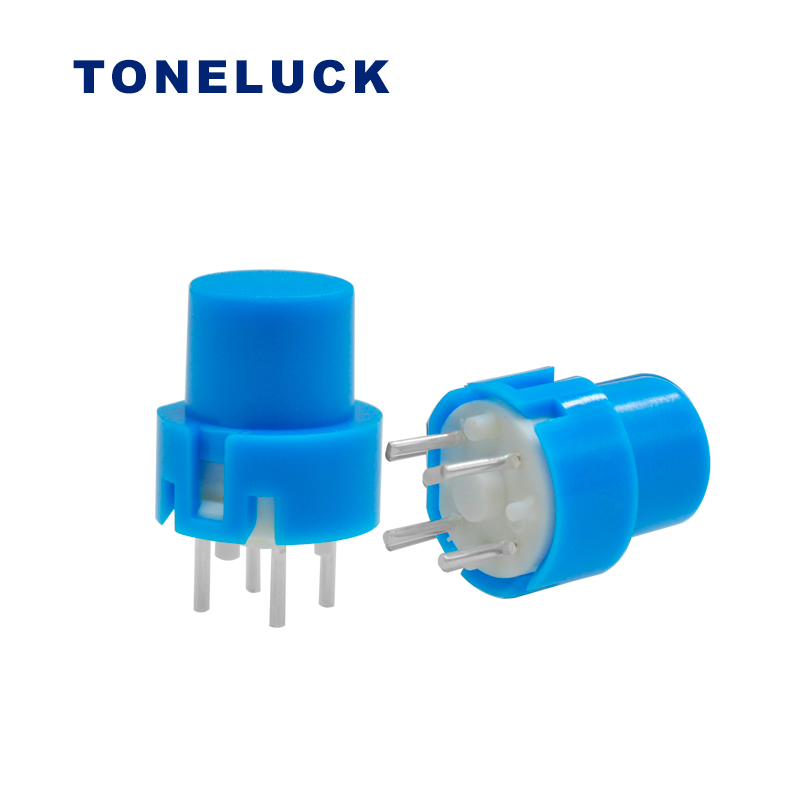

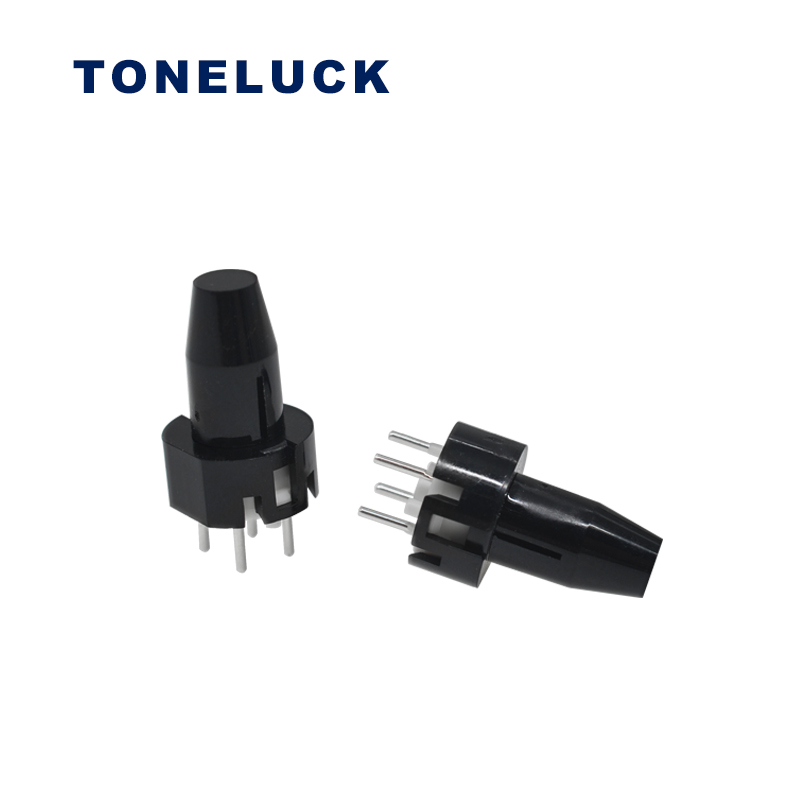

Key Push Button Start Switch Specification

Rating 0.01A 35VDC 100,000 cycles
Temperature -10 to 30℃
Total Travel 0.8mm Max
Contact Resistance 50 mΩ max. initial
Insulation Resistance 100 MΩ min.
Dielectric Strength 500VAC for 60 +/- 5 sec
Basic Material PBT
Keycap Material PC
Contact Silver plated
Function Momentary
Operating Force 130±50gf
Soldering Condition 260ºC max for 5 +/- 1 seconds
Solvent washing Non-washable

Key Push Button Switch Ordering Introduction

Series Color Code Operating Force
KEY-S W= White F1=130 +/- 50gf
KEY-R B= Black (C) F2=180 +/- 80gf
KEY-P R= Red (199C)
KEY-R3 L= Blue (3005C)
KEY-L KEY-K Y= Yellow (115C)
DGY= Dark Grey (11C)
G= Green (354C)
LGY= Light Grey (5425C)
