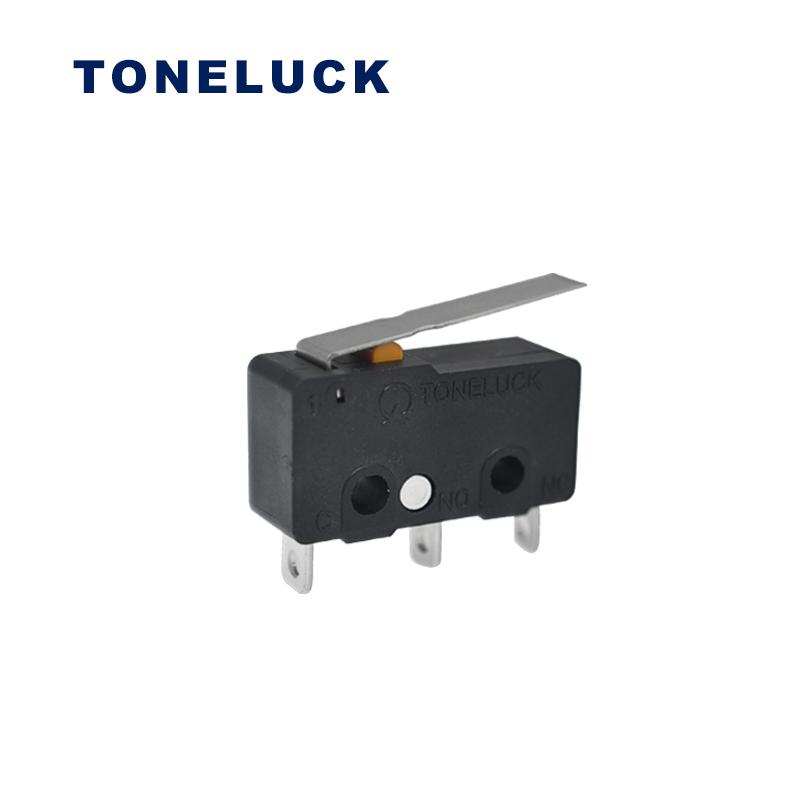

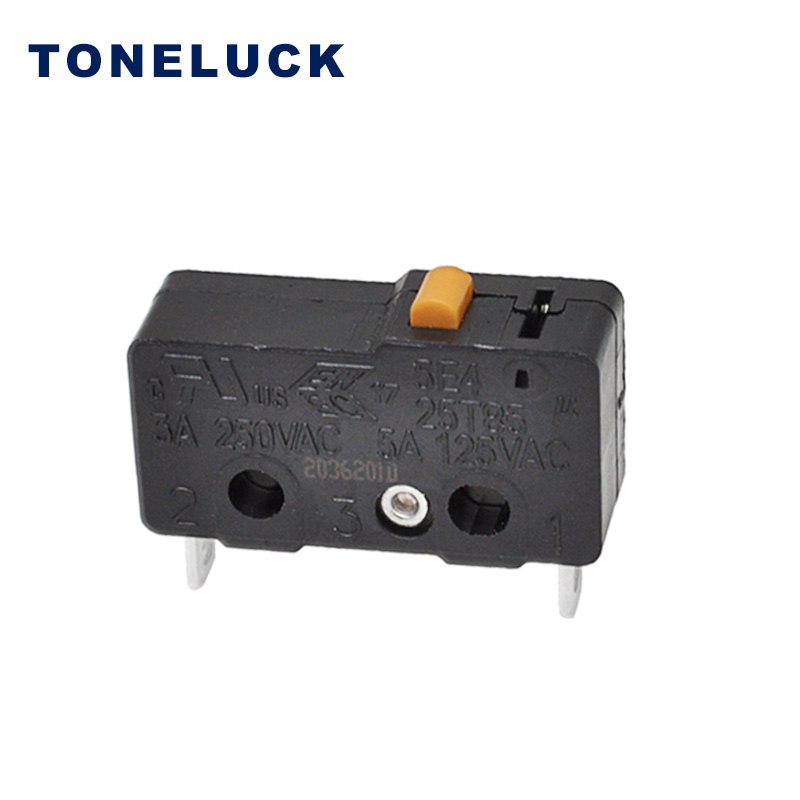

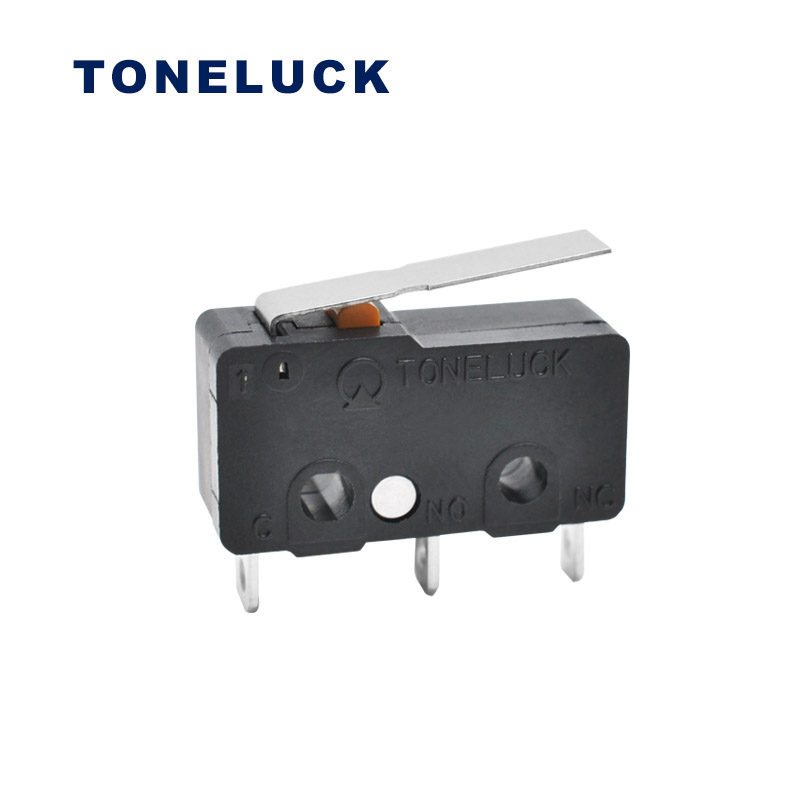

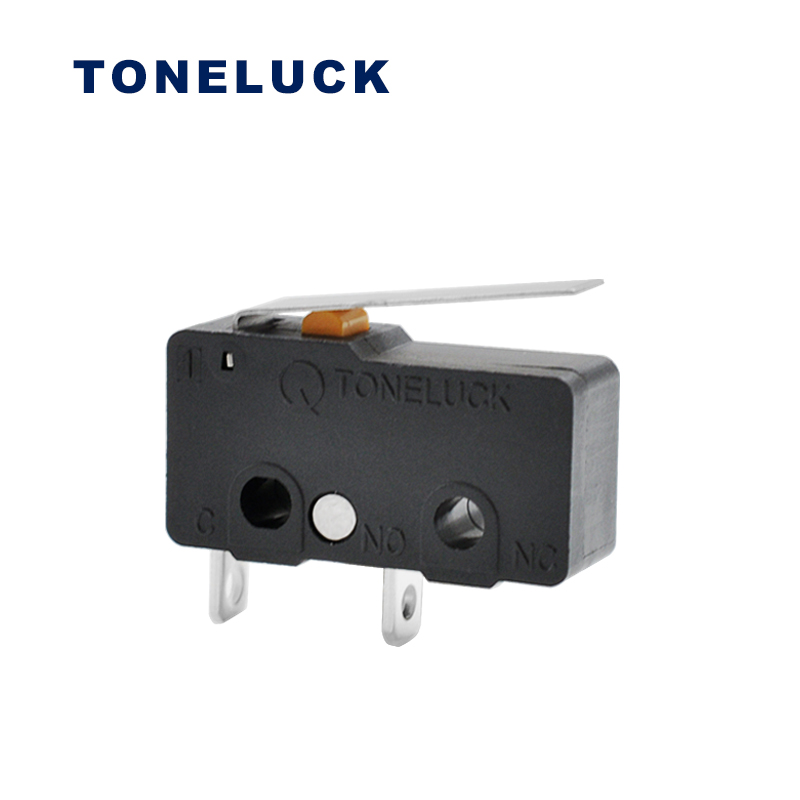

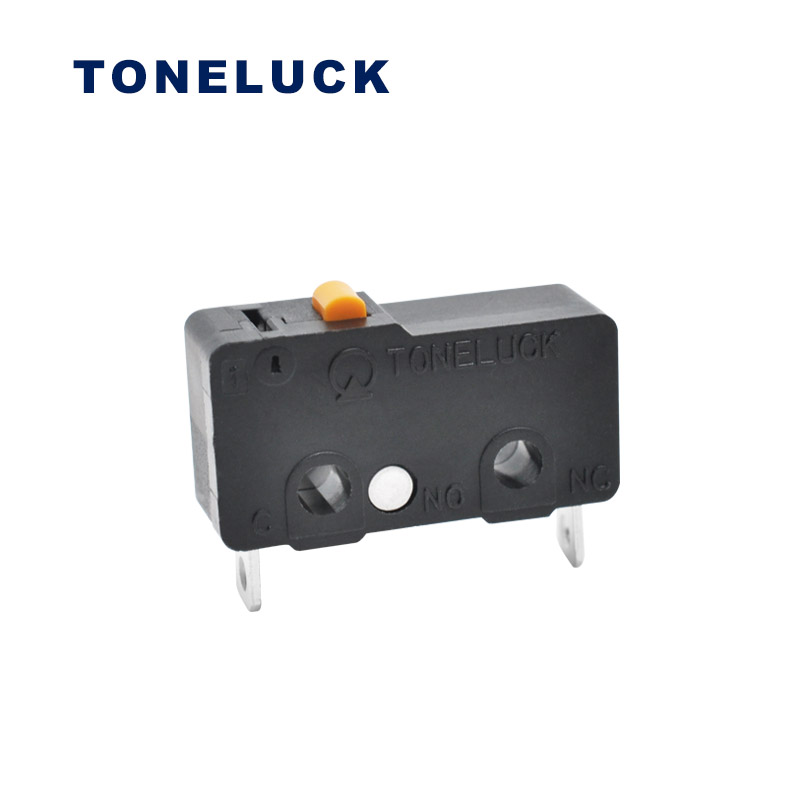

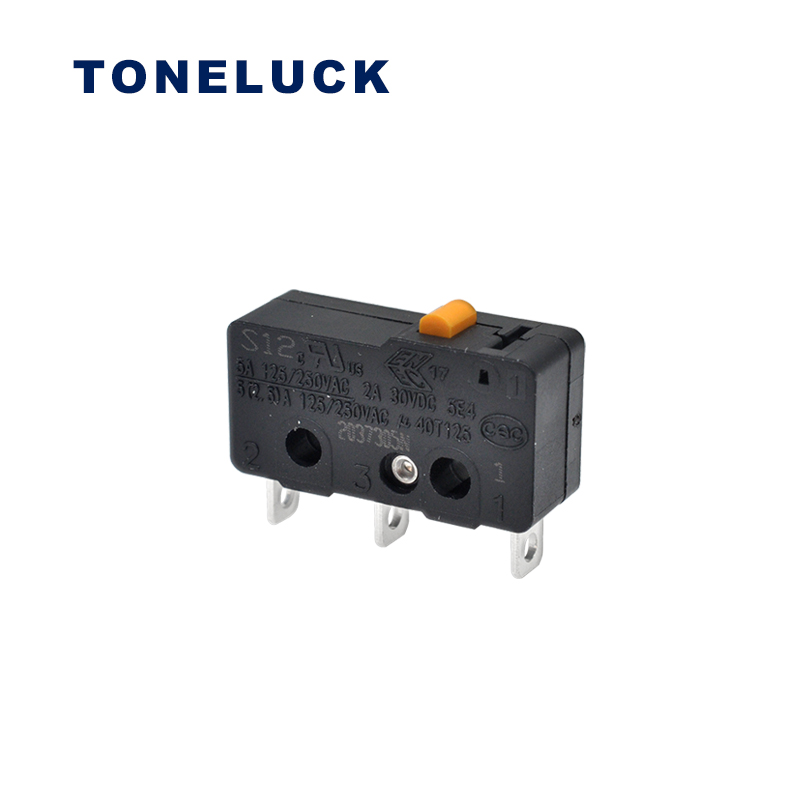

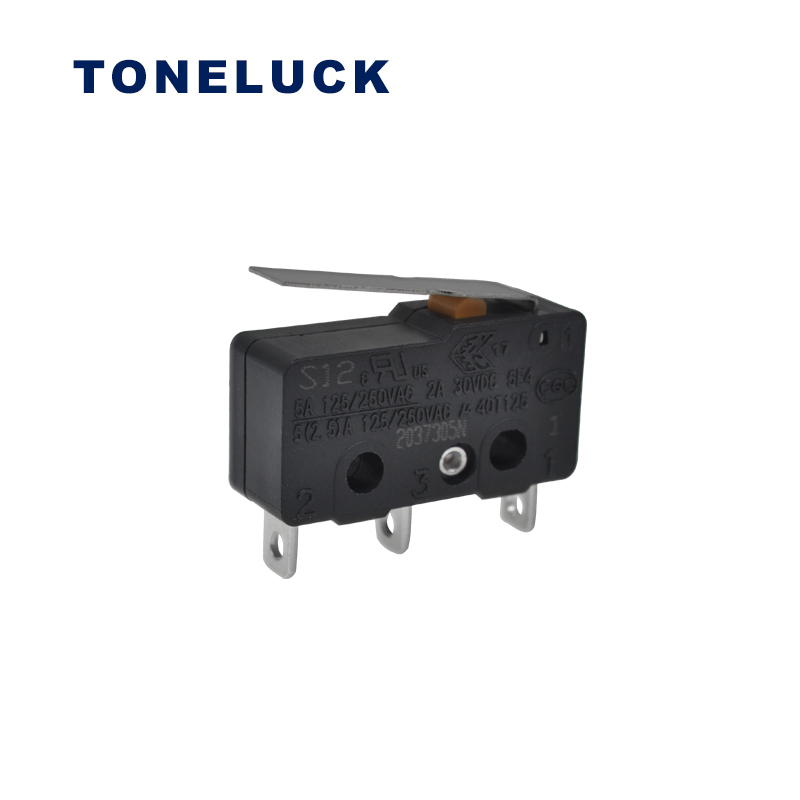

S1 Snap Switch Ordering Guide
Series Current Code Terminal Type Operation Force Lever Type Install Hole Size Version
S12: not for IEC 60335-1 Ed 4 A= SPDT A= Solder Terminal S12 F1= 35 ~ 70gf 00= Pin plunger, no external lever D= Mounting Hole Size is 2.2mm diameter 01 = Standard
S13: suitable for IEC 60335-1 Ed 4 B= SPST-NC D= Quick Connect Terminal F2= 70 ~ 130gf Others: Ref. To lever summary S= Mounting Hole Size is 2.4mm diameter
C= SPST-NO G= Quick Connect Terminal(90 deg bent) F3= 220 gf Max
P= PCB Terminal
Z= Solder Terminal(90o bent)
S1 Specification
Electrical rating 5A 125 / 250VAC;2A 30VDC UL 6000 cycles
5(2.5)A 125/250VAC;2A 30VDC ENEC 50000cycles
5(2.5)A 125/250VAC;2A 30VDC CQC 50000cycles
Mechanical Life 500,000 cycles min.
Temperature -40ºC ~ +125ºC
Insulation Resistance 100 MΩ min.
Dielectric Strength 1000VAC for 60 +/- 5 sec
Housing UL 94V0 Thermosetting Plastic
Contact Material silver alloy
