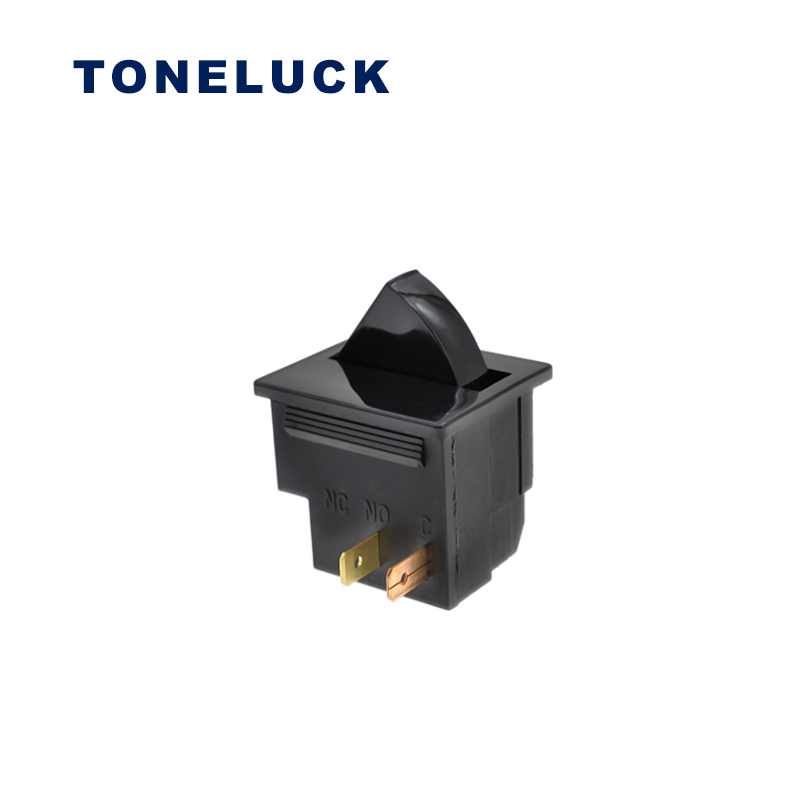

D3 Door Switch for Light Description
Toneluck D3 series is a door switch for light when the refrigerator opened and closed. And some wardrobes are designed with the D3 switch as well but very few see it. Generally, the door is open, the light will be activated. When the door is closed, the light will be shut off.
As a professional door switch manufacturer, we not only provide the D3 series, but also have D6, D2, and D8 series. Some of them are high-temperature, and some of them are high-current, welcome to check our product page to see more. The D3 door switches have different kinds of vision for your options, please check the parameters as following below.
| Product Series | D3 |
|---|---|
| Ratings | 8A 250VAC 6000 cycles UL 1/3HP 125/250VAC 6000 cycles UL 8A 250VAC 100,000 cycles（NO）UL 6A 250VAC 50,000 cycles ENEC |
| Mechanical Life | 1,000,000 cycles min. |
| Operating Temp. | 25T85 |
| Insulation Resistance | 100 MΩ min |
| Dielectric Voltage | 1250 VAC for 60+/-5sec. |
| Safety Approvals | UL, ENEC |
| Operating Force | 150~350gf |
| Housing | UL94 V-2 |
| PTI | 250V |
D3 Door Switch Ordering Introduce
You can check this ordering selection to choose the D3 door switch parameters, and if you need more information, please feel free to contact us.
