Ordering Guide
Series Circuit Terminal Type Operation force Lever Type Contact Plating Versions
MQS-1 A=SPDT A: Solder F1=80±20 00=without lever S = Standard silver 01 = Standard
MQS-14 B=SPST-NC B: PCB terminals, Right Bent F2=130±30 01=Straight Lever G = Gold over silver
MQS-15 C=SPST-NO C: PCB terminals, Left Bent F3=160±30 etc.
MQS-16 D: Quick connect terminals F4=230±40
MQS-17 E: Quick connect terminals, Right Ben
MQS-18 P: PCB terminals, Straight
MQS-19 Etc.
MQS-1D
MQS-1F
Specification
Model Temperature Rating Electrical Life
MQS-1 40T85 5A 125VAC (UL) 6,000 cycles min.
3A 125/250VAC (ENEC) 50,000 cycles min.
3A 125/250VAC (CQC) 50,000 cycles min.

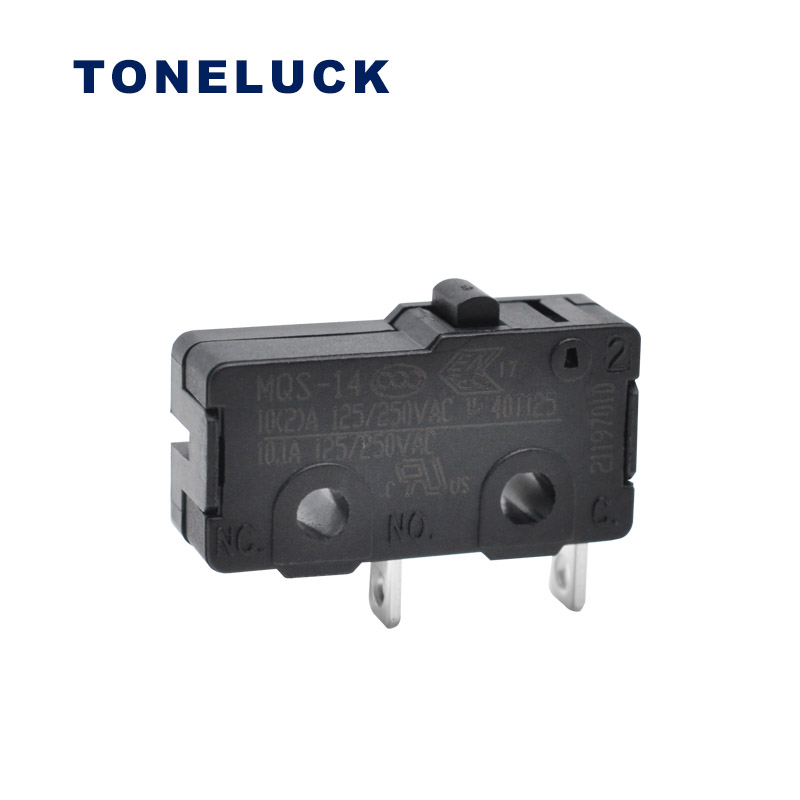

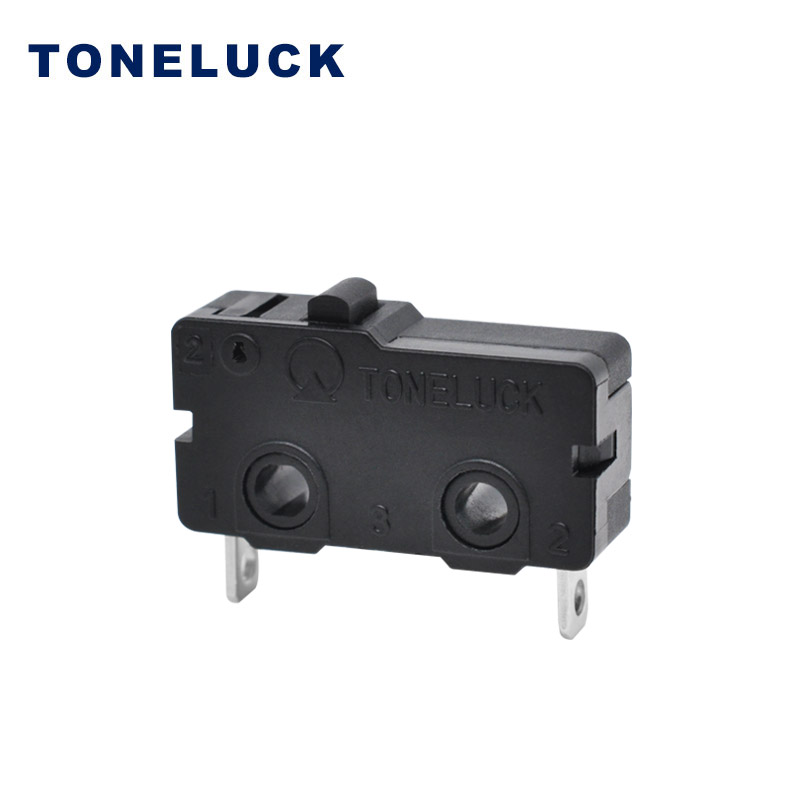

MQS-14 40T125 10.1A 125/250VAC (UL) 6,000 cycles min.
10(2)A 125/250VAC (ENEC) 10,000 cycles min.
10(2)A 125/250VAC (CQC) 10,000 cycles min.
MQS-15  40T85 10.1A 125/250VAC (UL) 6,000 cycles min.
10(2)A 125/250VAC (ENEC) 10,000 cycles min.
10(2)A 125/250VAC (CQC) 10,000 cycles min.
MQS-16 40T125 0.1A 125/250VAC (ENEC) 50,000 cycles min.
0.1A 125/250VAC (CQC) 50,000 cycles min.
MQS-17   40T85 0.1A 125/250VAC (ENEC) 50,000 cycles min.
0.1A 125/250VAC (CQC) 50,000 cycles min.
MQS-18 40T125 5A 125/250VAC (UL) 6,000 cycles min.
5A 125/250VAC (ENEC) 50,000 cycles min.
5A 125/250VAC (CQC) 50,000 cycles min.

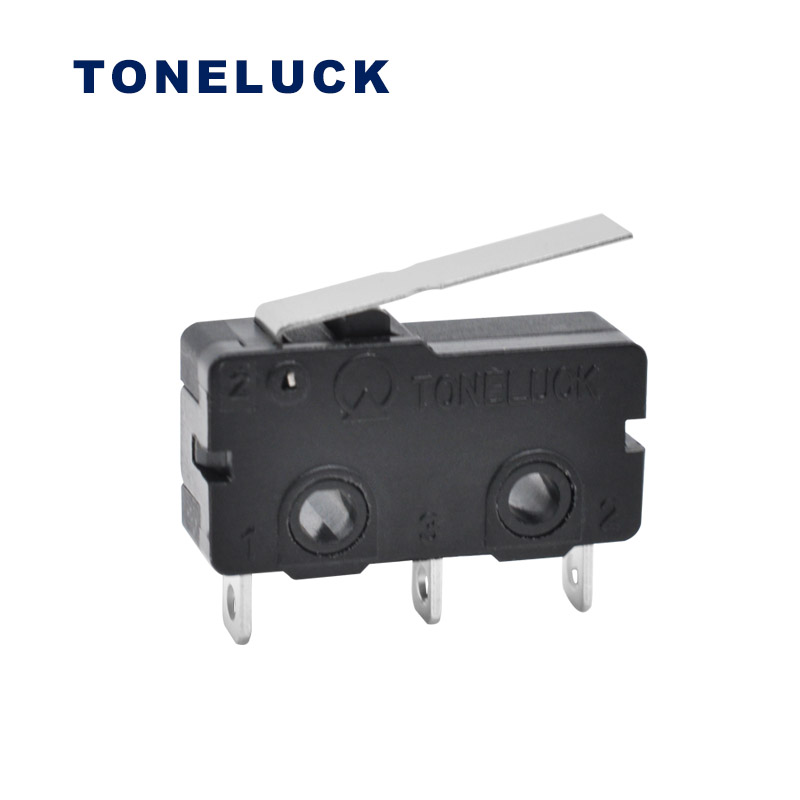

MQS-19 40T85 5A 125/250VAC (UL) 6,000 cycles min.
5A 125/250VAC (ENEC) 50,000 cycles min.
5A 125/250VAC (CQC) 50,000 cycles min.

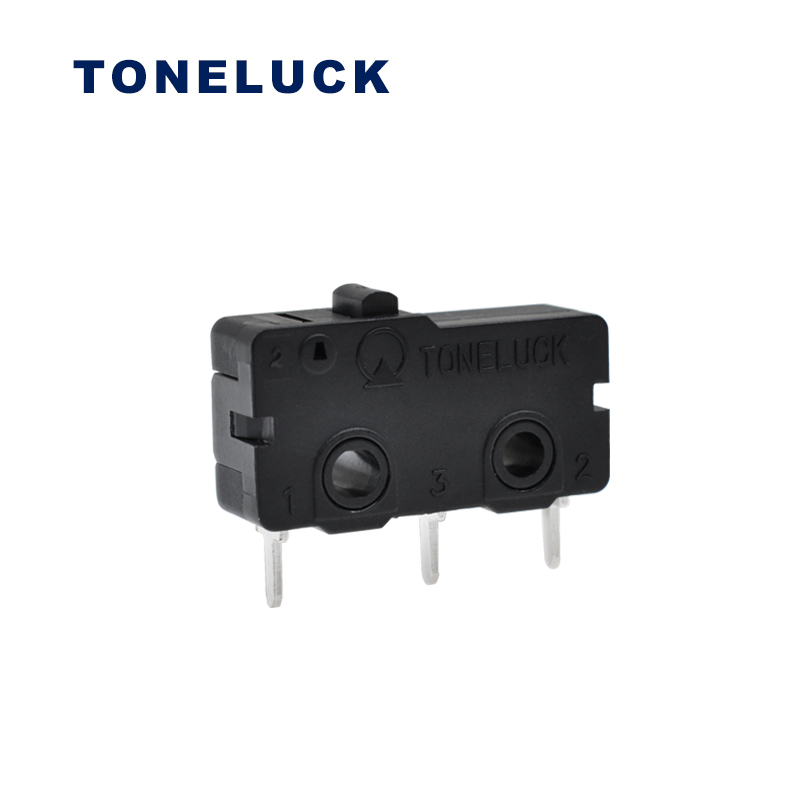

MQS-1D 40T85 5A 30VDC 10,000 cycles min.
MQS-1F 40T85 6A 24VDC 50,000 cycles min.
Mechanical Cycles 500000cycles
Insulation Resistance 100 MΩ min.
Dielectric Strength 1000VAC for 60+/-5 sec
Shell Material UL 94V-0 Thermoplastic
Contact Sliver
Certification UL, CUL, CQC, ENEC, IEC61085, UL1054, ROHS, REACH
