| S21 Specification |
| Electrical rating | 10~100mA,12~24VDC, 40T85 |
|---|---|
| Electrical Life | 10~100mA,12~24VDC, 250,000 cycles |
| Mechanical Life | 500,000 cycles |
| Contact Resistance | 50mΩ Max. (initial) |
| Operating Force | 200gf Max |
| Insulation Resistance | 100 MΩ Min. |
| Dielectric Strength | 500VAC for 60±5 sec |

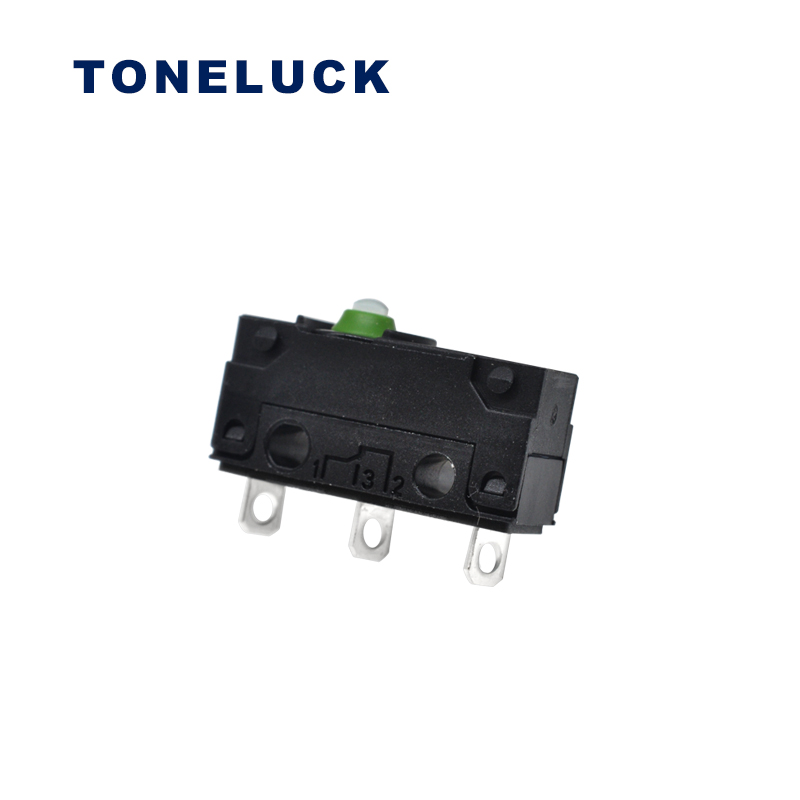

| S21 Sealed Micro Switch Ordering Guide |
| Series | Circuitry | Terminal Type | Terminal Type | Mounting Hole/Position Pins | Version |
|---|---|---|---|---|---|
| S21 | A= SPDT | S=Solder Terminal | Lever Type | S=⌀2.4(Mounting Hole) | 01: Standard Specification |
| B=SPST-NC | Other | 01,02,03……99 | 02:Wire cross sectional area, line length, color | ||
| C=SPST-NO | 00:no Lever | 03: Wire cross sectional area, line length, color |
