Mechanical life: 1,000,000 cycles min.

Insulation Resistance: 100 MΩ min.

Voltage Resistance: 1000VAC for 60 +/- 5 sec

Shell Material: UL 94V0 Thermoplastic

Contact Resistance: 50mΩ max. initial

Model Temperature Contact Type Rating UL1054 Elife IEC61058 Elife IEC60335 Elife UL858 Elife
L41 40 T 85 A1 0.1A 125/250VAC 100000 50000
L42 40 T 85 A1  5.0A 125/250VAC 100000
5(1)A 250VAC 50000
L50 40 T 105 A2 0.1A 125/250VAC 100000 100000
0.1A 30VDC
L51 40 T 105 A1 0.1A 125/250VAC 100000 50000
0.1A 30VDC

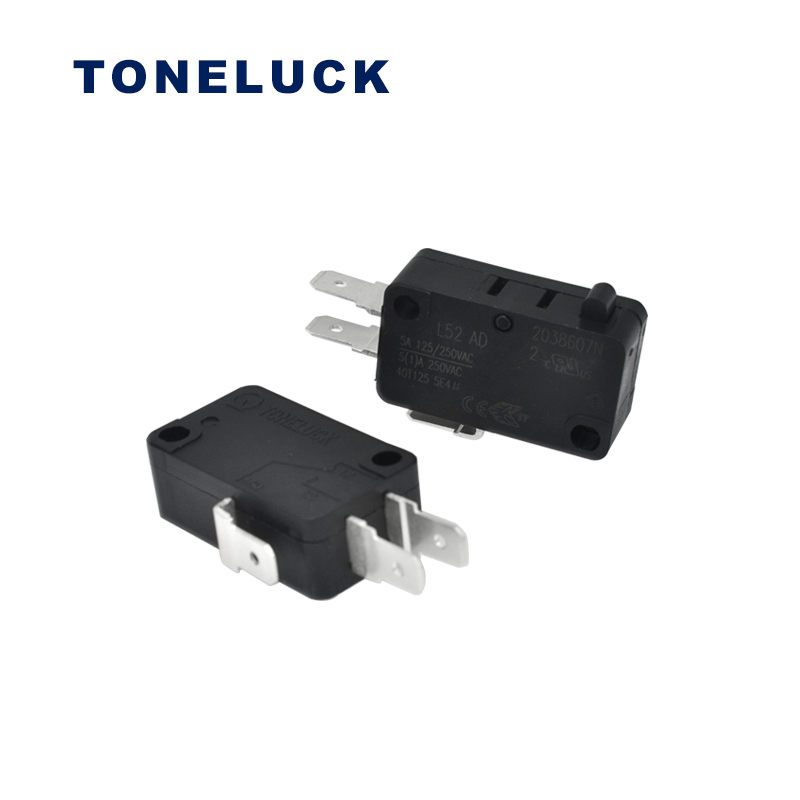

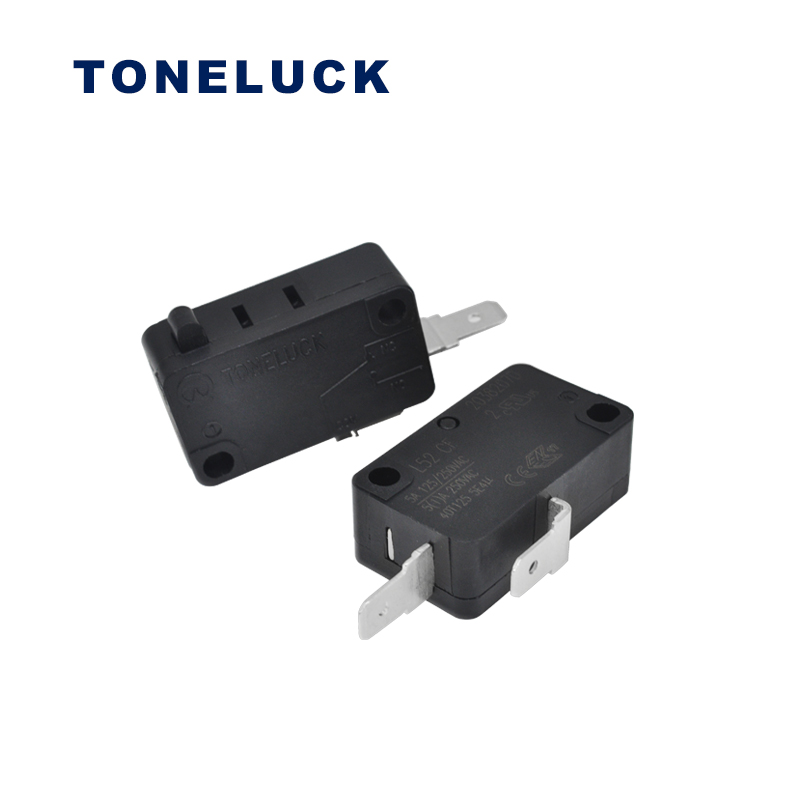

L52 40T125 A1 5.0A 125/250VAC 100000
5(1)A 250VAC 50000
L53 40 T 85 A1  0.1A 125/250VAC 50000 Yes
L54 40T125 A1 5.0A 125/250VAC 50000 Yes
L61 40T150 A1 0.1A 125/250VAC 100000 6000+94000
2A 125/250VAC
0.1A 30VDC 6000
A2 0.1A 125/250VAC 100000
0.1A 30VDC 100000

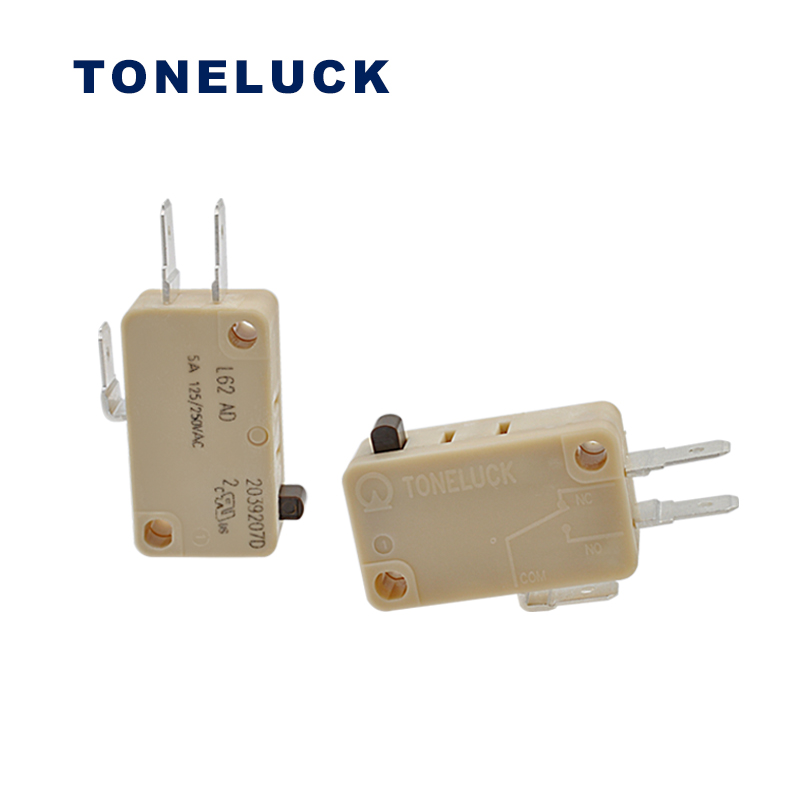

L62 40T150 A1 5A 125/250VAC 100000 6000+94000
L71 40T200 A1 0.1A 125/250VAC 6000
0.1A 30VDC 6000
1A 30VDC 6000
L72 40T200 A1 5A 125/250VAC 100000
0.1A 30VDC 6000
1A 30VDC 6000
L91 40T220 A1 0.1A 125/250VAC 100000 6000+94000
L92 40T220 A1  5A 125/250VAC 100000 6000+94000
TONELUCK L SERIES  SNAP ACTION SWITCH ORDERING GUIDE
L series Snap Action Switch Ordering Guide
