Short Description

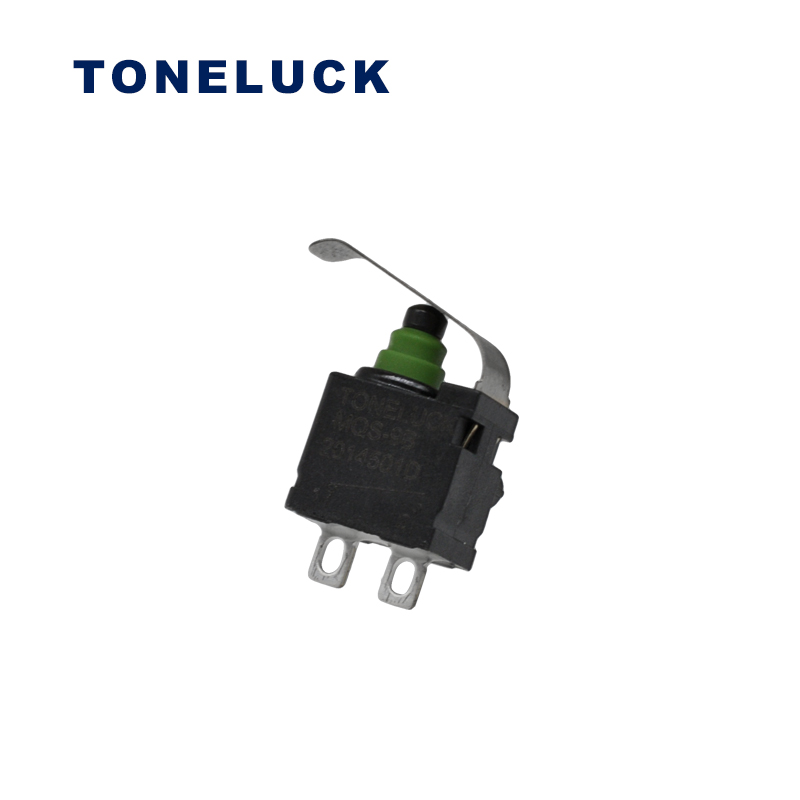

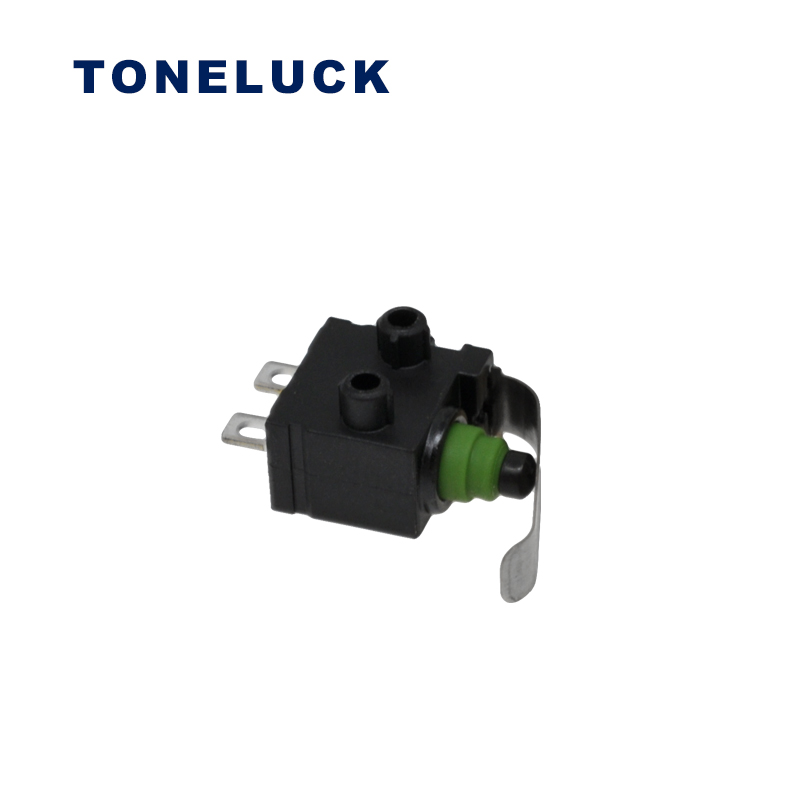

This is a miniature sub-miniature microswitch from Toneluck, which was founded in 1976. It is SPST NO type with a metal lever. 1~50mA/5~16VDC

  • MQS-9B series micro switch

  • Product name: MQS-9B1AD03-A2

  • Product applications: Smart homes such as multi-function telephones, large-scale mixing consoles, household gas appliances, washing machines, dishwashers, etc.; new energy vehicle charging guns, car air conditioning controllers, car door locks, car sensors, and other automotive markets.

SEND EMAIL TO US
DOWNLOAD AS PDF

Sub Miniature Microswitch Details Description

This is a miniature sub-miniature microswitch from the Toneluck group, which was founded in 1976. It is SPST NO type with a metal lever and solder terminal. Meanwhile, the electrical rating is 1~50mA/5~16VDC, which is certificated by UL, ENEC, CQC, and so on. The MQS-9B is a long-life micro switch, for example, the mechanical cycle is 500000cycle.

Besides, the actuator and the switch structure are sealed with a waterproof function. So, it can work in a wet working environment.

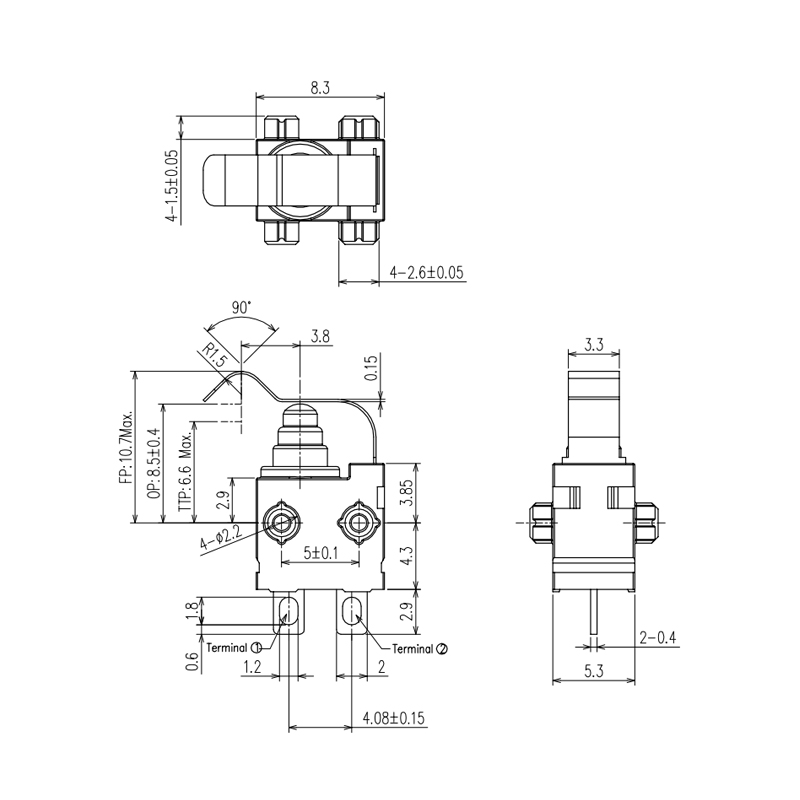

MQS-9B1AD03-A2 Microswitch Specification

Electrical Rating 10~50mA 12~24 VDC 250,000 cycles Min.
Operating Temp -40℃ to +85℃
Mechanical Life 500,000 cycles Min.
Contact Resistance 50mΩ Max. (initial)
Operating Force 150gf Max.
Insulation Resistance 100ΩM Min.
Dielectric Strength 500VAC for 60 ± 5 sec.
Housing: UL 94 HB Thermoplastic (Base)
UL 94 HB Thermoplastic (Cover)
