Model Temperature Rating Electrical Cycles (UL) Electrical Cycles (EN) Electrical Cycles (CQC) UL858
E41  40 T 85  0.1A 125/250VAC 6,000 cycles 50,000 cycles  50,000 cycles
E51 40 T 125  0.1A 125/250VAC 6,000 cycles 50,000 cycles  50,000 cycles
E61 40 T 150  0.1A 125/250VAC 6,000 cycles 50,000 cycles  50,000 cycles
E42 40 T 85 16(4)A 125/250VAC    50,000 cycles 50,000 cycles
16A 125/250VAC 6,000 cycles
1/2HP 125VAC 6,000 cycles
 3/4HP 250VAC 6,000 cycles
E52 40 T 125 10.1A 125VL (Tungsten) 6,000 cycles
0.4A 125VDC 6,000 cycles
0.2A 250VDC 6,000 cycles
E62 40 T 150 16(4)A 125/250VAC   50,000 cycles 50,000 cycles
10A 125/250VAC  100,000 cycles
1/2HP 125/250VAC  100,000 cycles
1A 30VDC  100,000 cycles

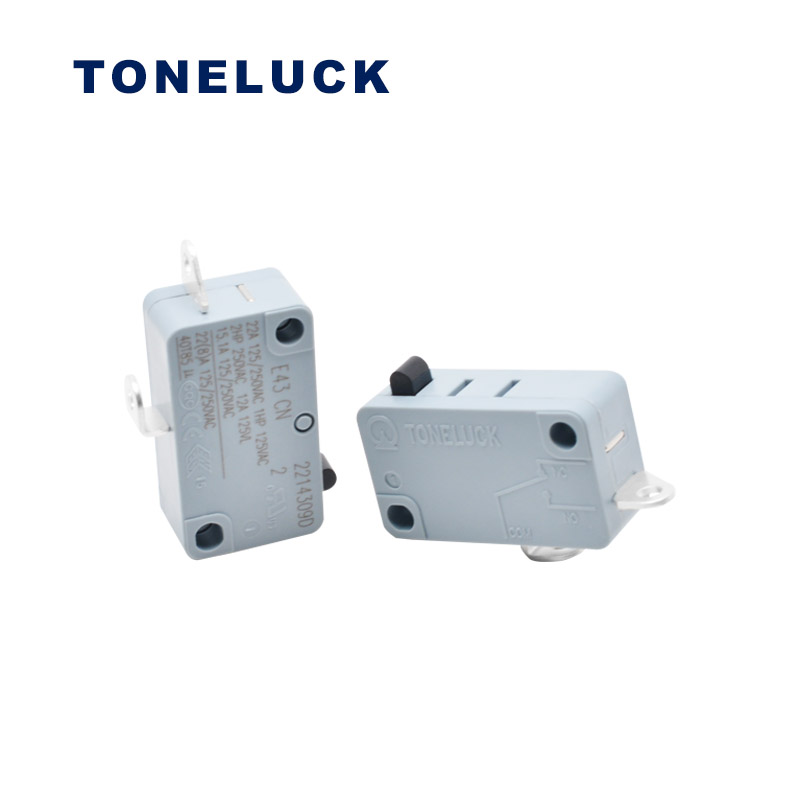

E43 40 T 85 22(8)A 125/250VAC   10,000 cycles 10,000 cycles
22A 125/250VAC 6,000 cycles
1HP 125VAC; 2HP 250VAC 6,000 cycles
E53 40 T 125 15.1A 125/250VAC 100,000 cycles
12A, 125VL 6,000 cycles

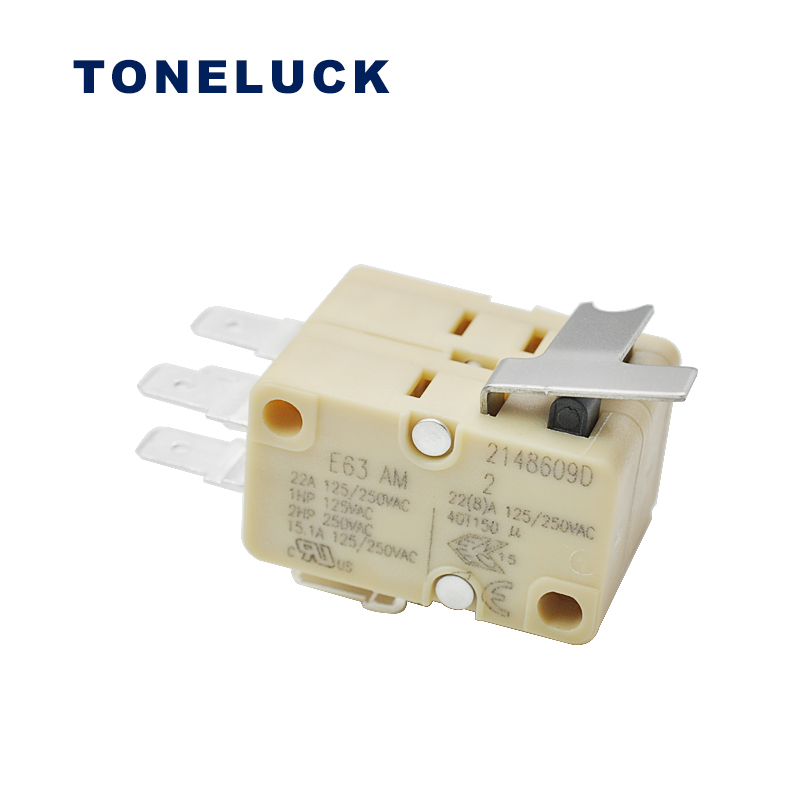

E63 40 T 150 22(8)A 125/250VAC   10,000 cycles 10,000 cycles
22A 125/250VAC 6,000 cycles
1HP 125VAC; 2HP 250VAC 6,000 cycles
15.1A 125/250VAC 100,000 cycles
E73 200C 15.1A 125/250VAC 100,000 cycles
22A 125/250VAC 6,000 cycles     6,000 cycles+9,400 cycles

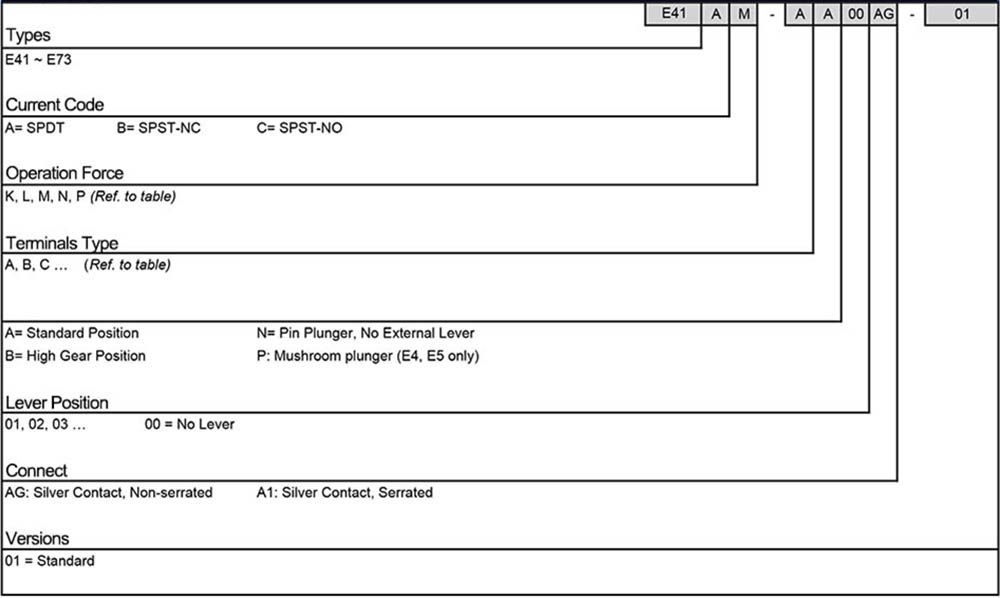

TONELUCK E SERIES MICROSWITCH ORDERING GUIDE
Toneluck E micro switch odering guide
