Short Description

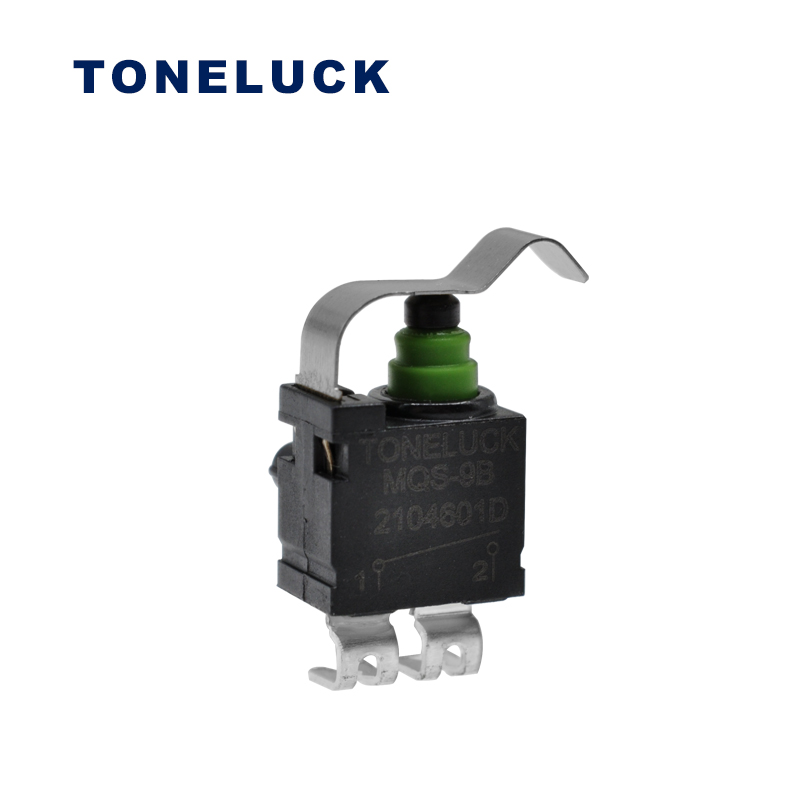

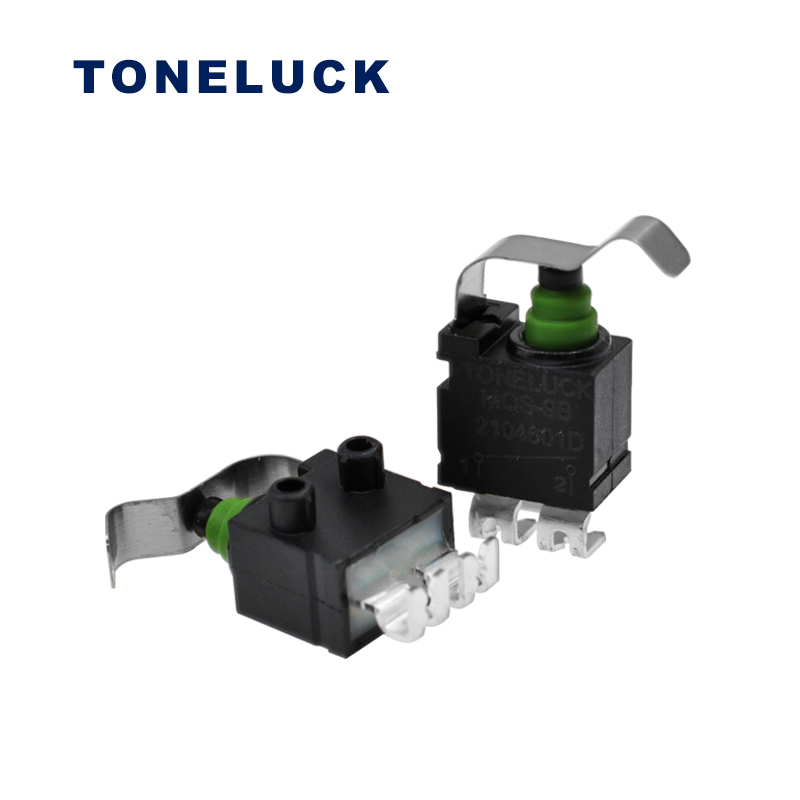

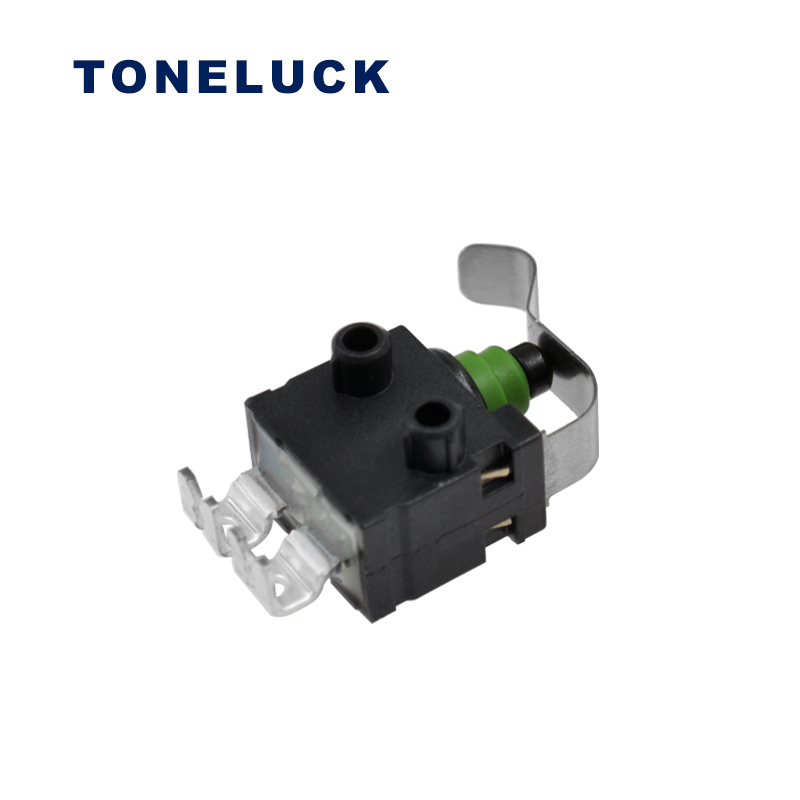

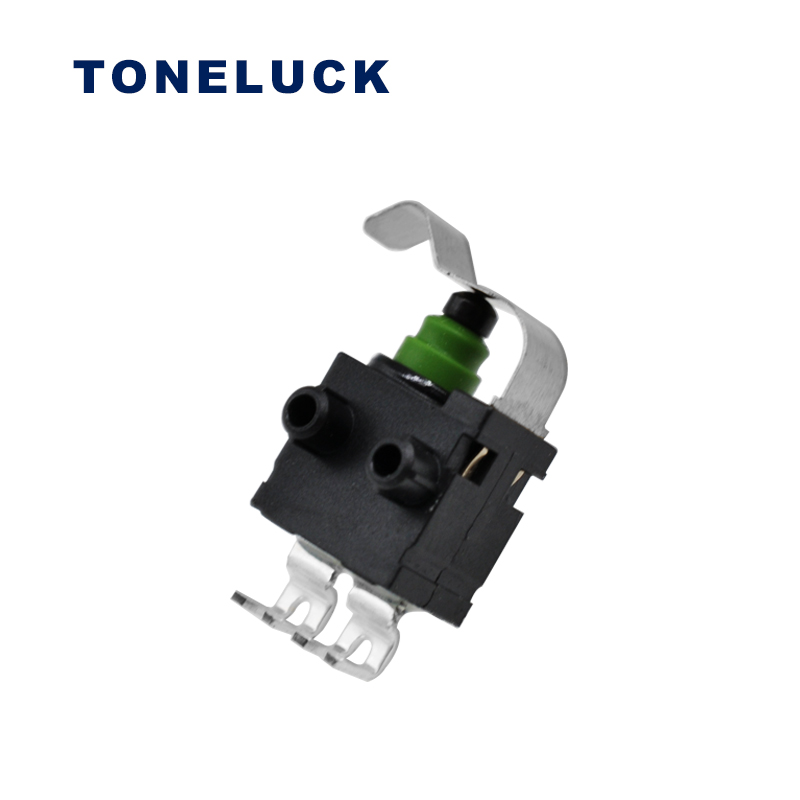

The MQS-9B1BT04-A2 is a miniature switch snap-action microswitch with left PCB terminal and IP67 waterproof level. 40T85 sealed construction.

  • MQS-9B Small Micro Switch

  • Product name: MQS-9B1BT04-A2

  • Product applications: multi-function telephones, large-scale mixers, household gas appliances, washing machines, dishwashers and other smart homes; new energy vehicle charging guns, car air conditioning controllers, car door locks, car sensors and other automotive markets.

SEND EMAIL TO US
DOWNLOAD AS PDF

Details Description

The MQS-9B1BT04-A2 is a mini snap-action micro switch with a left PCB terminal and IP67 waterproof function. Meanwhile, the switch has a sealed construction so that the dust and water can not enter the microswitch inside. Besides, as a small snap switch, the current is 1 to 50mA/5-16VDC with a long electrical cycle(300000 cycles), which is certificated by UL, ENEC, CQC, RoHS, etc.

Specification

Model No. MQS-9B1BT04-A2
Operating Temperature -40℃ to +85℃
Rating 1mA 5VDC 300000 cycles Min.

50mA 12VDC 200000 cycles Min.

50mA 16VDC 150000 cycles Min.

Mechanical Life 500,000 cycles Min.
Insulation Resistance 100ΩM Min.
Dielectric Strength 1000VAC for 60 ± 5 sec.
Housing UL 94V-0 Thermoplastic
Contact Silver
Lever Type Without Lever
Operation Force (OP) 7.1±0.2gf
