Short Description

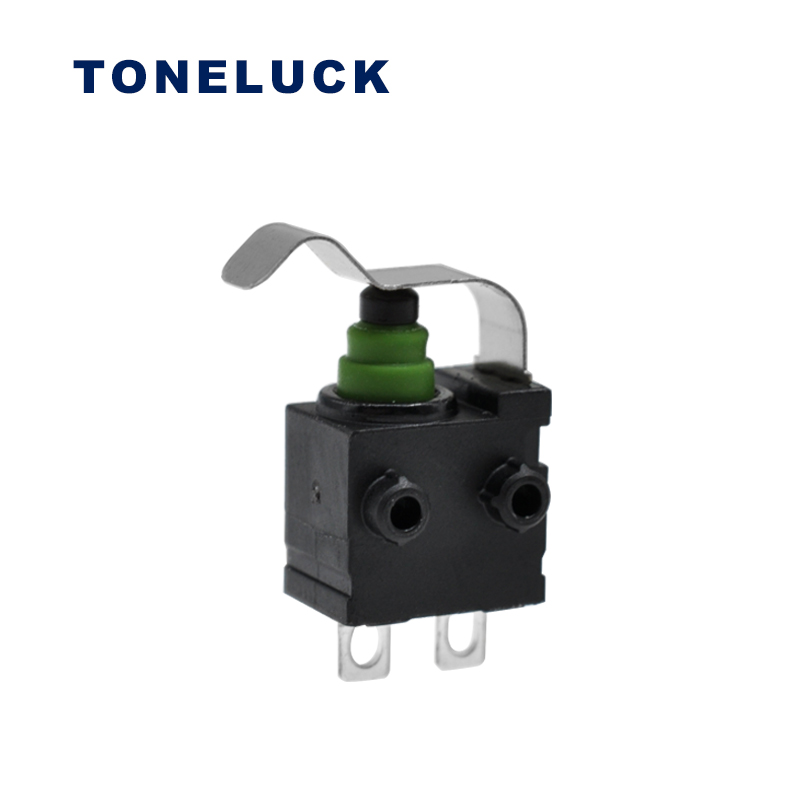

Toneluck MQS-9B1DD04-B1 is a normally open SPST subminiature micro switch with a metal lever and IP67 waterproof rate, 1~50mA/5~16VDC, 40T85, 300,000 cycles electrical rating.

  • MQS-9B Small Micro Switch

  • Product name: MQS-9B1DD04-B1

  • Product applications: multi-function telephones, large-scale mixers, household gas appliances, washing machines, dishwashers and other smart homes; new energy vehicle charging guns, car air conditioning controllers, car door locks, car sensors and other automotive markets.

SEND EMAIL TO US
DOWNLOAD AS PDF

Details Description

Toneluck MQS-9B1DD04-B1 is a normally open SPST subminiature snap action switch with a metal lever and IP67 waterproof rate, the electrical rating is 1~50mA/5~16VDC, 40T85, 300,000 cycles. Meanwhile, the mechanical cycle for this model is 500,000 cycles. Besides, it is small and high-quality, the length is only 8.3mm. So it can be installed in a small space even a wet environment.

What’s more, if you need any certification of our switch or factory such as the UL, ENEC, CQC, ISO, RoHS REACH, and so on, welcome to contact us to get them.

Specification

Model No. MQS-9B1DD04-B1
Operating Temperature -40℃ to +85℃
Rating 1mA 5VDC 300000 cycles Min.

50mA 12VDC 200000 cycles Min.

50mA 16VDC 150000 cycles Min.

Mechanical Life 500,000 cycles Min.
Insulation Resistance 100ΩM Min.
Dielectric Strength 1000VAC for 60 ± 5 sec.
Housing UL 94V-0 Thermoplastic
Contact Silver
Lever Type Without Lever
Operation Force (OP) 7.1±0.2gf
