Short Description

It is a normally open SPST micro switch with a metal lever, 2mm right pins, interlock solder terminals. Small size & waterproof, free sample is available before place an order.

  • MQS-9B Small Micro Switch

  • Product name:MQS-9B1CD04-B1

  • Product applications: multi-function telephones, large-scale mixers, electric power tools, new energy vehicle charging guns, car air conditioning controllers, car door locks, car sensors, other automotive markets, and so on.

SEND EMAIL TO US
DOWNLOAD AS PDF

Details Description

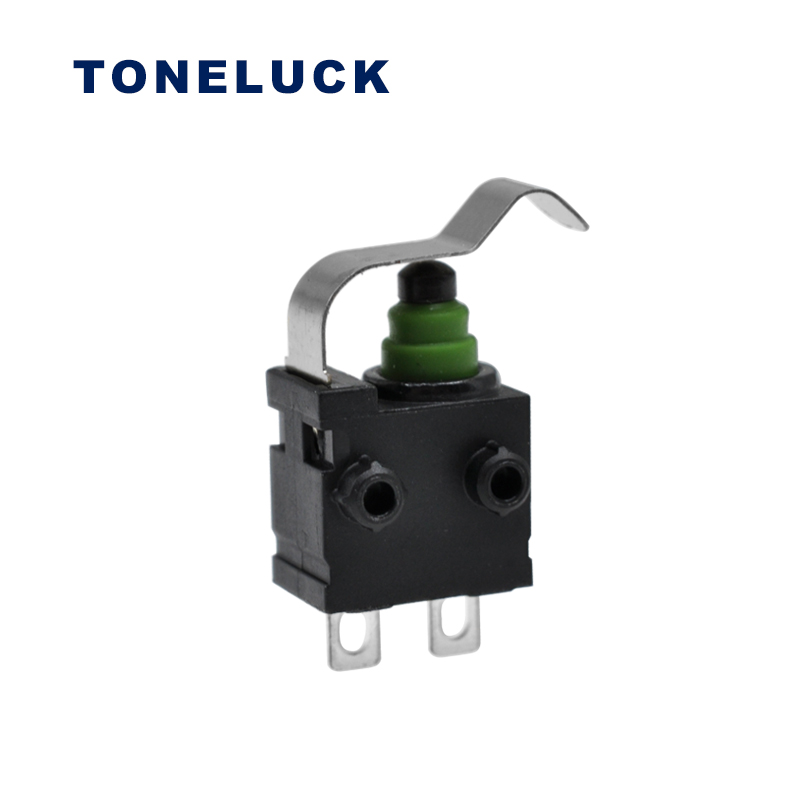

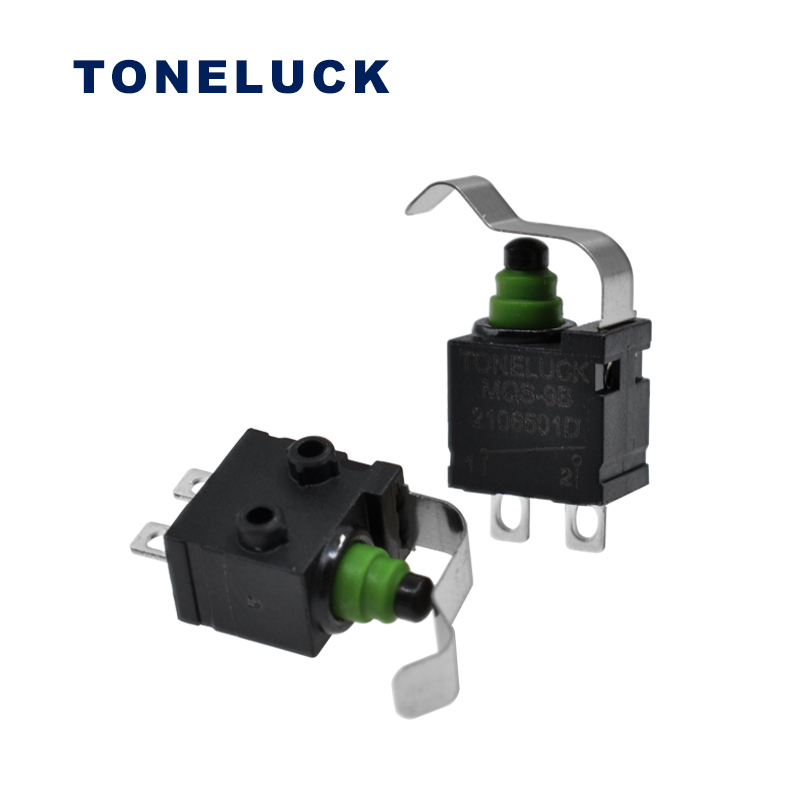

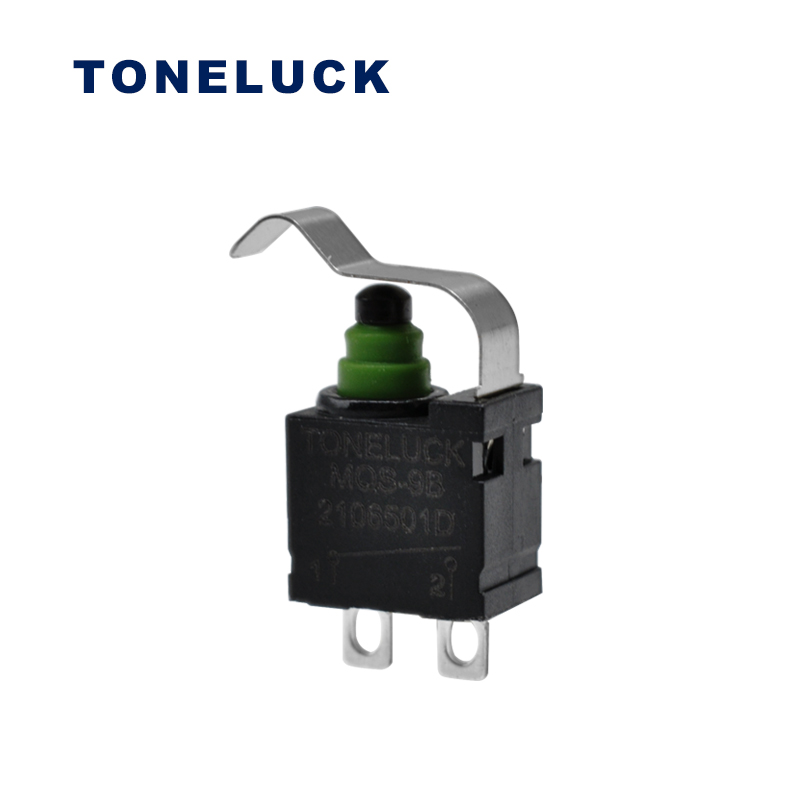

Firstly, the MQS-9B1CD04-B1 is a single pole single throw type NO micro switch, which with a metal lever, 2mm right pins, interlock solder terminals.

Secondly, the microswitch is not only in small size but also has the IP67 waterproof function. So the switch can work in the wet environment, for example, it can work in automobile equipment or outdoor electric gardening tool.

Thirdly, this model has 300,000 electrical cycles with the certification of UL, ENEC, CQC. Meanwhile, the mechanical life is 500,000 cycles. Which is a long service life in the mini micro-switch market

Besides, if you need other parameters or have other requirements, please send us a message, we will reply to you with a solution. Free samples are available before place an order.

Specification

Model No. MQS-9B1CD04-B1
Operating Temperature -40℃ to +85℃
Rating 1mA 5VDC 300000 cycles Min.

50mA 12VDC 200000 cycles Min.

50mA 16VDC 150000 cycles Min.

Mechanical Life 500,000 cycles Min.
Insulation Resistance 100ΩM Min.
Dielectric Strength 1000VAC for 60 ± 5 sec.
Housing UL 94V-0 Thermoplastic
Contact Silver
Lever Type Without Lever
Operation Force (OP) 7.1±0.2gf
