V3 Snap Action Limit Switch Ordering Guide
Series Circuitry  Terminal Type Operation Force Lever Type Contact Plating Version
V31 A=SPDT Type A = Solder Terminal F1= 80+/-20 gf 01, 02, 03… S= silver contact 01 = Standard
V34 B=SPST-NC Type B: PCB Terminal (Right Bent) F2= 130+/-30 gf 00= Pin plunger
V35 C=SPST-NO Type C: PCB Terminal (Left Bent) F3= 160+/-30 gf MH= Mushroom plunger
V36 Type D = Quick Connect Terminal F4= 230+/-40 gf
V37 Type E: Quick Connect Terminal (Right Bent)
V38 Type P = PCB Terminal
V39
Specification
Series Temperature Rating Electrical Cycles (UL)  Electrical Cycles (UL)  Electrical Cycles (CQC)
V31 40T85 3A 125/250VAC 6,000 cycles 50,000 cycles 50,000 cycles
V34 40T125 10(2)A 125/250VAC 10,000 cycles 10,000 cycles
V35 40T85 10(2)A 125/250VAC 10,000 cycles 10,000 cycles
V36 40T125 0.1A 125/250VAC 50,000 cycles 50,000 cycles
V37 40T85 0.1A 125/250VAC 50,000 cycles 50,000 cycles
V38 40T125 5A 125/250VAC 6,000 cycles 50,000 cycles 50,000 cycles

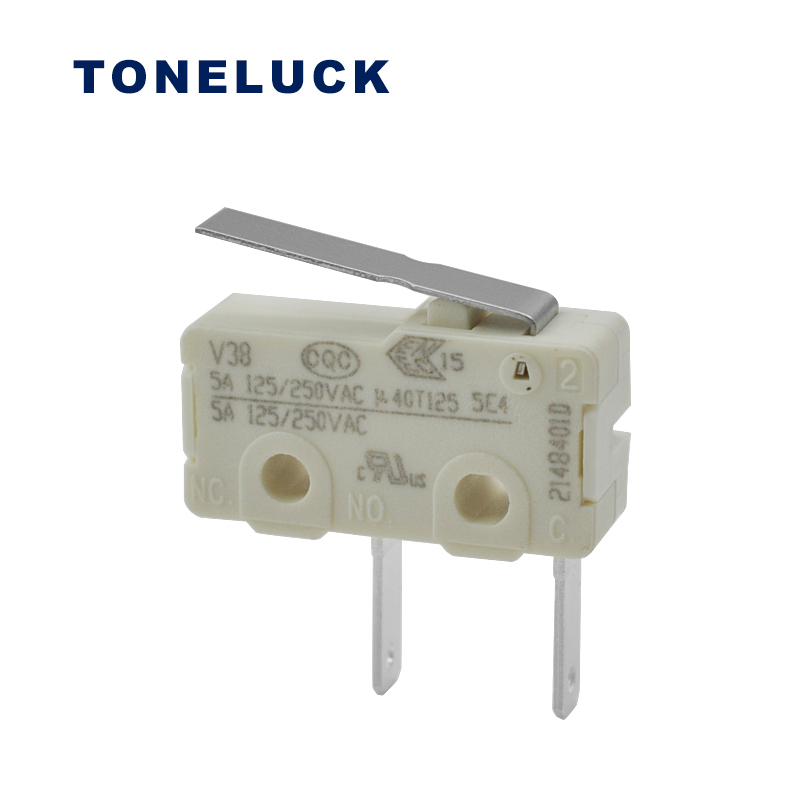

V39 40T85 5A 125/250VAC 6,000 cycles 50,000 cycles 50,000 cycles
Mechanical Life 1,000,000 cycles
Insulation Resistance 100ΩM Min.
Dielectric Strength 1000VAC for 60 +/- 5 sec
Contact Resistance 50mΩ Max. (initial)
Housing UL 94V0 Thermoplastic Suitable for IEC 60335-1 Ed 4
Contact Plating Sliver
