Short Description

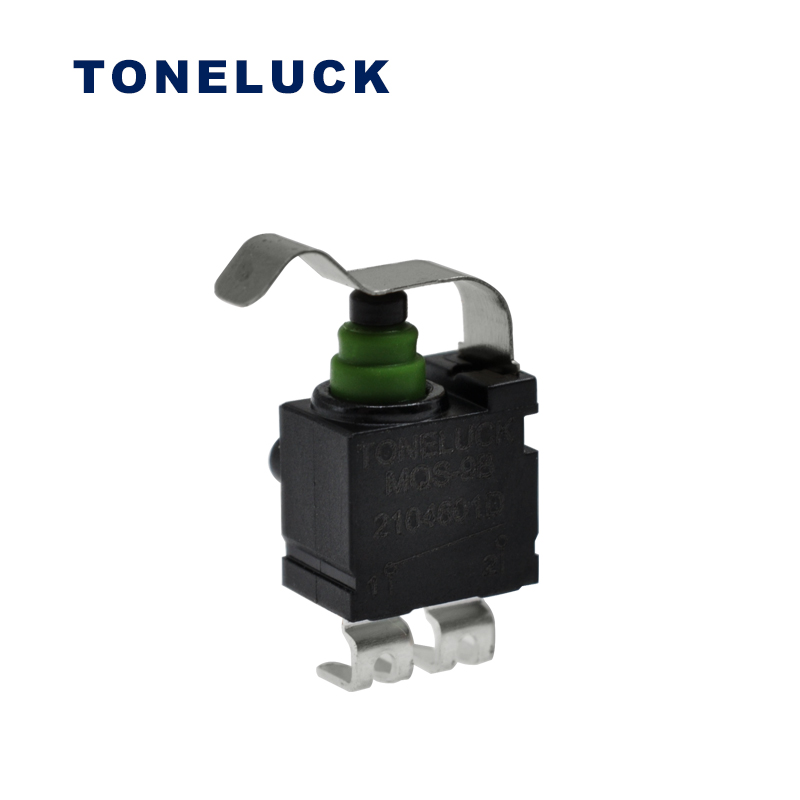

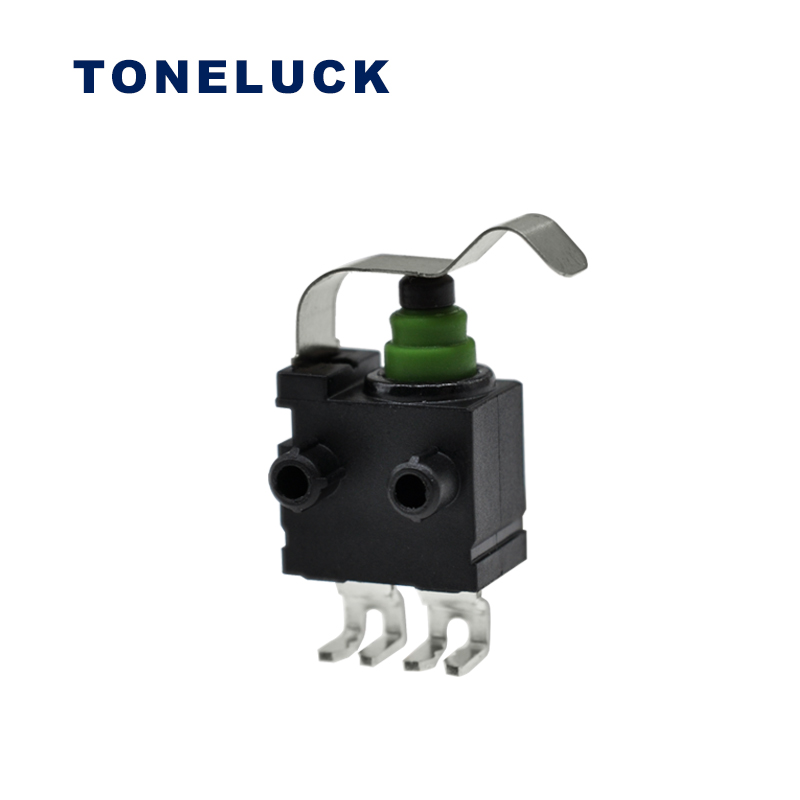

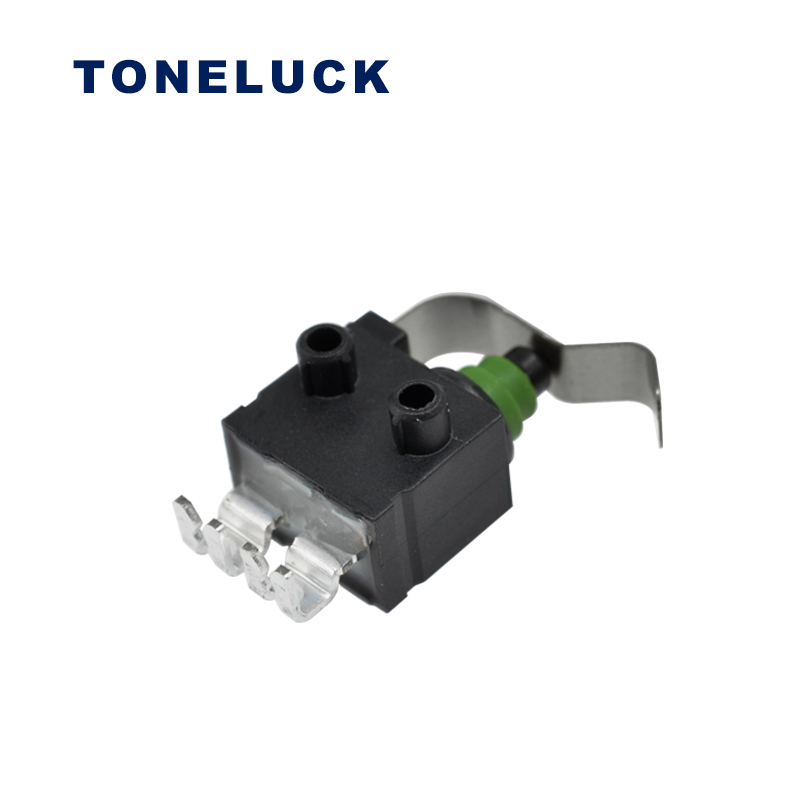

Toneluck MQS-9B small size waterproof microswitch with lever and PCB terminal. Normally open SPST 1-50mA 5-16VDC rating with UL, ENEC, CQC certification. The samples are available before place an order.

  • MQS-9B series micro switch

  • Product name: MQS-9B1AR04-A2

  • Product applications: multi-function telephones, large-scale mixers, household gas appliances, washing machines, dishwashers and other smart homes; new energy vehicle charging guns, car air conditioning controllers, car door locks, car sensors and other automotive markets.

SEND EMAIL TO US
DOWNLOAD AS PDF

Details Description

Toneluck MQS-9B small size waterproof micro switch with lever and PCB terminal. Normally open SPST 1-50mA 5-16VDC rating with UL, ENEC, CQC certification. In fact, this is a tinny switch with an IP67 protection level, the length of the switch is 8.3mm.

Besides actuating the micro-switch vertically, the switch could be operated by cam-shaped or chamfered sliding actuators with an approximate value of max. 40°. Please refer to the technical specification for the specified conditions.

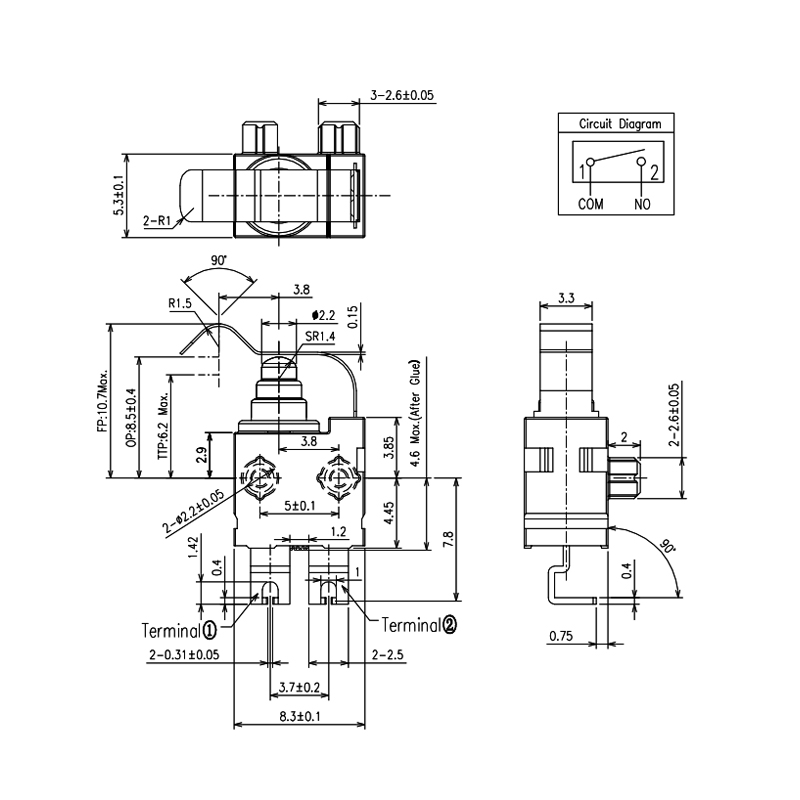

Specification

Model No. MQS-9B1AR04-A2
Operating Temperature -40℃ to +85℃
Rating 1mA 5VDC  300,000 cycles Min.

50mA 12VDC  200000 cycles Min.

50mA 16VDC  150000 cycles Min.

Mechanical Life 500,000 cycles Min.
Insulation Resistance 100ΩM Min.
Dielectric Strength 1000VAC for 60 ± 5 sec.
Housing UL 94V-0 Thermoplastic
Contact Silver
Lever Type Lever
Operation Force (OP) 8.5±0.4mm
