Short Description

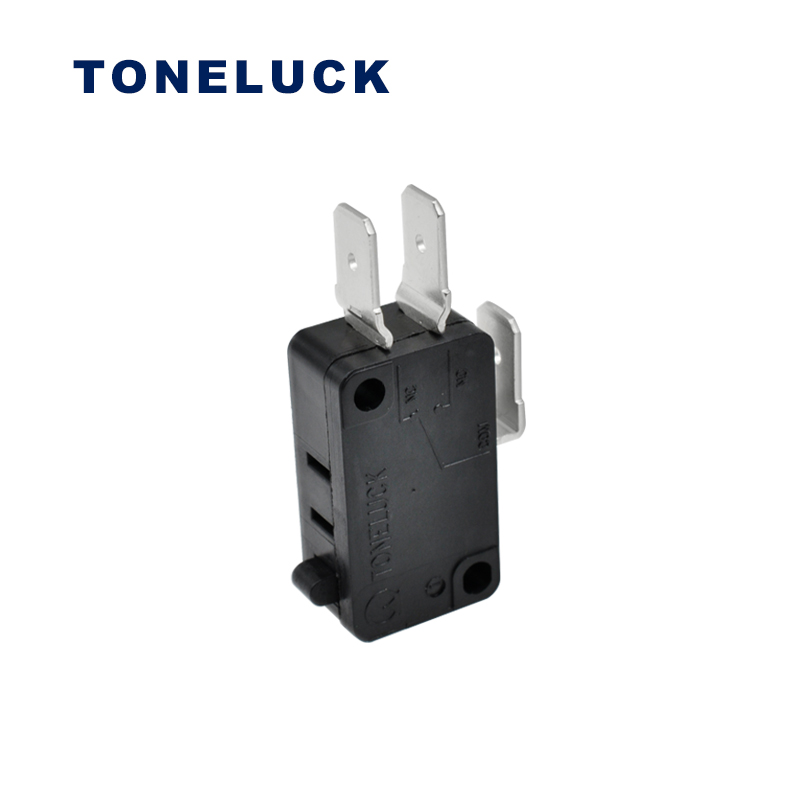

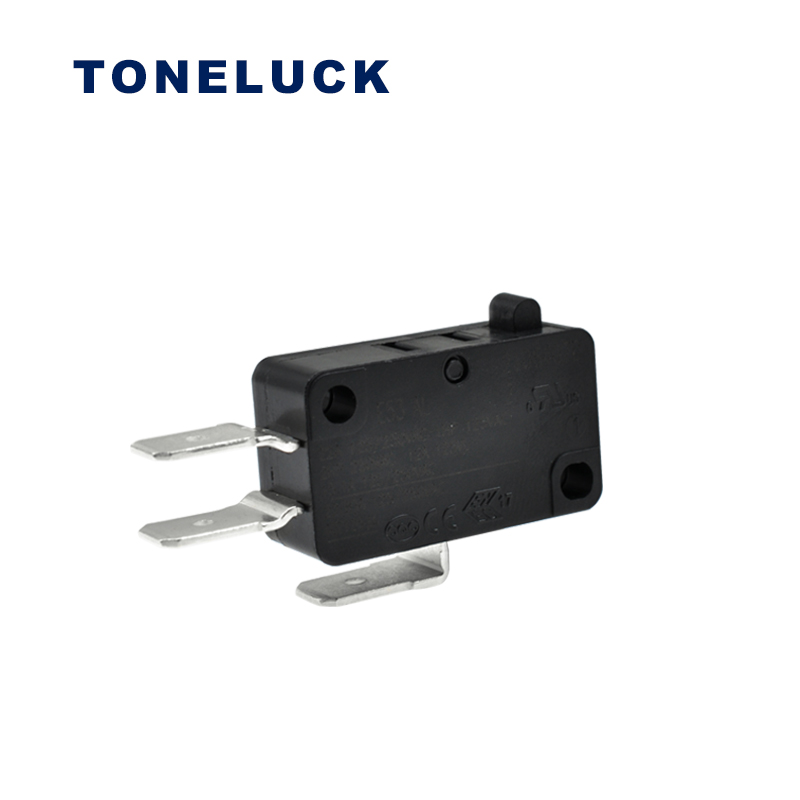

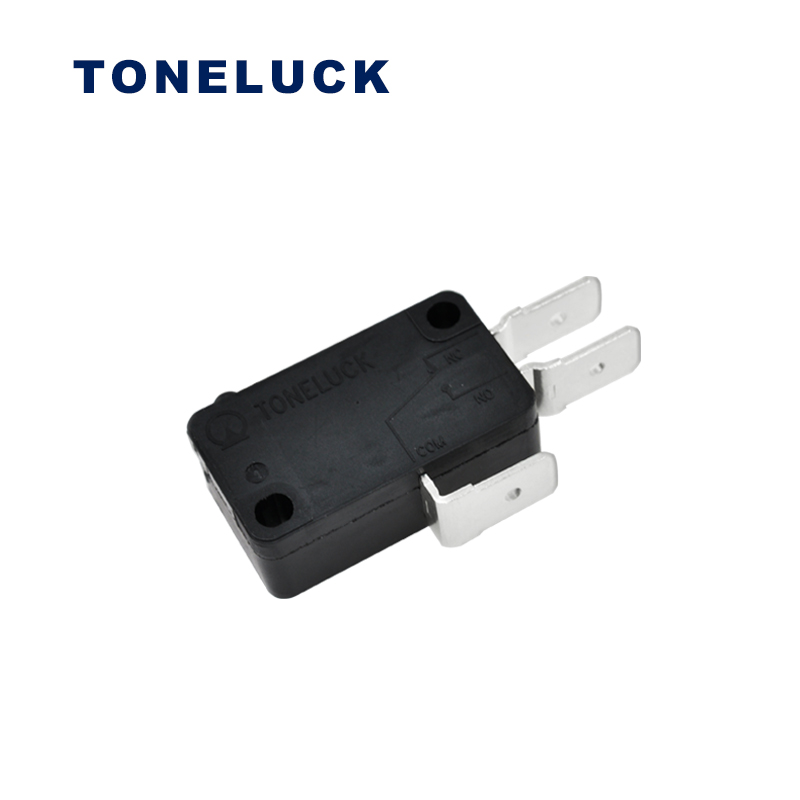

Toneluck L53 Long-life wireless micro switch limit 15A 125/250VAC 40T125 with 1 Million cycles, which is a single pole double throw type switch without lever.

  • E Micro ON OFF Switch

  • Product name: E53AL-AN00AG

  • Product applications: Smart homes such as multi-function telephones, large-scale mixing consoles, household gas appliances, washing machines, dishwashers, etc.; new energy vehicle charging guns, car air conditioning controllers, car door locks, car sensors, and other automotive markets.

SEND EMAIL TO US
DOWNLOAD AS PDF

Details Description

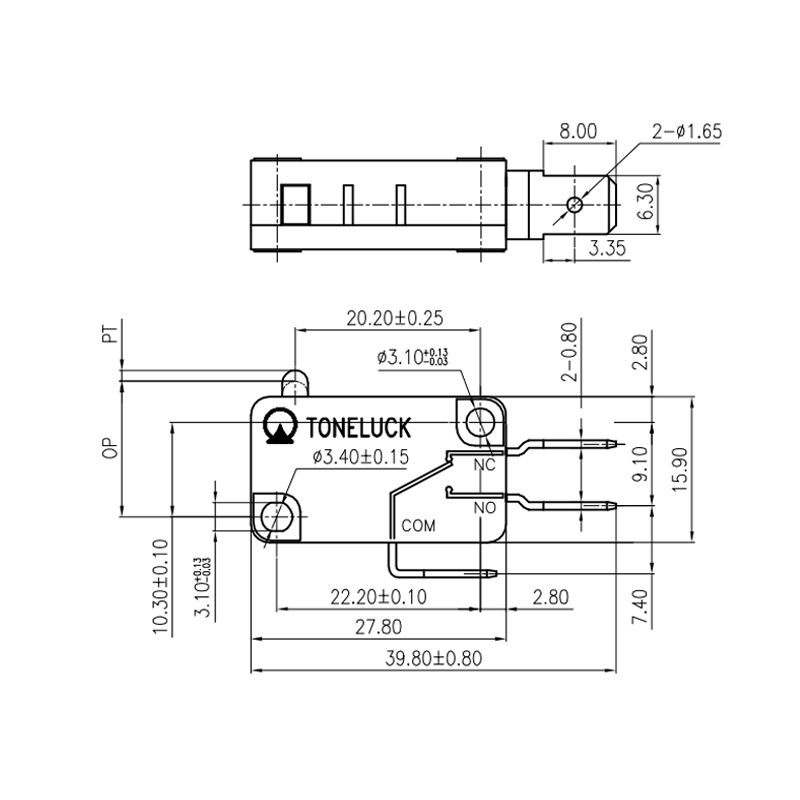

The L53 is a Long-life wireless micro switch limit 15A 125/250VAC 40T125 with 1 Million cycles, which is a single pole double throw type switch without a lever. It can be used in many kinds of products and equipment. Welcome to contact us to get more details.

Specification

Electrical Rating 10~50mA 12~24 VDC 250,000 cycles Min.
Operating Temp -40℃ to +85℃
Mechanical Life 500,000 cycles Min.
Contact Resistance 50mΩ Max. (initial)
Operating Force 150gf Max.
Insulation Resistance 100ΩM Min.
Dielectric Strength 500VAC for 60 ± 5 sec.
Housing: UL 94 HB Thermoplastic (Base)
UL 94 HB Thermoplastic (Cover)
