Micro Float Level Switch Short Description
Toneluck E52 is a Micro Float Level Switch that has 3 terminals and a metal lever with 16A 40T125 certificated rating. The free sample and datasheet are available.
E Micro ON OFF Switch
Product name: E52AP-BA03AG-01
Product applications: Smart homes such as multifunctional telephones, large mixers, household gas appliances, washing machines, dishwashers, etc.; new energy vehicle charging guns, car air conditioning controllers, car door locks, car sensors, and other automotive markets.
Micro Float Level Switch Details Description

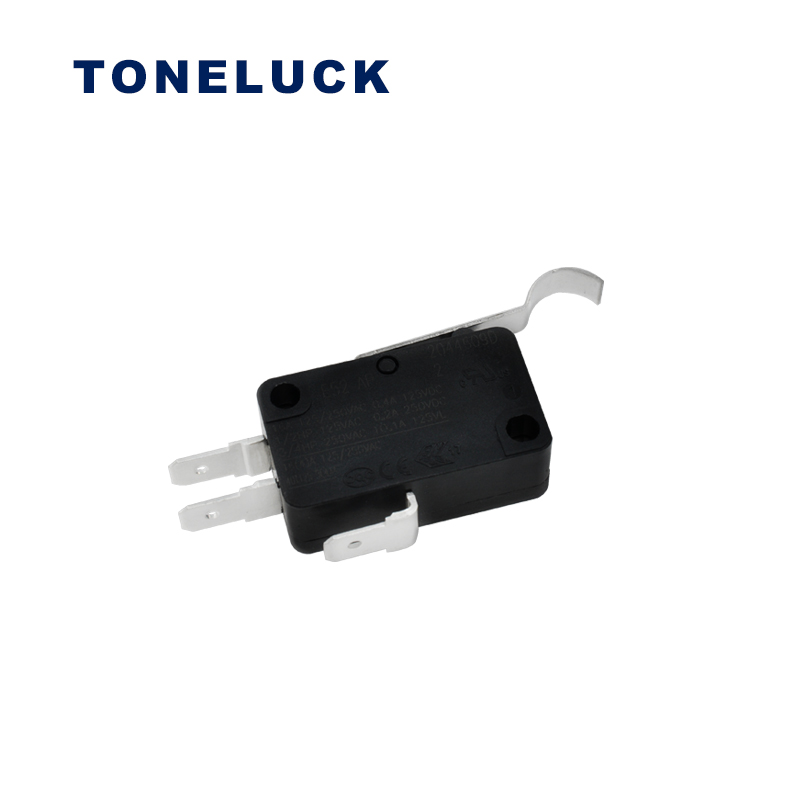

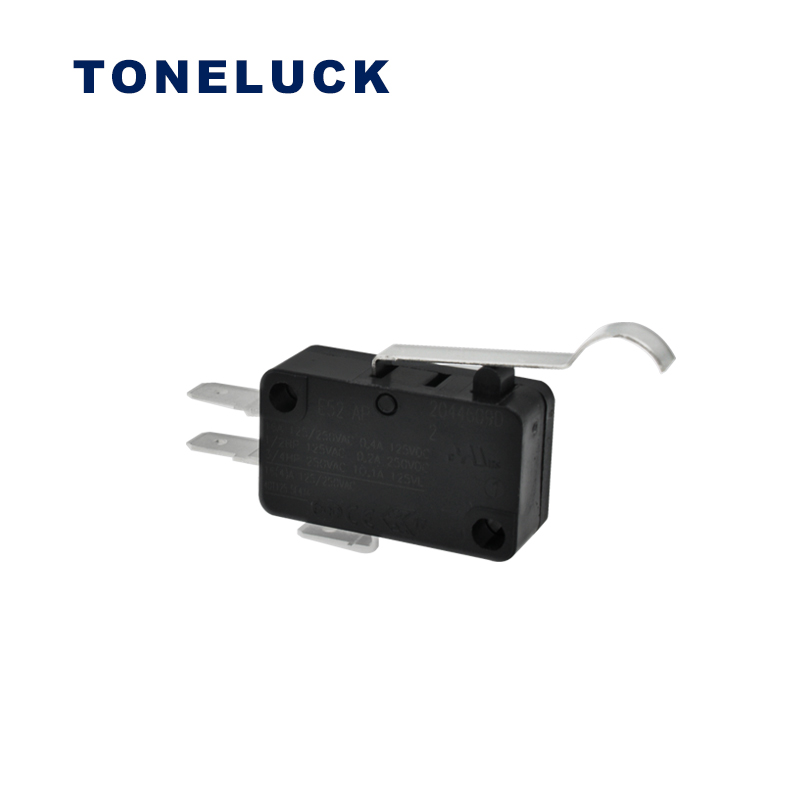

Toneluck E52AP-BA03AG-01 is a Micro Float Level Switch that has 3 terminals and a metal lever with 16A 125/250VAC 40T125 certificated rating by UL, cUL, ENEC, and CQC. Because of its rating, it is suitable for most household appliances
The free samples and datasheets are available. Welcome to contact us to have more information.
Micro Level Switch Specification
| Electrical Rating | 10~50mA 12~24 VDC 250,000 cycles Min. |
| Operating Temp | -40℃ to +85℃ |
| Mechanical Life | 500,000 cycles Min. |
| Contact Resistance | 50mΩ Max. (initial) |
| Operating Force | 150gf Max. |
| Insulation Resistance | 100ΩM Min. |
| Dielectric Strength | 500VAC for 60 ± 5 sec. |
| Housing: | UL 94 HB Thermoplastic (Base) UL 94 HB Thermoplastic (Cover) |
