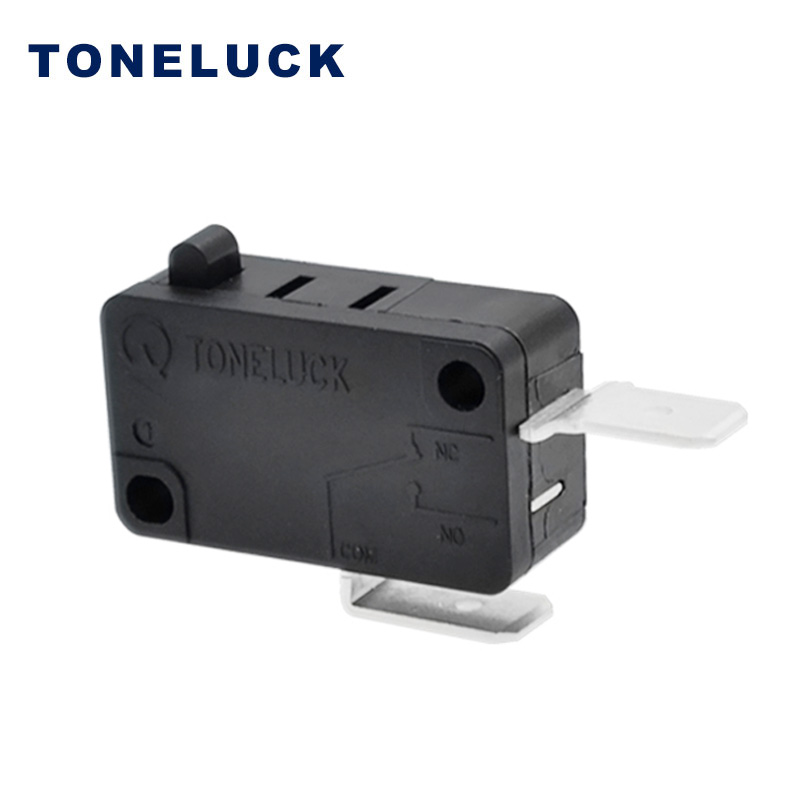

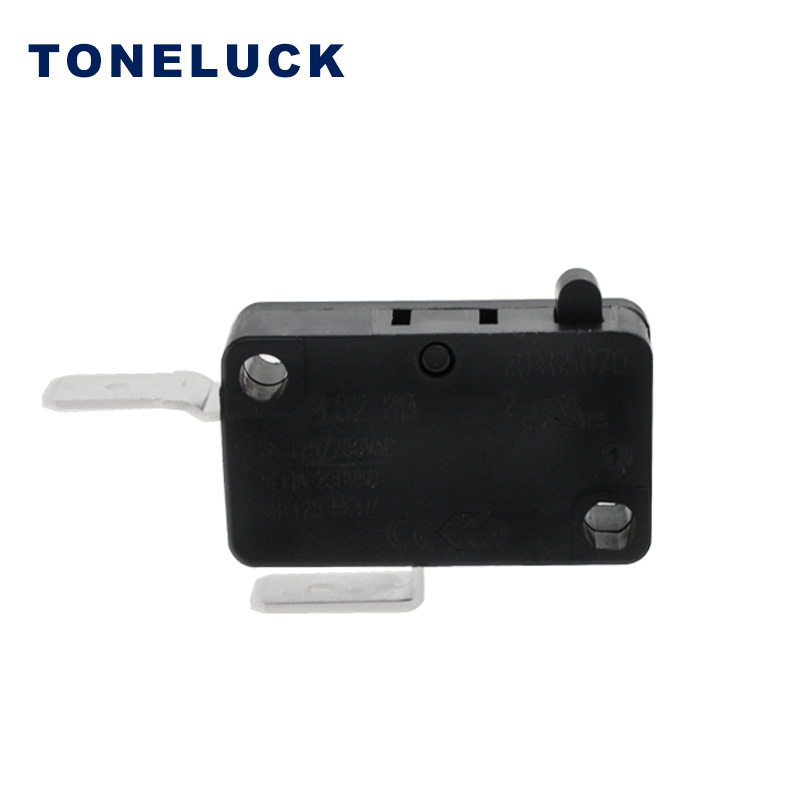

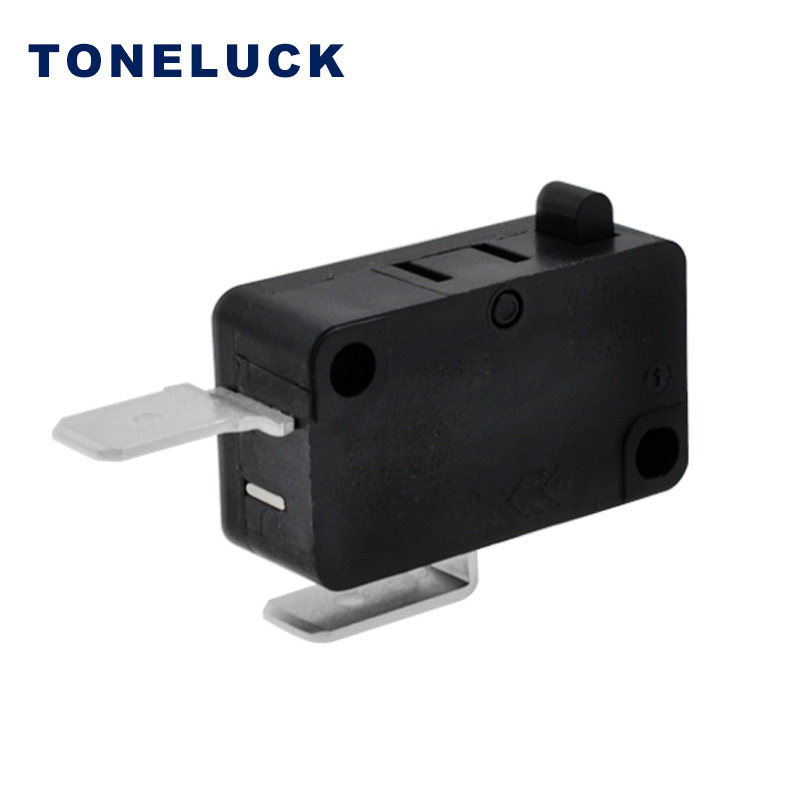

Light Force Microswitch
This is a low force micro switch in 8-15gf with a 2 terminals NC circuit in 5A 250VAC max. rating. Wide range temperature: 40T125 & Long life: 1000000 cylces!
Product MPN: L52BD-AN00A1-01
Product applications: Smart homes such as multifunctional telephones, large mixers, household gas appliances, washing machines, dishwashers, etc.; new energy vehicle charging guns, car air conditioning controllers, car door locks, car sensors, and other automotive markets.
Low Force Micro Switch Details Description
The L52BD-AN00A1-01 is an 8gf to 15gf low force micro switch, which can be used in air pressure switches or other devices that requires light force operation. Unlike the other microswitch, the L series has performance is so perfect that is the accurate DT. This is why the Toneluck L series is so stable in the application. It is not easy to control this parameter but we broke it out because we have a strict production system and many German engineers.
Meanwhile, the switch has 2 terminals NC circuit and its rating is 5A 125/250VAC which is approved by the UL ENEC and CQC. It is not only long-life but has enough certifications for you. Wide range temperature: 40T125 & Long life: 1000000 cycles!

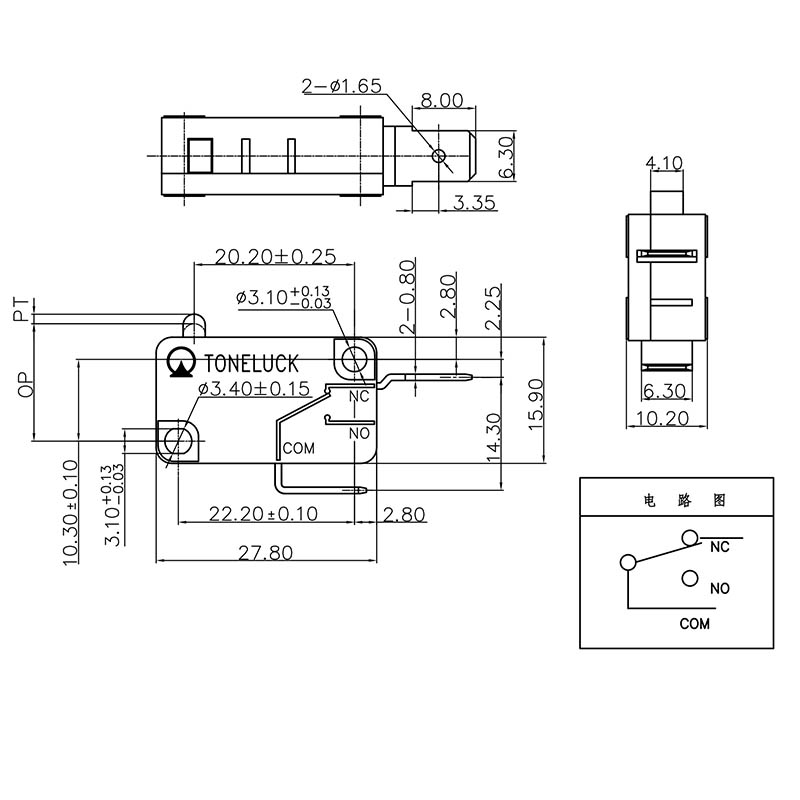

L52BD-AN00A1-01 Specification
| Model No. | L52BD-AN00A1-01 |
| Operating Temperature | -40℃ to +125℃ (40T125) |
| Rating | 5A 125/250VAC 100,000 cycles Min. 5A 125/250VAC 6000 cycles Min. |
| Mechanical Life | 100,000 cycles Min. |
| Insulation Resistance | 100ΩM Min. |
| Dielectric Strength | 1000VAC for 50 ± 60 sec. |
| Housing | UL 94V-0 Thermoplastic |
| Contact | Silver |
| Lever Type | without lever |
| Operation Force (OP) | 8 to 15 gf |
| Release Force (RP) | 6gf Max. |
| Pre-Travel (PT) | 1.2 mm Max. |
| Over- Travel (OT) | 1.25 mm Min. |
| Movement-Differential (DT) | 0.3mm Max. |
| Operation Position (OP) | 14.7±0.5 mm |
