Short Description

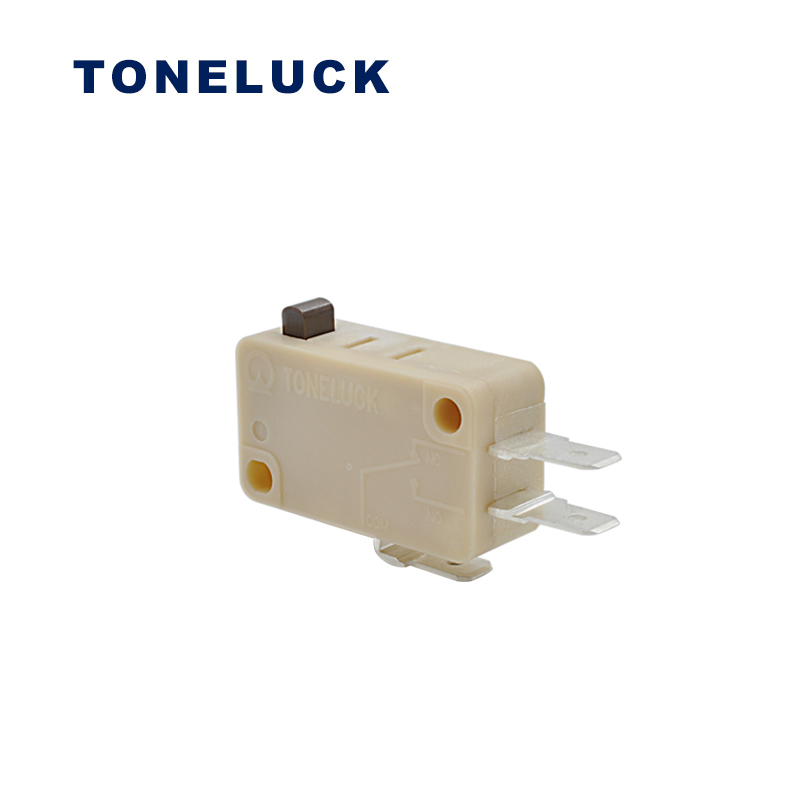

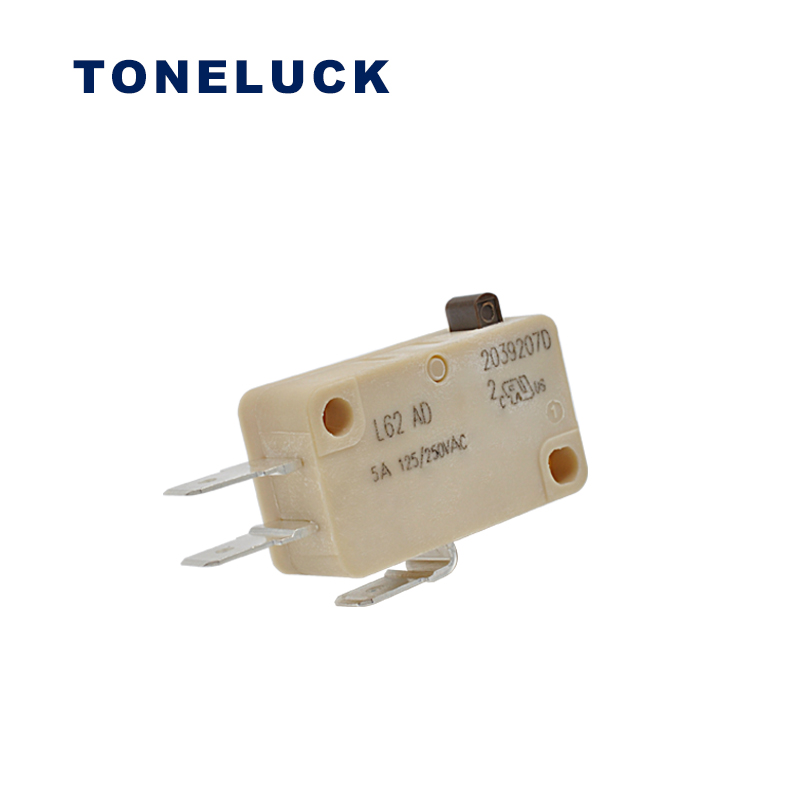

The L62AD-BN00A1-01 microswitch has SPDT, SPST-NO, SPST-NC for options, and this type is the high temperature can work in 150℃.

  • L Snap Action Micro Switch

  • Product name:L62AD-BN00A1-01

  • Product applications:Smart homes such as multifunctional telephones, large mixers, household gas appliances, washing machines, dishwashers, etc.; new energy vehicle charging guns, car air conditioning controllers, car door locks, car sensors, and other automotive markets.

SEND EMAIL TO US
DOWNLOAD AS PDF

Details Description

The L62AD-BN00A1-01 micro switch has SPDT, SPST-NO, SPST-NC for options, and this type is the high temperature can work at 150℃ because of the specifical high temperature resistance material shell. Meanwhile, it has the certification of ENEC, UL, cUL, and CQC to ensure the switch can be used all over the world. The rating is 5A 125/250VAC with electrical life which is 100000 cycles at least. So, the switch belongs to the long-life types.

Specification

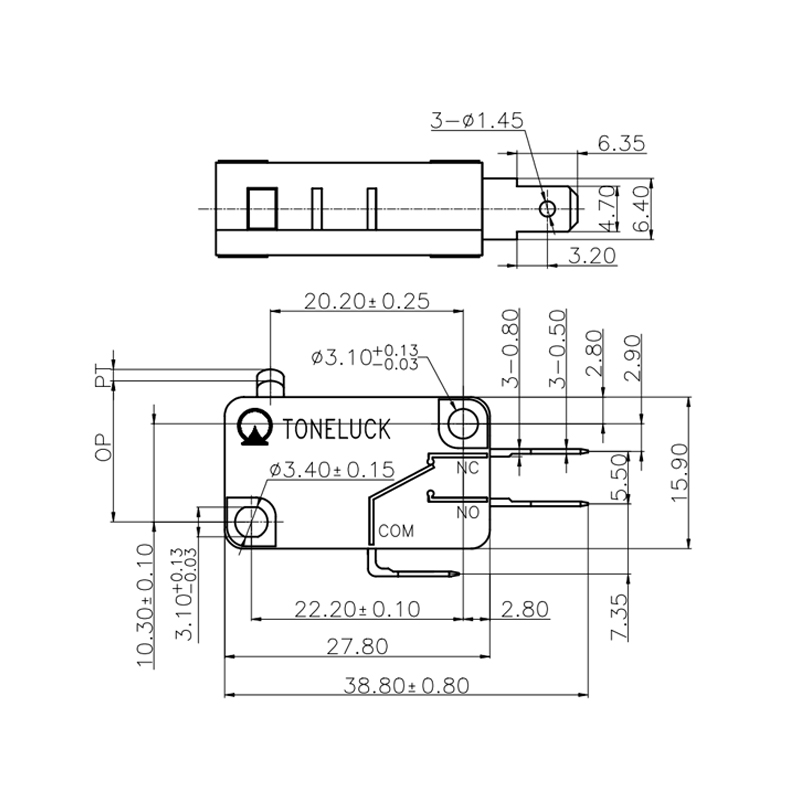

Model No. L62AD-BN00A1-01
Operating Temperature -40℃ to +150℃
Rating 5A 125/250VAC 100,000 cycles Min.

5A 125/250VAC  6000 cycles Min.

Mechanical Life 1000,000 cycles Min.
Insulation Resistance 100ΩM Min.
Dielectric Strength 1000VAC for 60 ± 5 sec.
Housing UL 94V-0 Thermoplastic
Contact Silver
Lever Type Without Lever
Operation Force (OP) 7~15gf
Pre-Travel (PT) 1.2mm Max.
