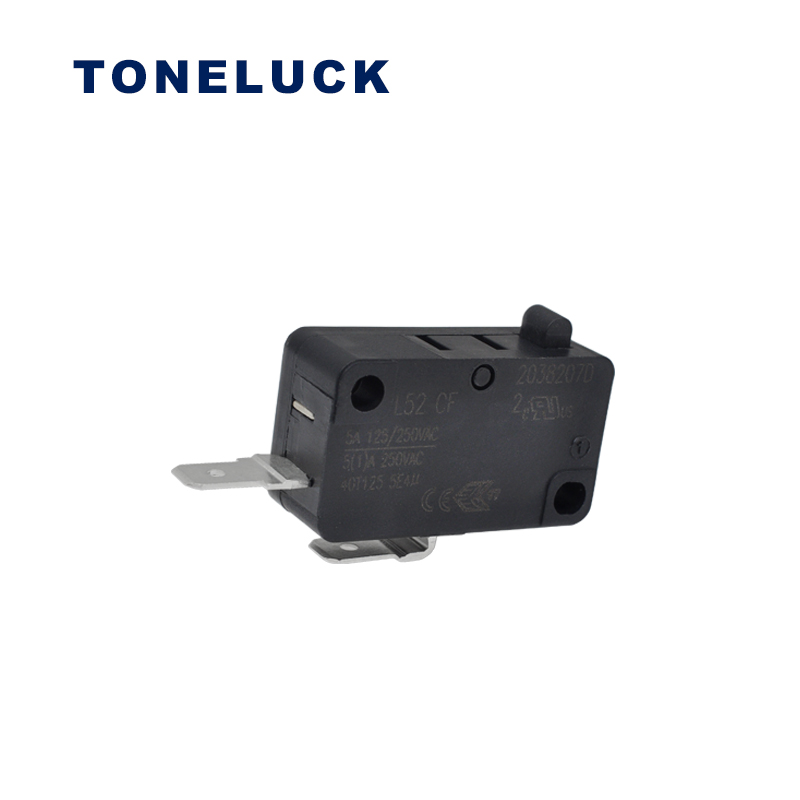

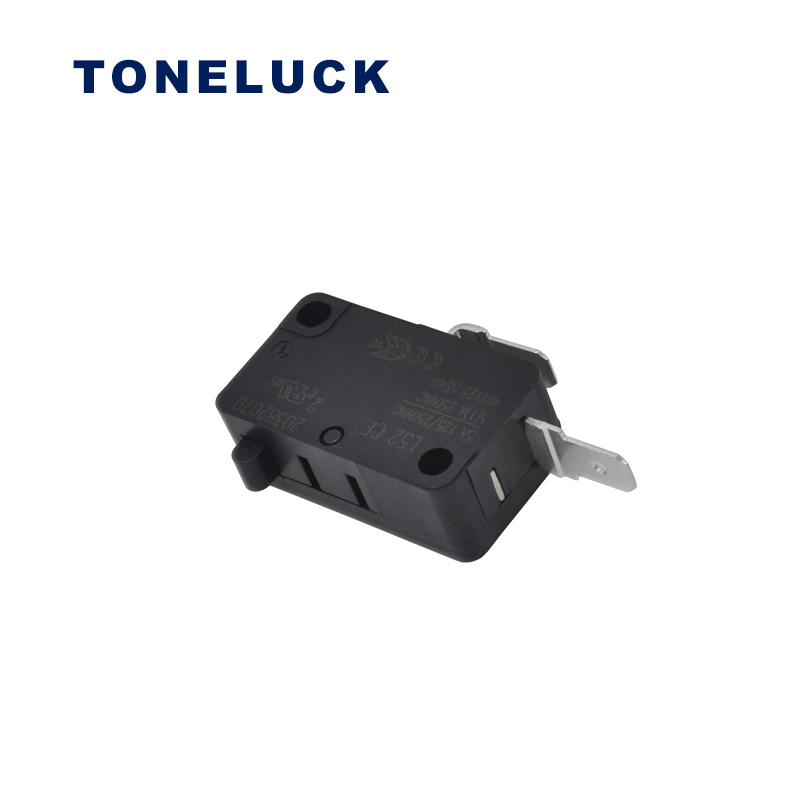

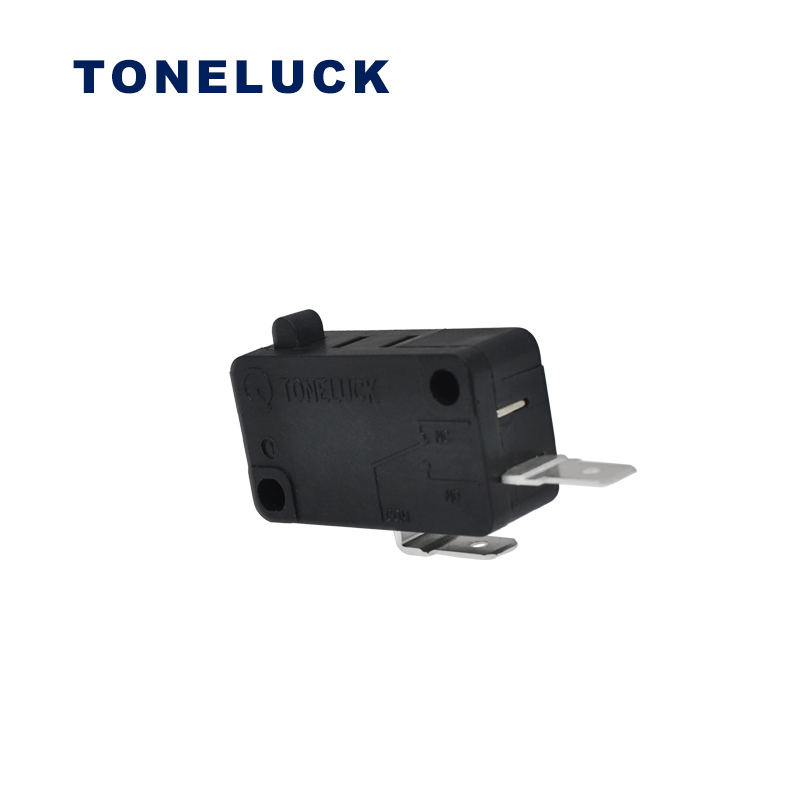

L52CF-BN00A1-01 L52CF-BN00A1-01
L52CF-BN00A1-01 L52CF-BN00A1-01
L52CF-BN00A1-01 L52CF-BN00A1-01
L52CF-BN00A1-01 L52CF-BN00A1-01
L52CF-BN00A1-01 L52CF-BN00A1-01

Short Description

The L52CF-BN00A1-01 is a micro switch with 5A 125V/ 250VAC UL1054 100000 cycles certificated rating. And it is 13-25gf light force, which is suitable for the water heater, Boiler.

  • L Snap Action Micro Switch

  • Product name: L52CF-BN00A1-01 Microswitch 5A 250VAC

  • Product applications:Smart homes such as multifunctional telephones, large mixers, household gas appliances, washing machines, dishwashers, etc.; new energy vehicle charging guns, car air conditioning controllers, car door locks, car sensors, and other automotive markets.

SEND EMAIL TO US
DOWNLOAD AS PDF

Details Description

The L52CF-BN00A1-01 is a microswitch with 5A 125V/ 250VAC UL1054 100000 cycles certificated rating. And it is 13-25gf light force and normally open, which is suitable for the water heater, boiler. Meanwhile, we also have different parameters for customer options. Such as the lever types, operation force,  terminal types, and so on. The samples are available before place an order.

Specification

Model No. L52CF-BN00A1-01
Operating Temperature -40℃ to +125℃
Rating 5A 125/250VAC (UL, cUL)  100,000 cycles Min.

5(1)A 250VAC (ENEC)  50000 cycles Min.

Mechanical Life 1000,000 cycles Min.
Insulation Resistance 100ΩM Min.
Dielectric Strength 1000VAC
Housing UL 94V-0 Thermoplastic
Contact Silver
Lever Type Without Lever
Operation Force (OP) 13~25gf
Pre-Travel (PT) 1.2mm Max.
Over- Travel (OT) 1.25mm Min.
Movement-Differential (DT) 0.4mm Max.
Operation Position (OP) 14.7±0.5 mm
