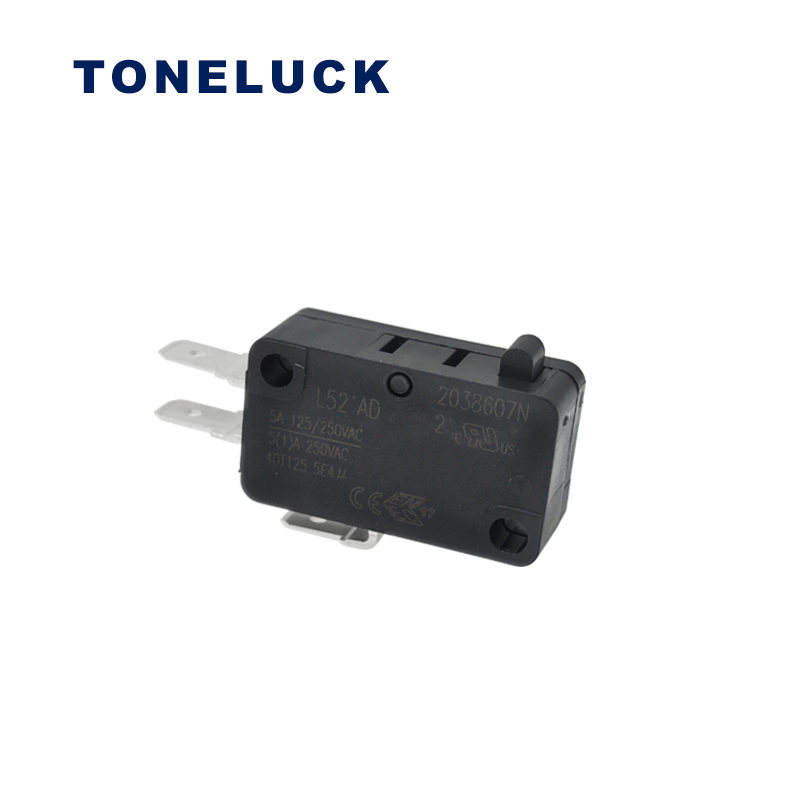

micro switch for microwave 2 micro switch for microwave 2

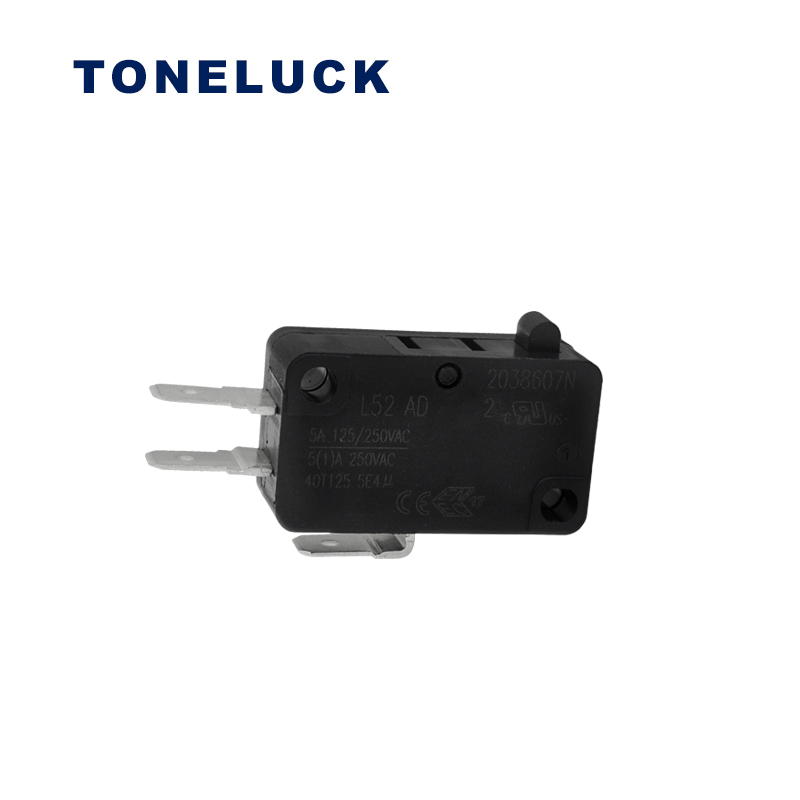

micro switch for microwave 3 micro switch for microwave 3

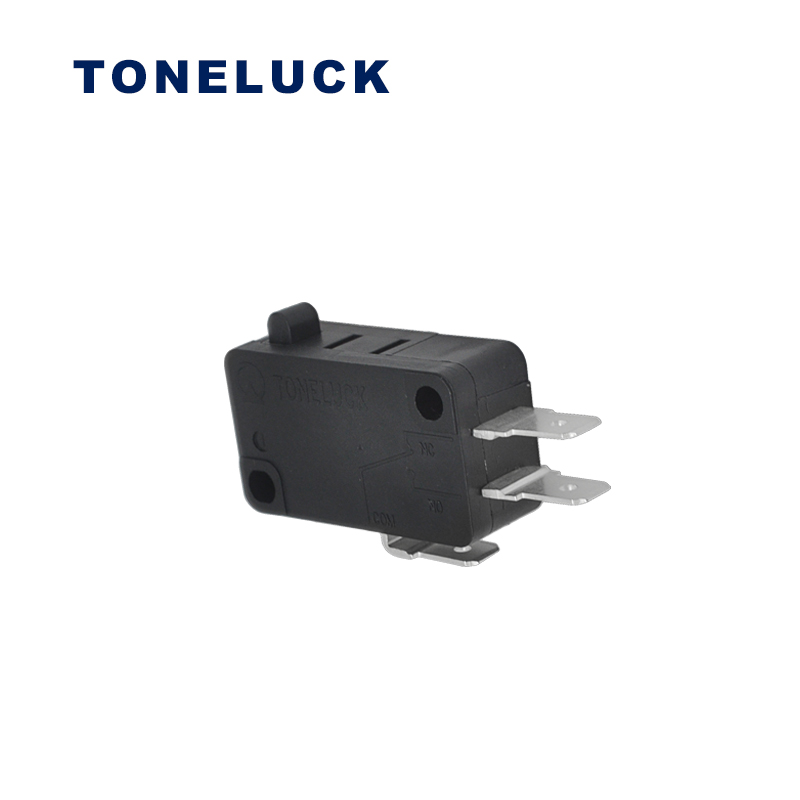

micro switch for microwave 4 micro switch for microwave 4

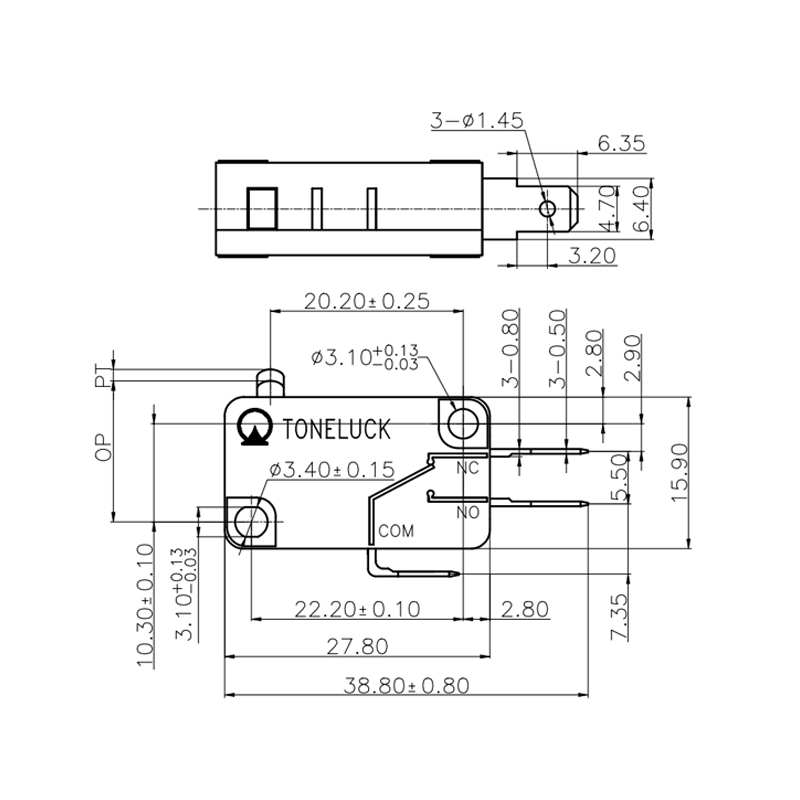

micro switch for microwave 5 micro switch for microwave 5

Short Description

Toneluck L52 T125 Pin Plunger Snap Action Micro Switch For Microwave 5A 250V 125V

  • L series micro switch

  • Product name: L52AD-BN00A1-01

  • Product applications: Smart homes such as multi-function telephones, large-scale mixing consoles, household gas appliances, washing machines, dishwashers, etc.; new energy vehicle charging guns, car air conditioning controllers, car door locks, car sensors, and other automotive markets.

SEND EMAIL TO US
DOWNLOAD AS PDF

Details Description

Toneluck L52 T125 Pin Plunger Snap Action Micro Switch For Microwave 5A 250V 125V

Specification

Model No. L52AD-BN00A1-01
Operating Temperature -40℃ to +125℃
Rating 5A 125/250VAC  10,000 cycles Min.

5(1)A 250VAC  50,000 cycles Min.

Mechanical Life 1000,000 cycles Min.
Insulation Resistance 100ΩM Min.
Dielectric Strength 1000VAC for 60 ± 5 sec.
Housing UL 94V-0 Thermoplastic
Operation Force (OP) 15gf Max.
Pre-Travel (PT) 1.2mm Max.
Over- Travel (OT) 1.25mm Min.
Movement-Differential (DT) 0.3mm Max.
Operation Position (OP) 14.7±0.5 mm
