Short Description

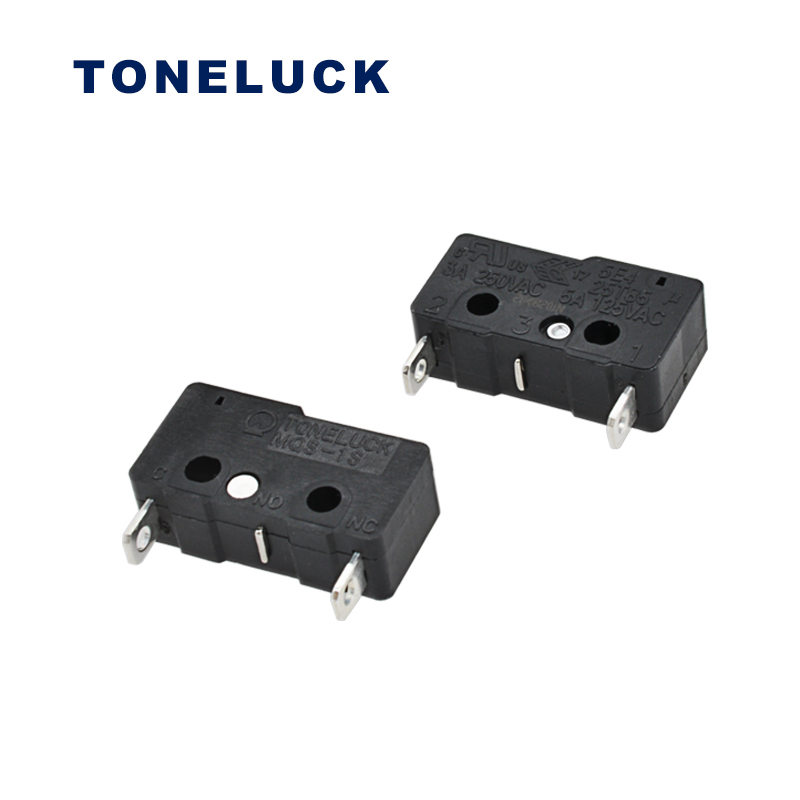

Toneluck Switch MQS-1S SPST Normally Closed Microswitch Solder Terminals

  • MQS-1 Microswitch

  • Product name: MQS-1SBAF300-S07

  • Product applications:Smart homes such as multi-function telephones, large-scale mixing consoles, household gas appliances, washing machines, dishwashers, etc.; new energy vehicle charging guns, car air conditioning controllers, car door locks, car sensors, and other automotive markets.

SEND EMAIL TO US
DOWNLOAD AS PDF

Details Description

Toneluck Switch MQS-1S SPST Normally Closed Microswitch Solder Terminals

Specification

Model No. MQS-1SBAF300-S07
Operating Temperature -40℃ to +85℃
Rating 3A 125/250VAC (ENEC, CQC)  50,000 cycles Min.

5A 125VAC (UL, cUL)  6000 cycles Min.

Mechanical Life 500,000 cycles Min.
Insulation Resistance 100ΩM Min.
Dielectric Strength 1000VAC for 60 ± 5 sec.
Housing UL 94V-0 Thermoplastic
Contact Silver
Lever Type Without Lever
Operation Force (OP) 60~105 gf
Release Force (RP) 30 gf Min.
Pre-Travel (PT) 0.7mm Max.
Over- Travel (OT) 0.3mm Min.
Movement-Differential (DT) 0.2mm Max.
Operation Position (OP) 8.4±0.5 mm
