Short Description
It can be used for 0.1A, 3A, 5A, 10A and other application loads. The products have UL, CQC, ENEC and other relevant certifications;

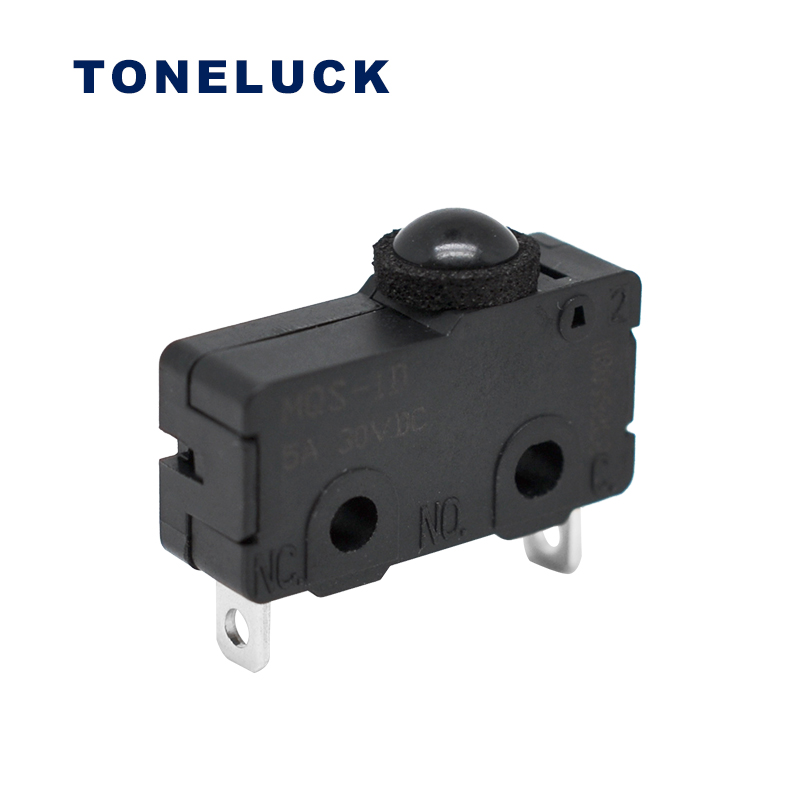

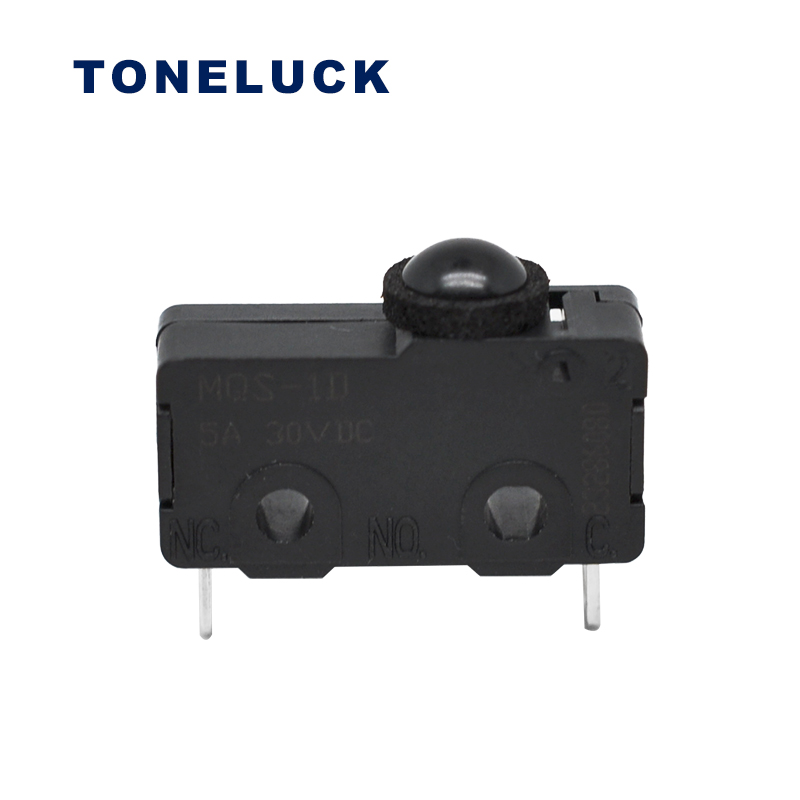

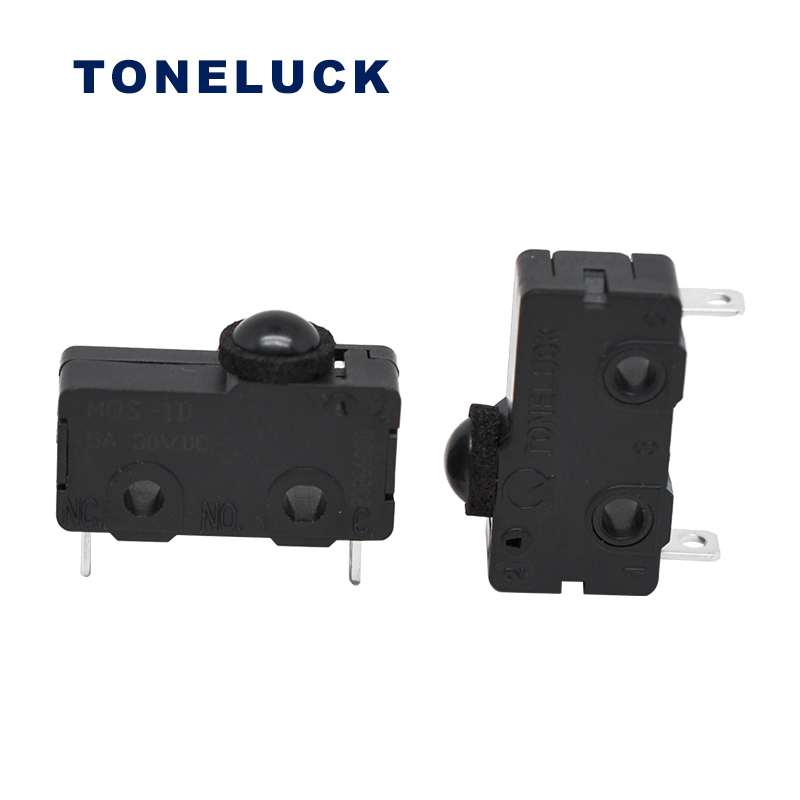

MQS-1 Microswitch
Product name: MQS-1DBAF4MH-SA6
Product applications: household appliances, like the office machine, aquarium feeder, hand dryer, and so on.
Details Description
| Model No. | MQS-1CAF418-S01 |
| Operating Temperature | -40℃ to +85℃ |
| Rating | 3A 125/250VAC (ENEC, CQC) 50,000 cycles Min.
5A 125VAC (UL, cUL) 6000 cycles Min. |
| Mechanical Life | 500,000 cycles Min. |
| Insulation Resistance | 100ΩM Min. |
| Dielectric Strength | 1000VAC for 60 ± 5 sec. |
| Housing | UL 94V-0 Thermoplastic |
| Contact | Silver |
| Lever Type | Without Lever |
| Operation Force (OP) | 40±15gf |
| Release Force (RP) | 8gf Min. |
| Pre-Travel (PT) | 4.2mm Max. |
| Over- Travel (OT) | 1.0mm Min. |
| Movement-Differential (DT) | 1.0mm Max. |
| Operation Position (OP) | 14.5±1.9mm |
| Free Position(FP) | 18.5mm Max. |
