Short Description

This is normally open waterproof sealed micro switch 1A 16VDC with UL, ENEC, CQC, ROSH, and REACH certification. Meanwhile, it has an IP67 waterproof protection level.

  • MQS-9B Small Micro Switch

  • Product name: MQS-9B1BD00-01(N)

  • Product applications: multi-function telephones, large-scale mixers, household gas appliances, washing machines, dishwashers and other smart homes; new energy vehicle charging guns, car air conditioning controllers, car door locks, car sensors and other automotive markets.

SEND EMAIL TO US
DOWNLOAD AS PDF

Sealed Micro Switch Details Description

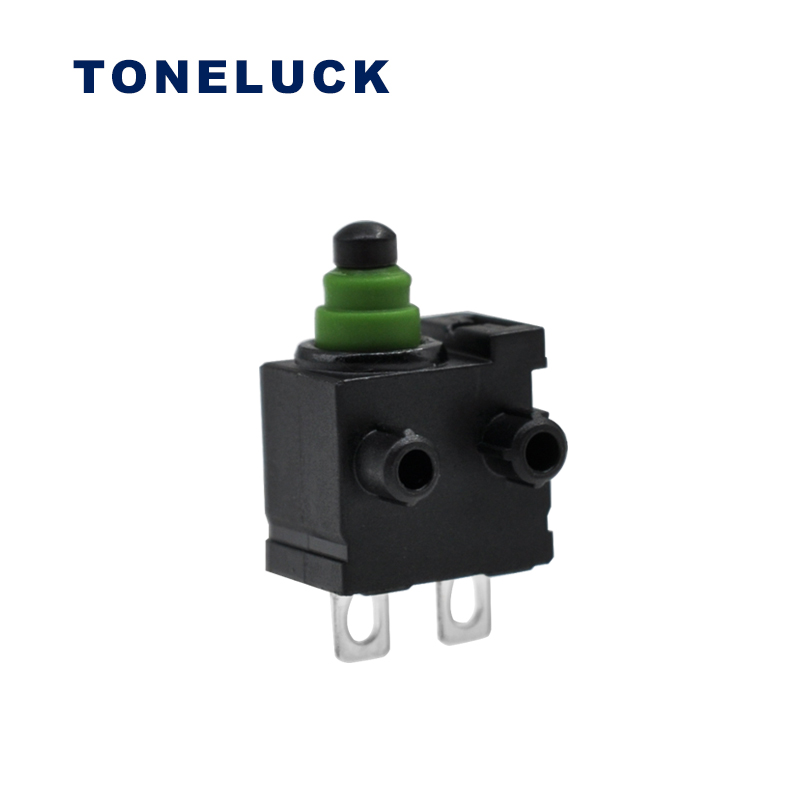

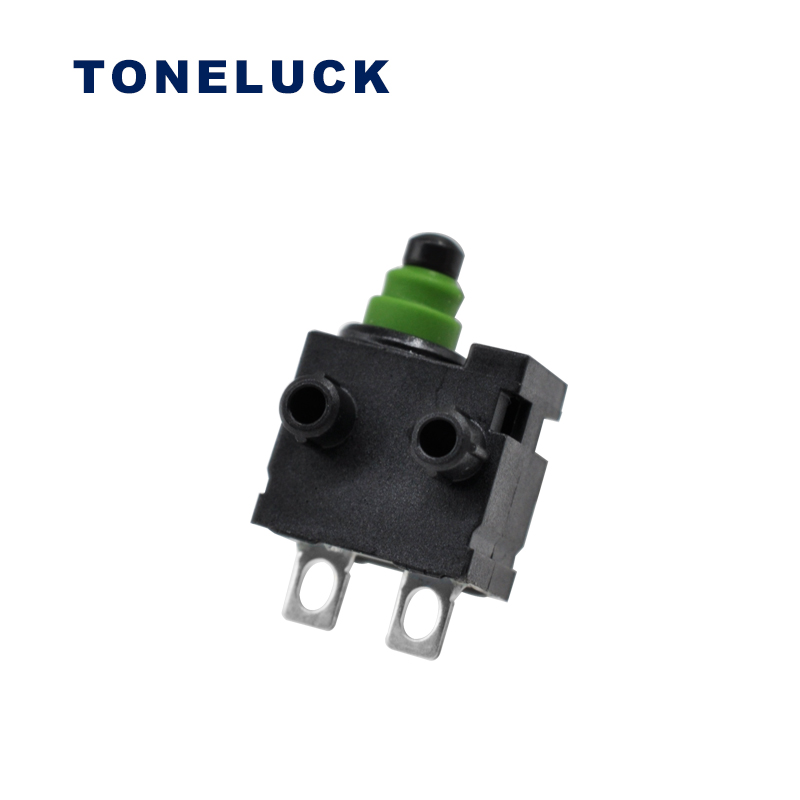

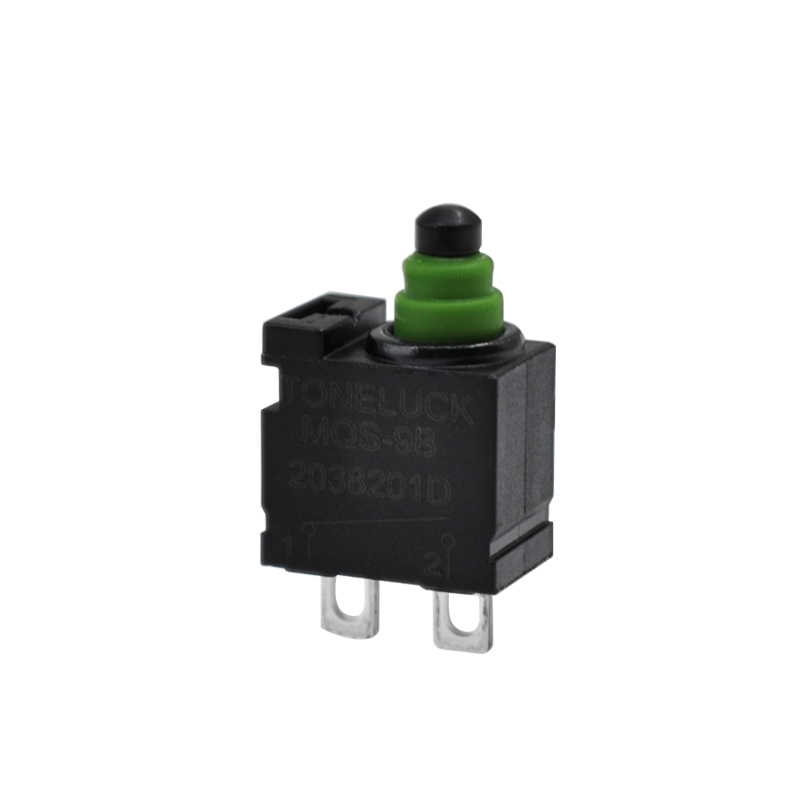

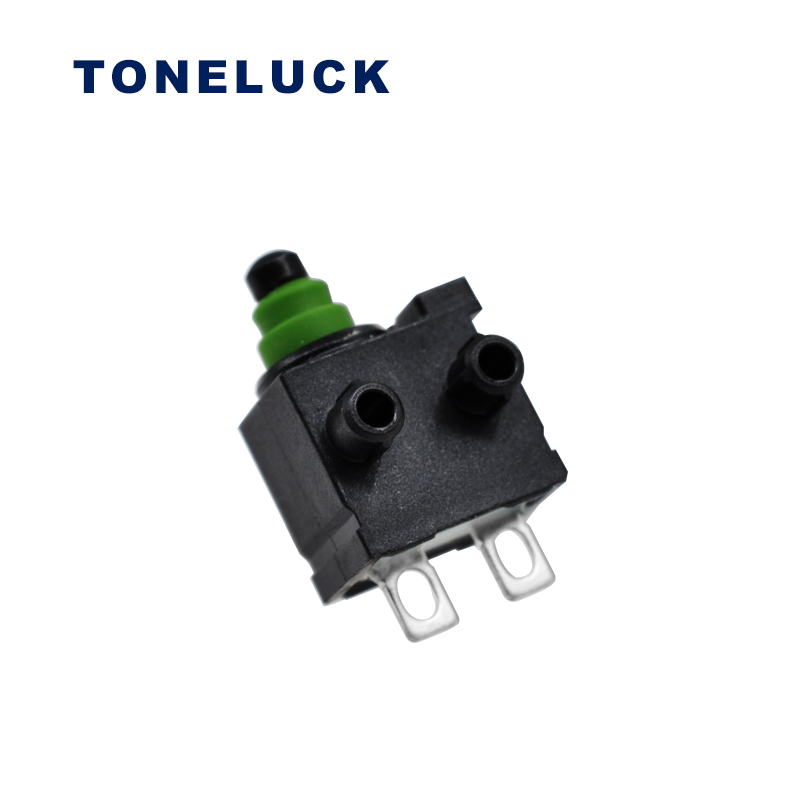

The MQS-9B1BD00-01(N) is normally open waterproof sealed micro switch 1A 16VDC with UL, ENEC, CQC, ROSH, REACH certification. Meanwhile, it has an IP67 waterproof protection level.

Specification

Model No. MQS-9B1BD00-01(N)
Operating Temperature -40℃ to +85℃
Rating 1mA 5VDC 300000 cycles Min.

50mA 12VDC 200000 cycles Min.

50mA 16VDC 150000 cycles Min.

Mechanical Life 500,000 cycles Min.
Insulation Resistance 100ΩM Min.
Dielectric Strength 1000VAC for 60 ± 5 sec.
Housing UL 94V-0 Thermoplastic
Contact Silver
Lever Type Without Lever
Operation Force (OP) 7.1±0.2gf
