Details Description

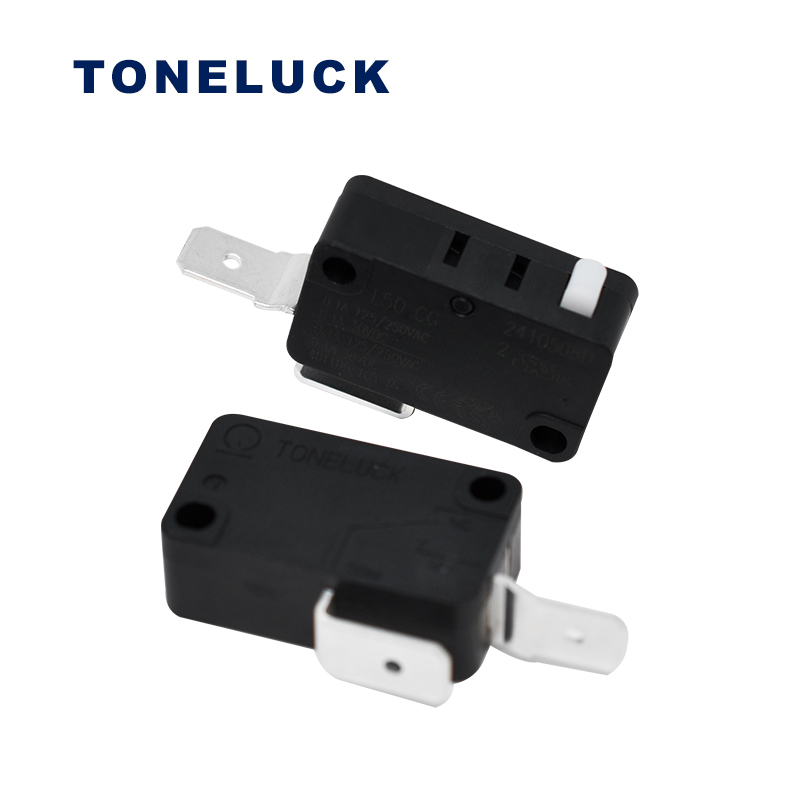

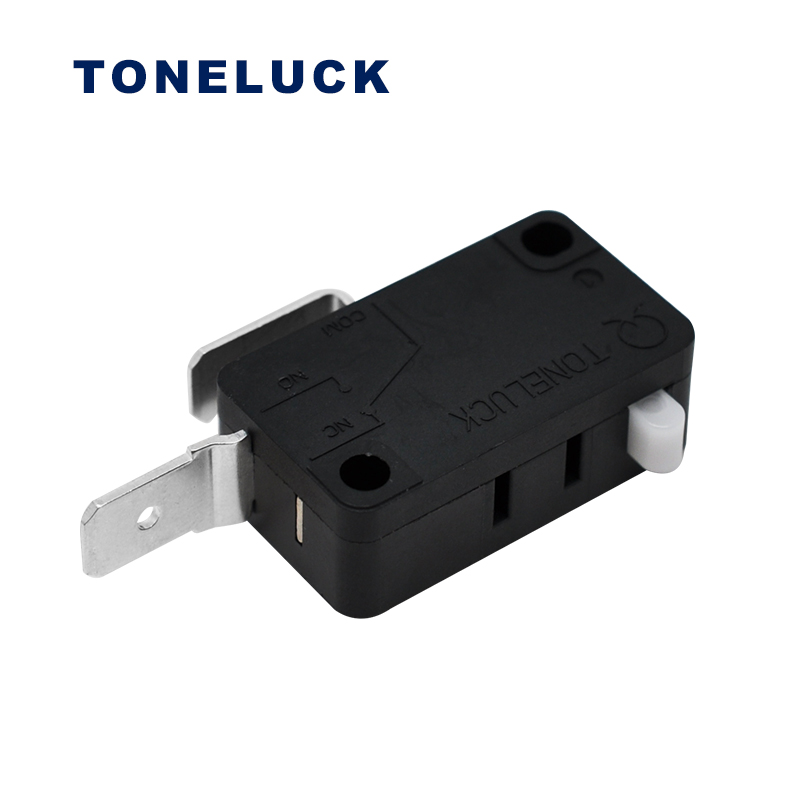

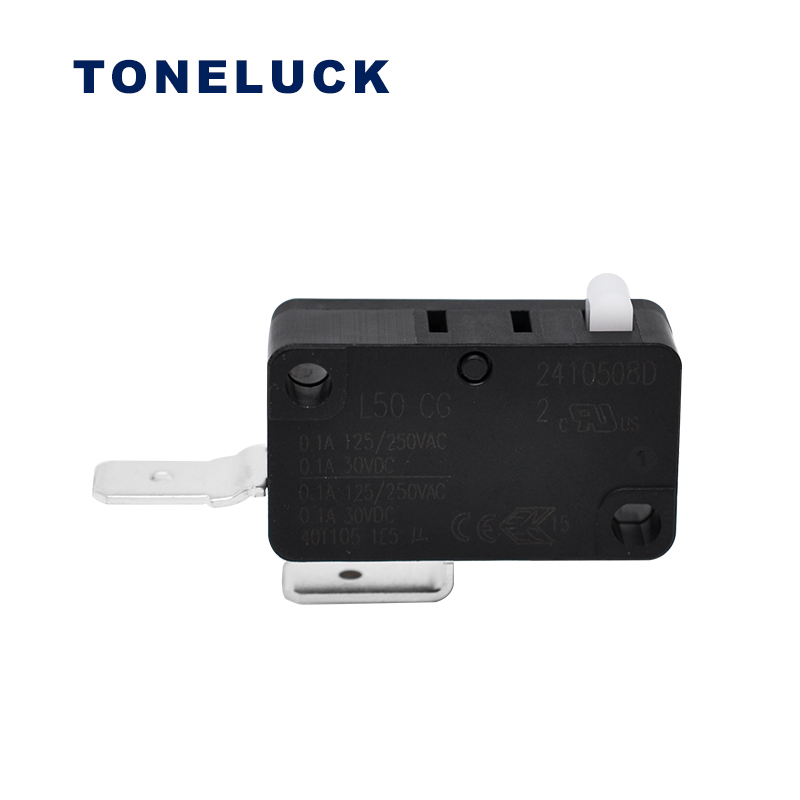

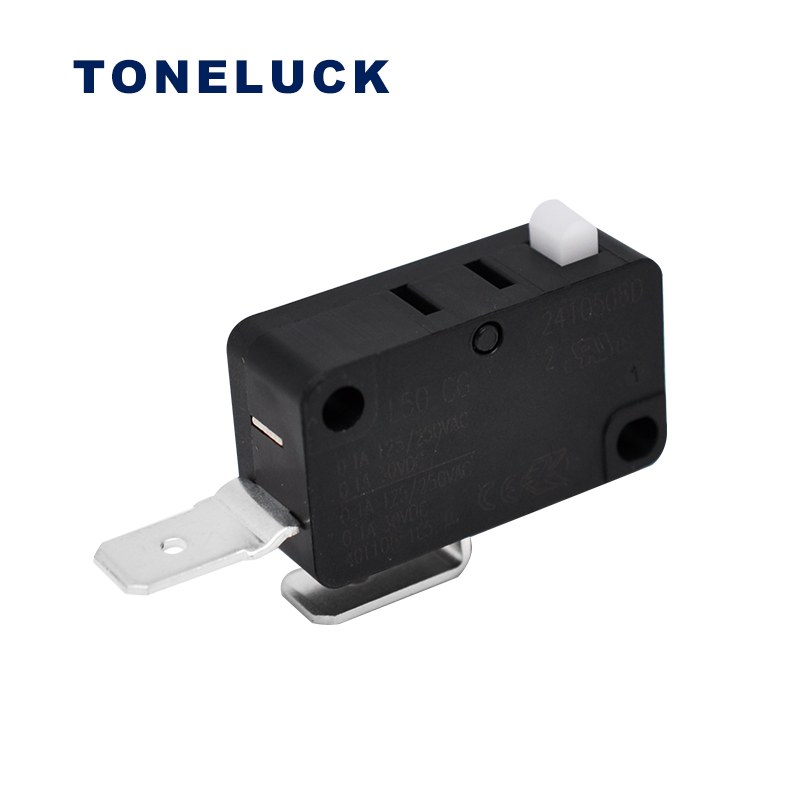

This door switch is not only suitable for the dryer but also for the washing machine, which is high-quality and long- life as well as it has UL, cUL, ENEC, and CQC global safety certifications to ensure the parameters. For example, in the Endurance test with electrical load for UL, which is according to UL1054, samples are to be mounted normally on an endurance tester, 6,000 cycles operation shall be performed continuously at a rate of 6~10 cycles per minute with the electrical load as 16A 125/250VAC. And then our safety certification is similar.
The rating is “16A 125/250VAC, 1/3HP 125/250VAC, 10(4)A 125/250VAC”, so the current is enough for most household appliances. Welcome to contact us if you need information.
| Model No. | L52CF-BN00A1-01 |
| Operating Temperature | -40℃ to +125℃ |
| Rating | 5A 125/250VAC (UL, cUL) 100,000 cycles Min.
5(1)A 250VAC (ENEC) 50000 cycles Min. |
| Mechanical Life | 1000,000 cycles Min. |
| Insulation Resistance | 100ΩM Min. |
| Dielectric Strength | 1000VAC |
| Housing | UL 94V-0 Thermoplastic |
| Contact | Silver |
| Lever Type | Without Lever |
| Operation Force (OP) | 13~25gf |

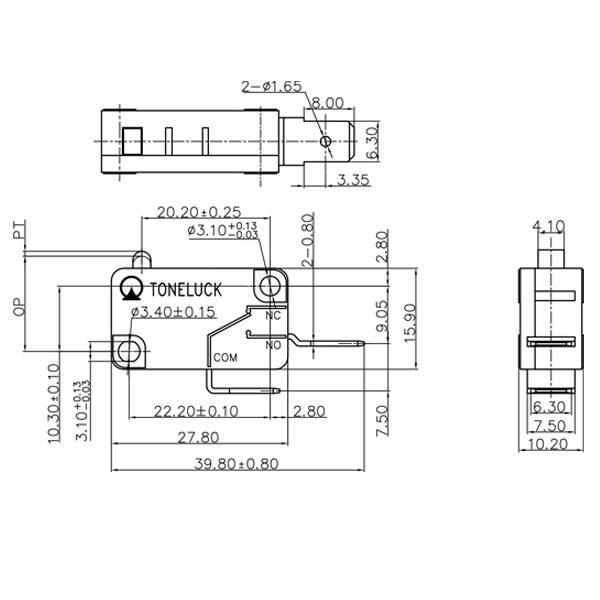

| Pre-Travel (PT) | 1.2mm Max. |
| Over- Travel (OT) | 1.25mm Min. |
| Movement-Differential (DT) | 0.4mm Max. |
| Operation Position (OP) | 14.7±0.5 mm |
