Short Description

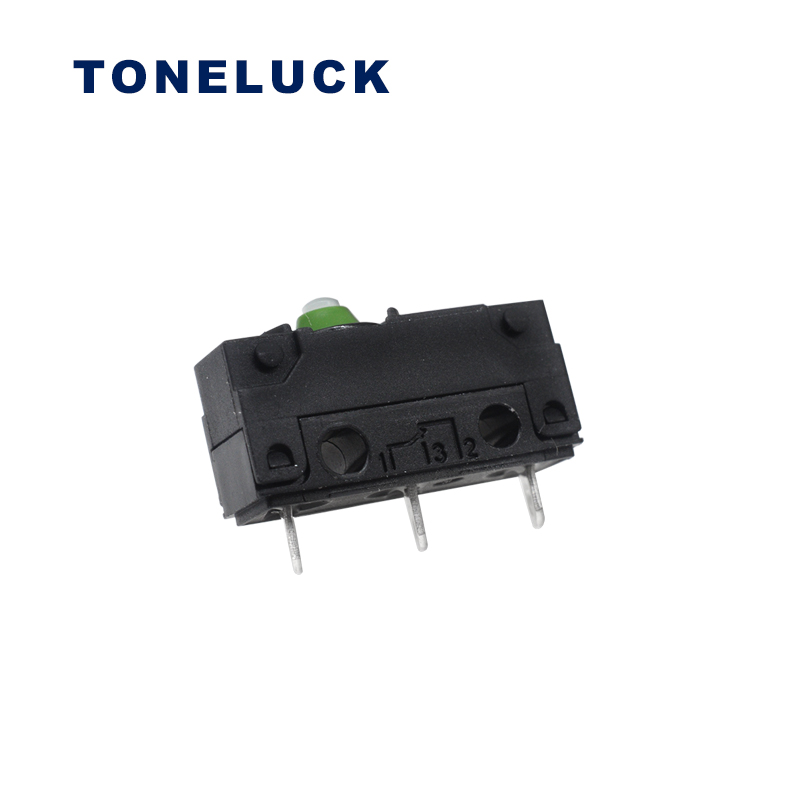

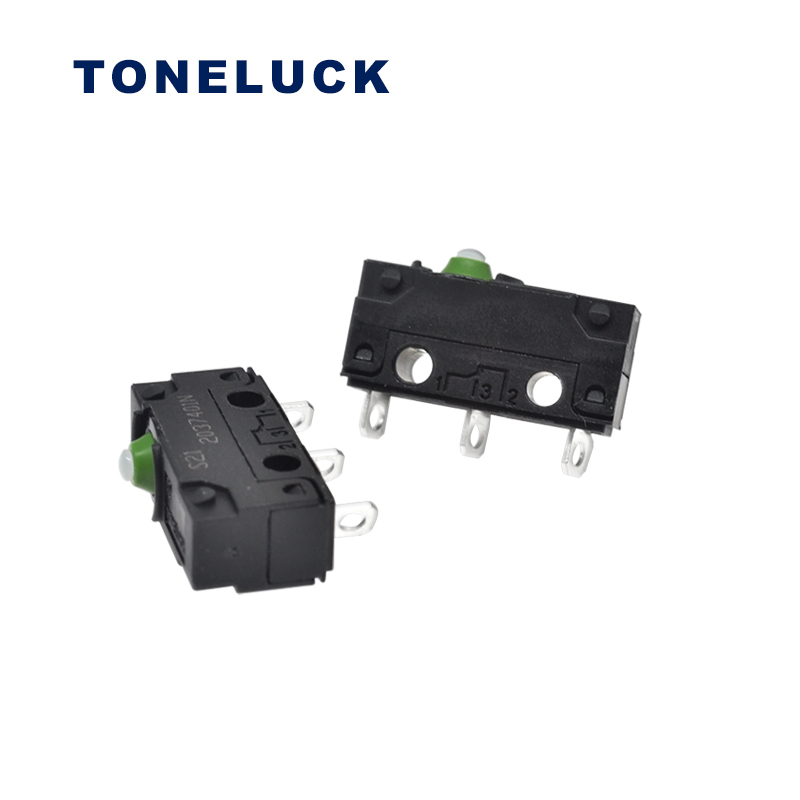

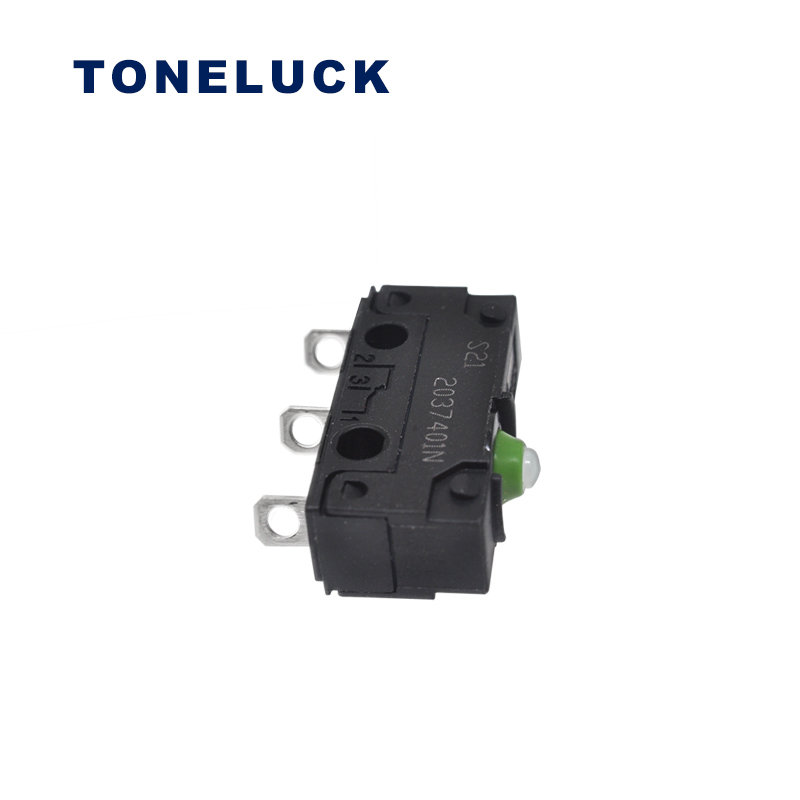

S21AS00-S01 is a waterproof micro switch with SPDT circuit code and IP67 waterproof protection level. The rating is 0.1A 12~24VDC 250,000 cycles.

  • Model Number: S21AS00-S01

  • Product applications: Smart homes such as multifunctional telephones, large mixers, household gas appliances, washing machines, dishwashers, etc.; new energy vehicle charging guns, car air conditioning controllers, car door locks, car sensors, and other automotive markets.

SEND EMAIL TO US
DOWNLOAD AS PDF

Details Description

S21AS00-S01 is a waterproof micro switch with SPDT circuit code and IP67 waterproof protection level. The rating is 0.1A 12~24VDC 250,000 cycles with UL, ENEC, CQC certification.  Meanwhile, with more than 45 years of experience in production, the quality of the S21 series is very reliable.

Secondly, the advantage of this switch is long-life which can reach 250000cycles with a rating and the mechanical cycle is 5000000 min. Moreover, this model is in an IP67 waterproof protection level so that it can use in a wet environment.

Specification

Model No. S21AS00-S01
Operating Temperature -40℃ to +85℃
Rating 10mA~100mA 12VDC ~24VDC
Mechanical Life 500,000 cycles Min.
Insulation Resistance 100ΩM Min.
Dielectric Strength 500VAC
Housing UL 94V-0 Thermoplastic
Contact Silver
Lever Type Without Lever
Operation Force (OP) 200gf Max.
Release Force (RP) 50gf Min.

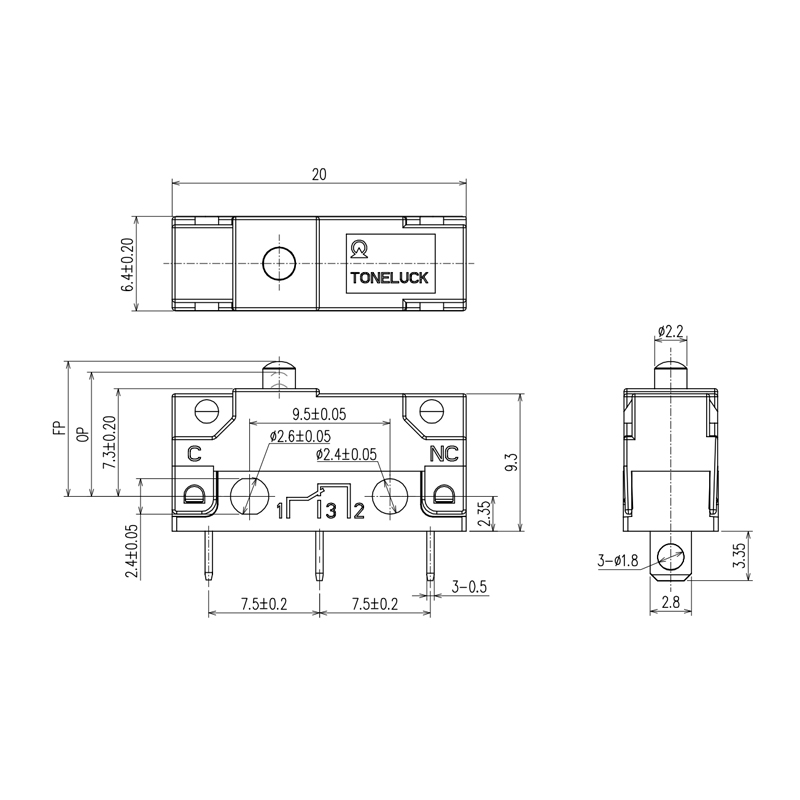

Pre-Travel (PT) 0.8mm Max.
Movement-Differential (DT) 0.15mm Max.
Operation Position (OP) 8.4±0.4 mm
Free Position(FP) 9.3mm Max.
