Short Description

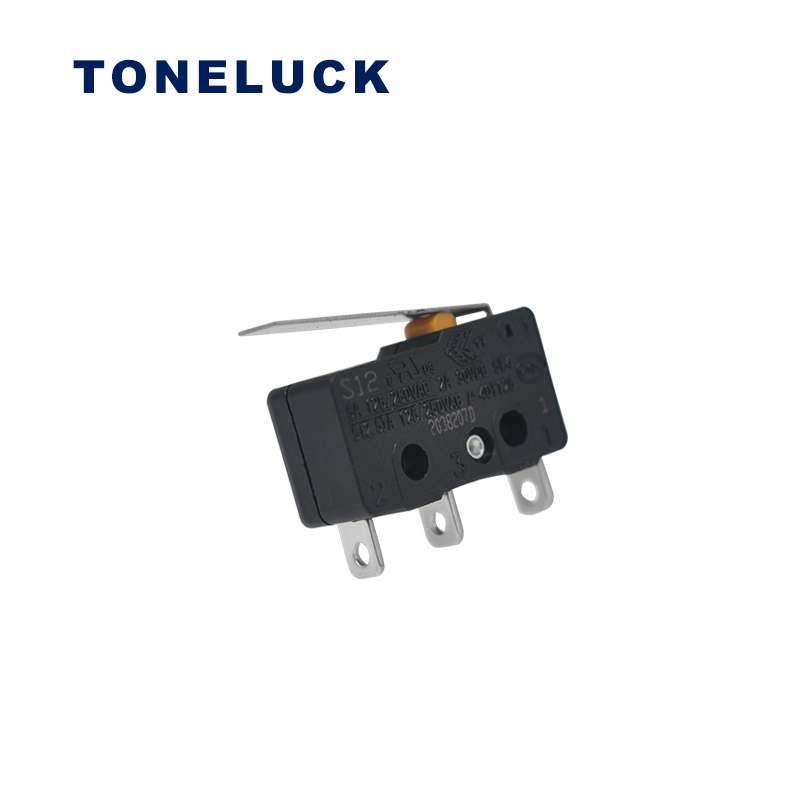

The Toneluck S12AAF201-S01 is a straight lever SPDT momentary micro switch with UL ENEC CQC certification in the rating of 5A 125 / 250VAC 2A 30VDC.

  • S1 Snap Switch

  • Product name: S12AAF201-S01

  • Product applications: Smart homes such as multi-function telephones, large mixers, household gas appliances, washing machines, dishwashers, etc.; new energy vehicle charging guns, car air conditioning controllers, car door locks, car sensors, and other automotive markets.

SEND EMAIL TO US
DOWNLOAD AS PDF

Details Description

S12AAF201-S01 is a straight lever SPDT momentary microswitch with UL ENEC CQC certification in the rating of 5A 125 / 250VAC;2A 30VDC. Meanwhile, the shell material is made of UL 94V0 thermosetting plastic and the contact is silver alloy. However, if you have other requirements in the lever, terminal, operation force, contact, welcome to contact us to get more details. For this series, the mounting hole size has the 2.4mm and 2.2mm diameter for choice.

Specification

Model No. S12AAF201-S01
Operating Temperature -40℃ to +125℃
Rating 2A 30VDC  or 5A 125/250VAC (UL CUL) 6000 cycles Min.

2A 30VDC  or 5(2.5)A 125/250VAC (ENEC) 50000 cycles Min.

2A 30VDC  or 5(2.5)A 125/250VAC  (CQC) 50000 cycles Min.

Mechanical Life 500,000 cycles Min.
Insulation Resistance 100ΩM Min.
Dielectric Strength 1000VAC for 60 ± 5 sec.
Housing UL 94V-0 Thermoplastic
Contact Silver
Operation Force (OP) 25±15gf
Pre-Travel (PT) 3.6mm Max.
Over- Travel (OT) 1mm Min.
Free Position(FP) 13.2mm Max.
