125/250V AC Micro Switch
This is an AC micro switch that can work in the 125V/250V with wide range working temperature, which is from -40 to 125℃. UL94 V-0 fire rating protection level.
S1 Series Microswitch
Product MPN: S12CAF202-S01
Product applications: household appliances, like the office machine, aquarium feeder, hand dryer, and so on.
S11 AC Micro Switch Description
The Toneluck S12CAF202-S01 is a 125/250V AC micro switch that can work in a 5A or less environment, which also has a wide working temperature from -40 to 125℃. From its rating of it, it can be used in most home appliances, such as sofa recliners, coffee machines, BBQ grills, vacuum cleaners, spray mops, and so on.

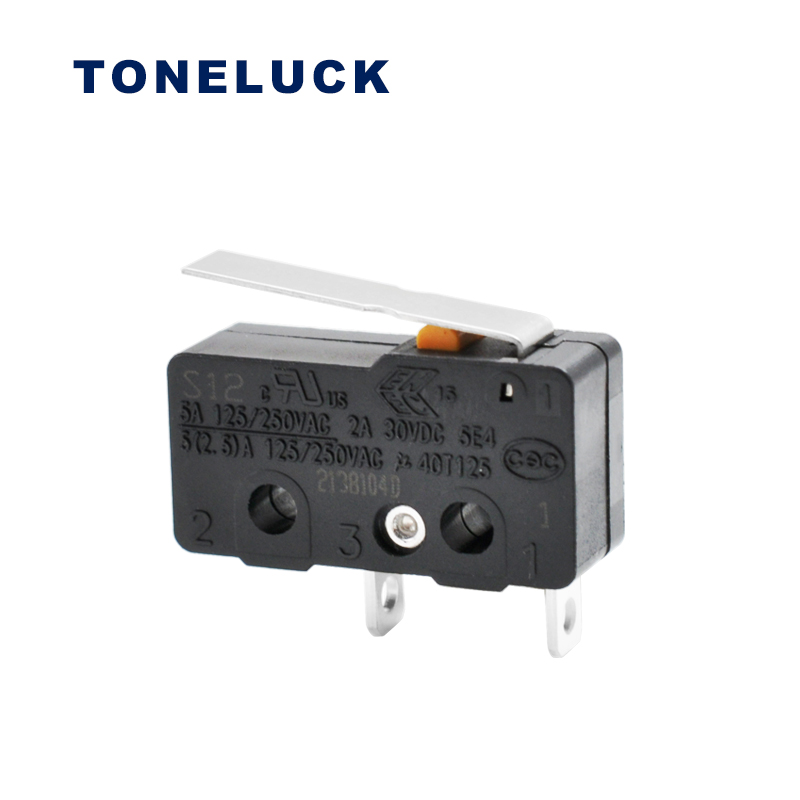

Meanwhile, in order to reduce the risk of fire caused by when short circuit, the s12 series AC micro switch material we used is the UL94 V-0 thermoplastic plastic, which is a high-level fire rating. This model has a straight metal lever to increase the travel so that it can meet some devices’ requirements. And we have all kinds of levers, terminals, etc. for your options. Welcome to visit our MQS-1 & S1 microswitches to see more.
125/250V AC Micro Switch Certifications
Besides, it not only has the UL94 V-0 certificates for shell material but also has UL, cUL, ENEC, and CQC certifications for the whole product.
S12CAF202-S01 Snap Switch Specification
| Electrical Rating | S12CAF202-S01 |
| Operating Temp | -40℃ to +125℃ (40T125) |
| Mechanical Life | 500,000 cycles Min. |
| Electrical Life | 50,000 cycles Min.(5E4) |
| Contact Resistance | 50mΩ Max. (initial) |
| Operating Force | 45gf |
| Insulation Resistance | 100ΩM Min. |
| Dielectric Strength | 1500VAC for 60 ± 5 sec. |
| Housing: | UL 94V0 Thermosetting Plastic |
