Short Description

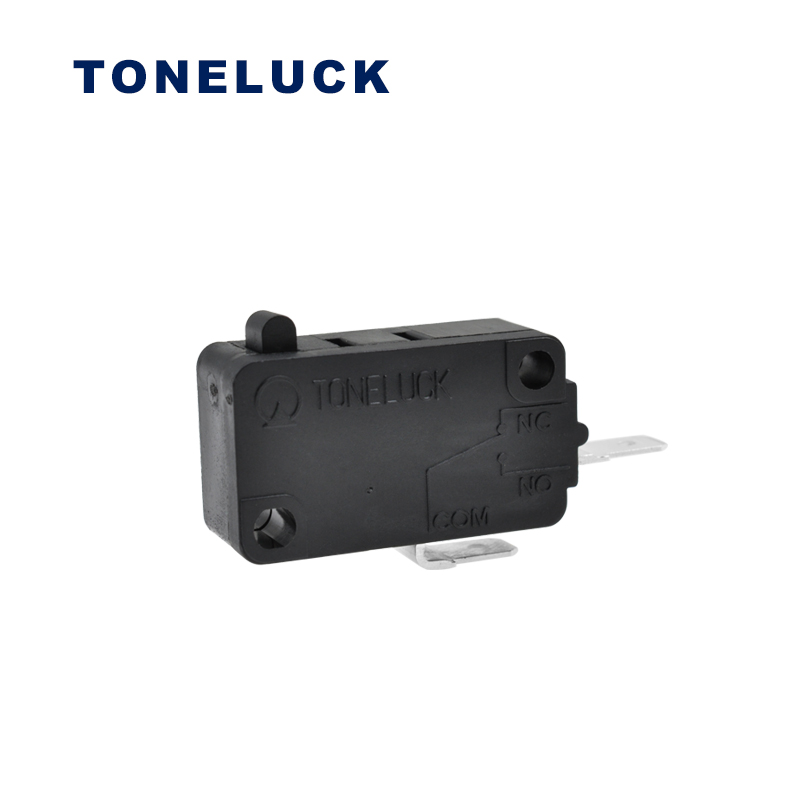

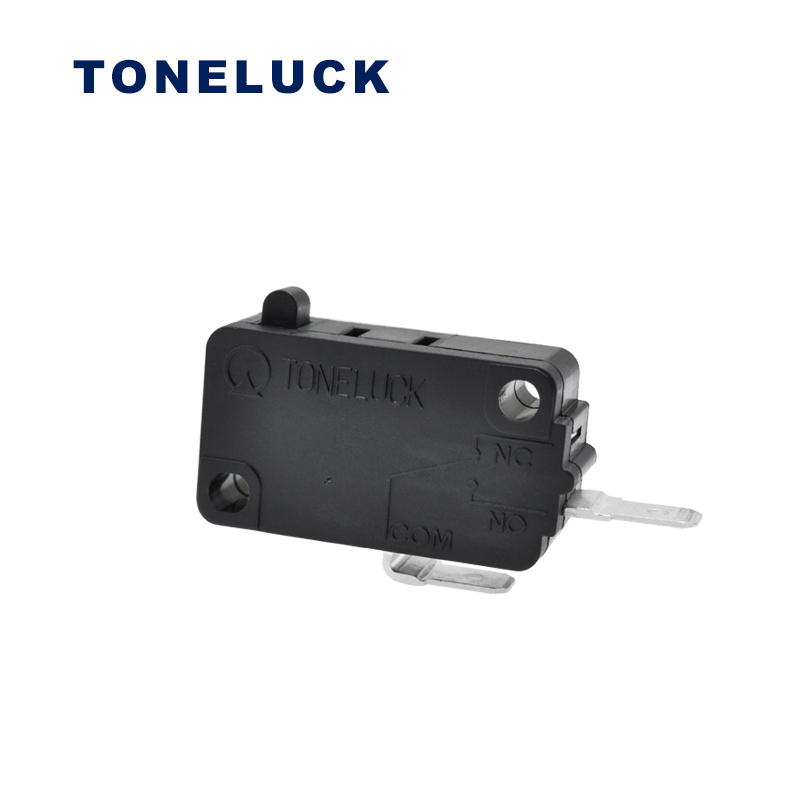

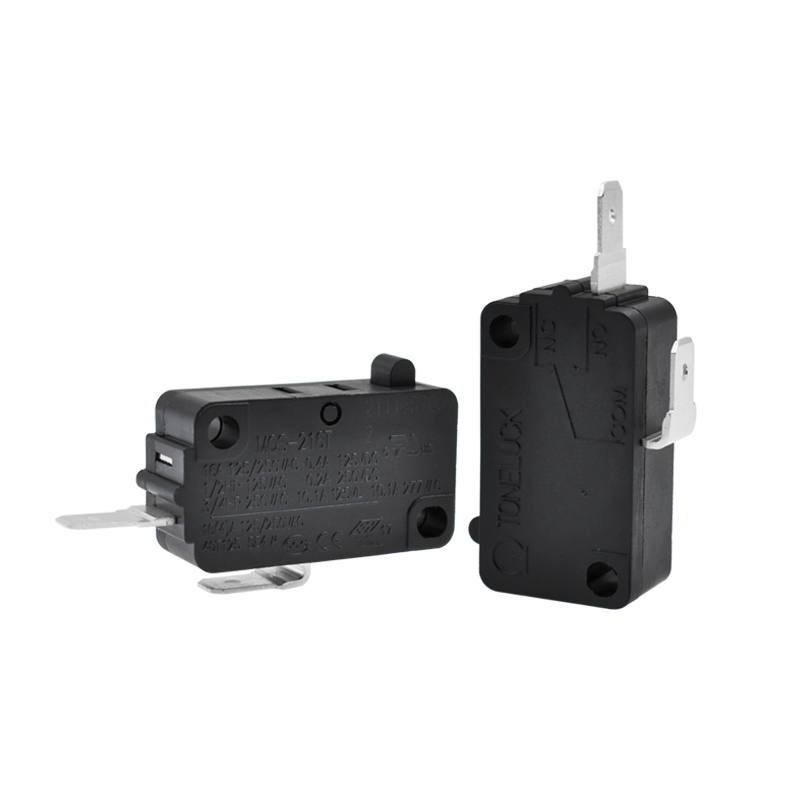

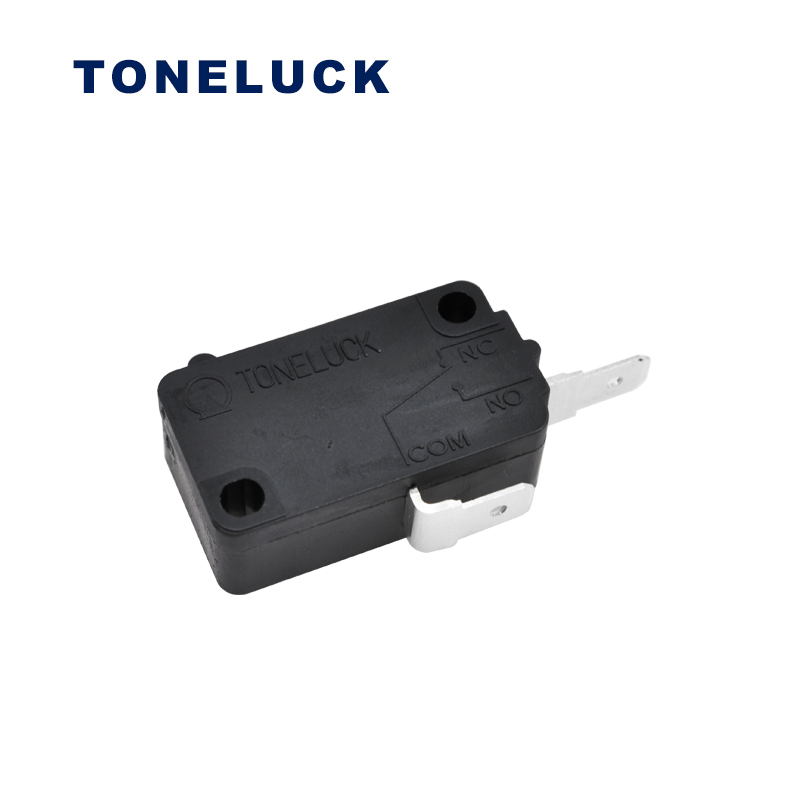

Toneluck MQS-216T is 16A 125/250VAC 25T125 with UL, cUL, ENEC, CQC, and this model is normally open without lever with MC 1,000,000 cycles min.

  • MQS-2 Limit Micro Switch

  • Product name: MQS-216TN00BCM-01

  • Product applications: Smart homes such as multifunctional telephones, large mixers, household gas appliances, washing machines, dishwashers, etc.; new energy vehicle charging guns, car air conditioning controllers, car door locks, car sensors, and other automotive markets.

SEND EMAIL TO US
DOWNLOAD AS PDF

Details Description

Toneluck MQS-216T is 16A 125/250VAC 25T125 with UL, cUL, ENEC, CQC, and this model is normally open without lever with mechanical 1,000,000 cycles min. So, the MQS-216 series micro switch is a long-life type. Meanwhile, this model is an SPST type, and if you need the SPDT or SPST normally closed type, also can contact us.

Specification

Model No. MQS-216TN00BCM-01
Operating Temperature -40℃ to +125℃
Rating 16A 125/250VAC (UL, cUL)  6000 cycles Min.

0.4A 125VDC (UL, cUL)  6000 cycles Min.

16(4)A 125/250VAC (ENEC, CQC)  50000 cycles Min.

Mechanical Life 1000,000 cycles Min.
Insulation Resistance 100ΩM Min.
Dielectric Strength 1000VAC for 60 ± 5 sec.
Housing UL 94V-0 Thermoplastic
Contact Silver
Lever Type Without Lever
Operation Force (OP) 160±30 gf
Release Force (RP) 50gf Min.
Pre-Travel (PT) 1.2mm Max.
Over- Travel (OT) 1.25mm Min.
Movement-Differential (DT) 0.4mm Max.
Operation Position (OP) 14.7±0.5 mm
