Microwave Micro Switch Short Description
MQS-2 is suitable for microwave micro switch & it will be used in the door for safety. Tonelcuk is an experienced manufacturer since 1973, get quotes & samples.

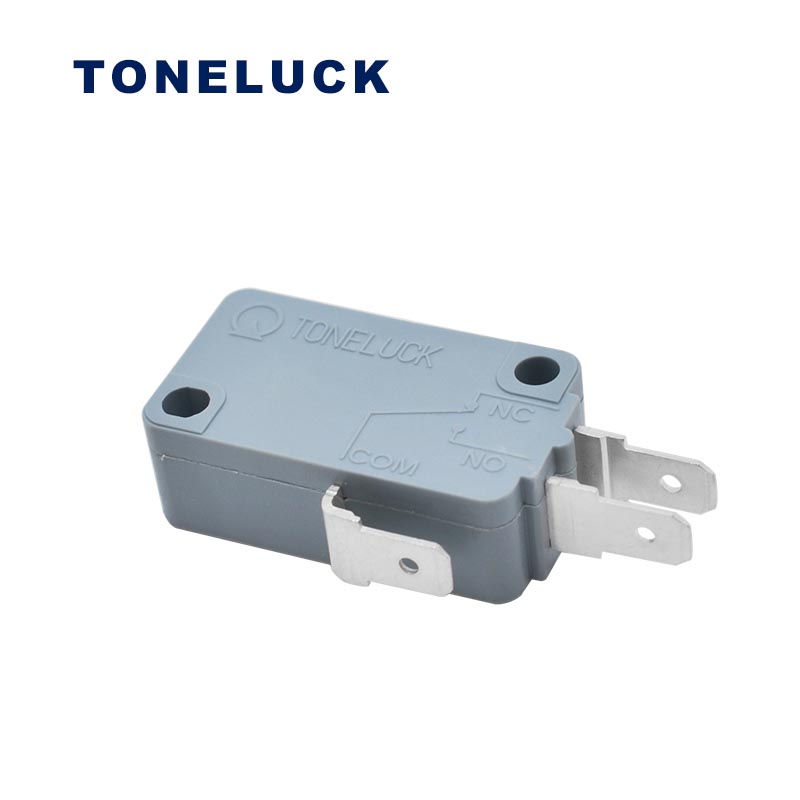

MQS-2 Limit Micro Switch
Model: MQS-216SN00BAN-01
Product applications: The MQS-2 series has wide applications in household appliances, such as microwave ovens, furnaces, rice cookers, electric ovens, coffee machines, juicers, and so on.
Microwave Micro Switch Details Description

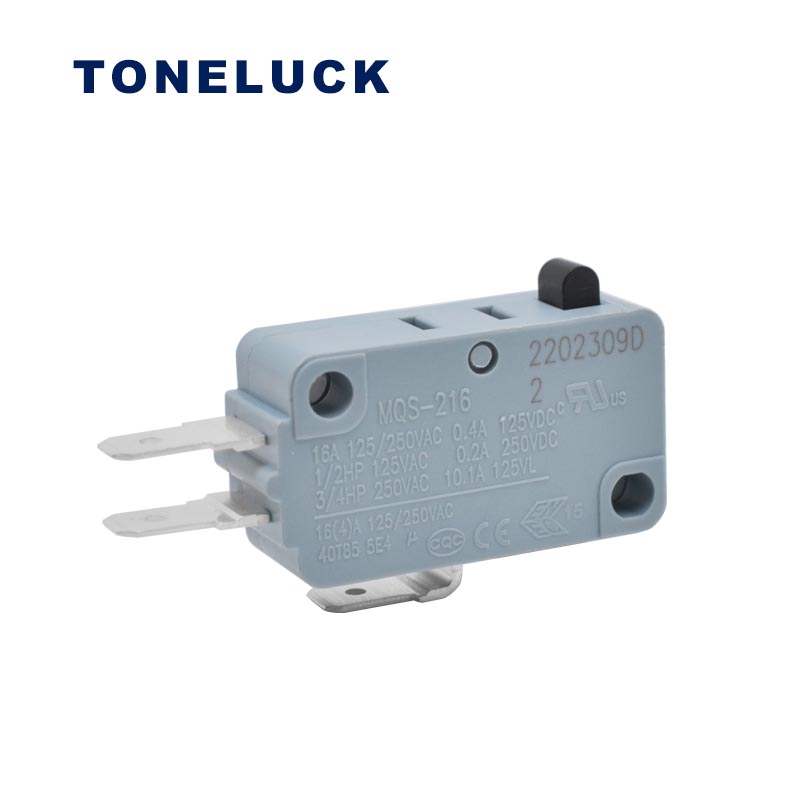

MQS-216SN00BAN-01 is one of the models of the Toneluck MQS-2 series that is SPDT type (single pole double throw circuit). And its rating is “16A 125/250VAC; 1/2 HP 125VAC; 3/4 HP 250VAC; 0.4 125VDC; 0.2A 250VDC; 10.1A 125VL” which is approved by the UL, cUL, ENEC, and CQC certification. And these parameters you can see from its datasheet, welcome to contact us to see them.
And this model is suitable to be used in the microwave oven door. Generally, it needs 3 pcs, this is why this model can be called a microwave micro switch. Meanwhile, our MQS-2 series also can meet the requirement of fireproofing and the protection level for the shell is UL94 V-0.

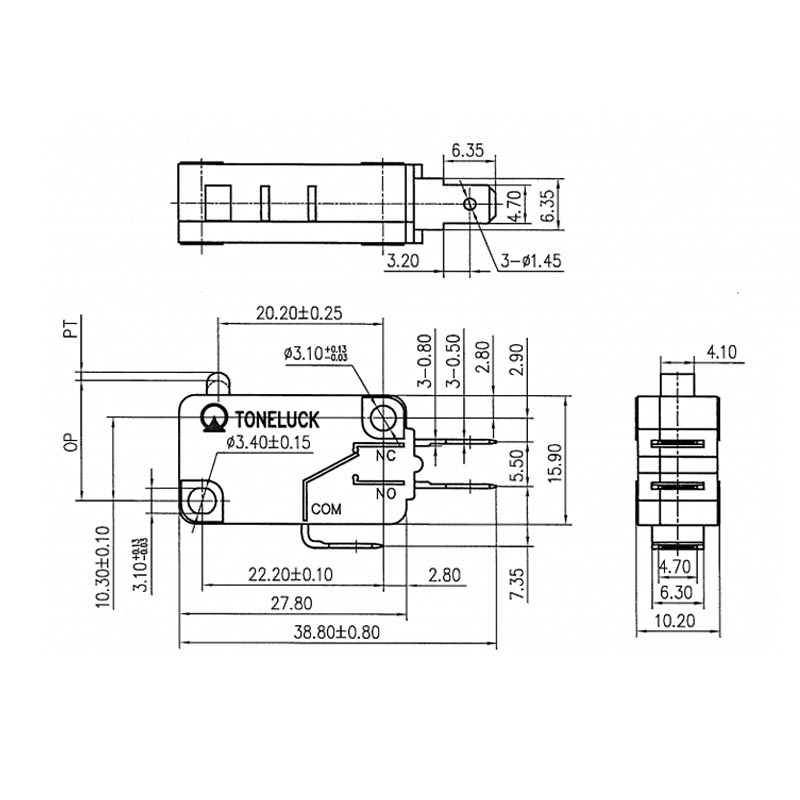

MQS-2 Switch Specification
| Model No. | MQS-216SN00BAN-01 |
| Operating Temperature | -40℃ to +85℃ |
| Rating | 16A 125/250VAC;1/2HP 125VAC;3/4HP 250VAd 0.4A 125VDC;0.2A 250VDC;10.1A 125VL 16 (4)A 125/250VAC |
| Mechanical Life | 500,000 cycles Min. |
| Insulation Resistance | 100ΩM Min. |
| Dielectric Strength | 1000VAC for 60 ± 5 sec. |
| Housing | UL 94V-0 Thermoplastic |
| Contact | Silver |
| Lever Type | Without Lever |
| Operation Force (OP) | 200±30gf |
| Release Force (RP) | 55gf Min. |
| Pre-Travel (PT) | 1.2mm Max. |
| Over- Travel (OT) | 1.25mm Min. |
| Movement-Differential (DT) | 0.4mm Max. |
| Operation Position (OP) | 14.7±0.5 mm |
