Snap Action Micro Switch Short Description
Are you looking for a snap action micro switch manufacturer? Toneluck is one of the best suppliers in China, which was founded in 1976.
MQS-2 Limit Micro Switch

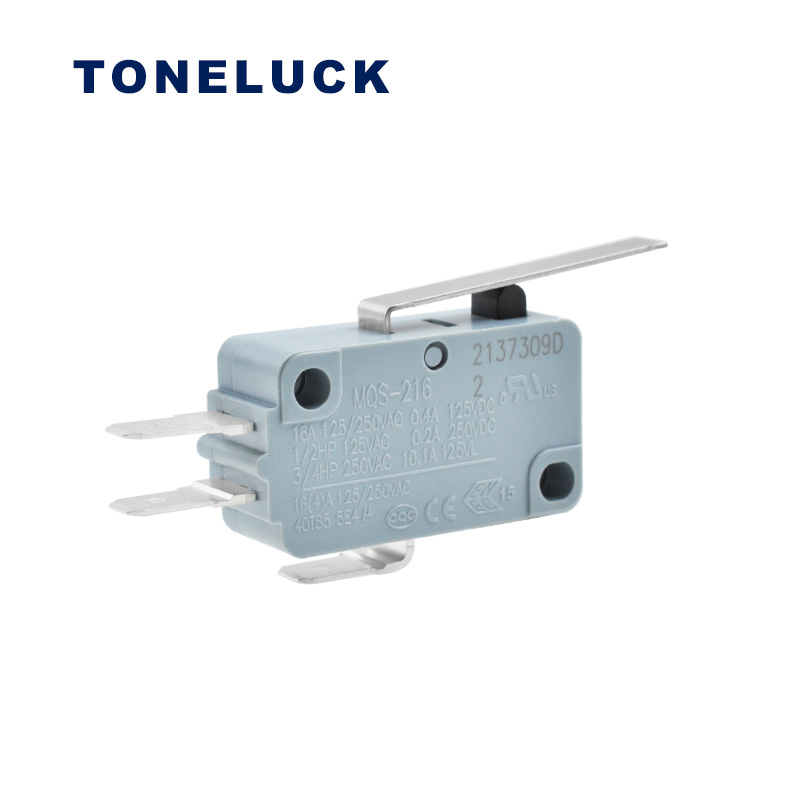

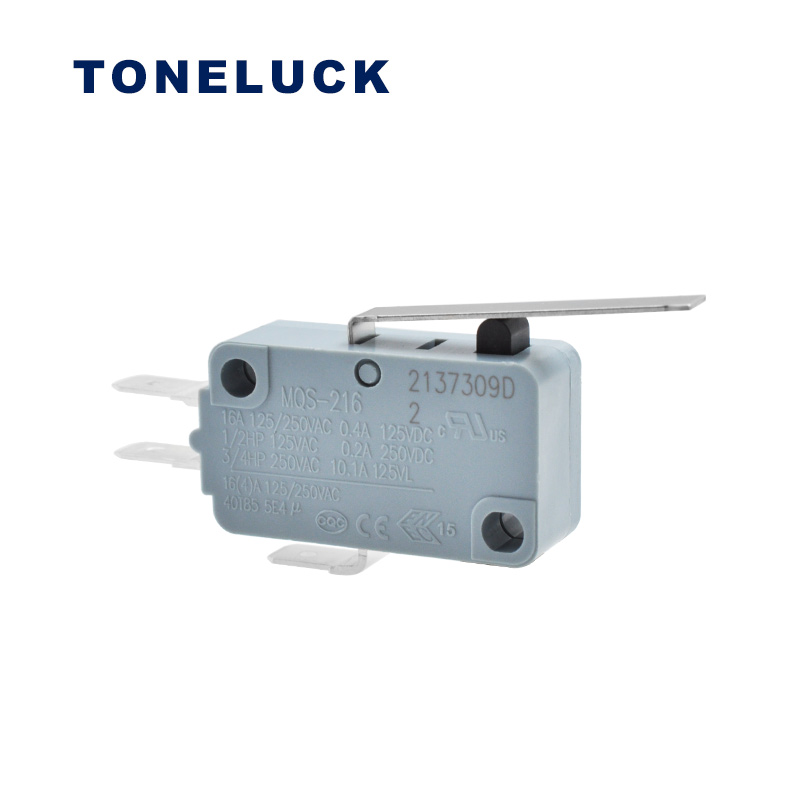

Product name: MQS-216SA02BAM-01
Product applications: Smart homes such as multi-function telephones, large-scale mixing consoles, household gas appliances, washing machines, dishwashers, etc.; new energy vehicle charging guns, car air conditioning controllers, car door locks, car sensors, and other automotive markets.
Details Description

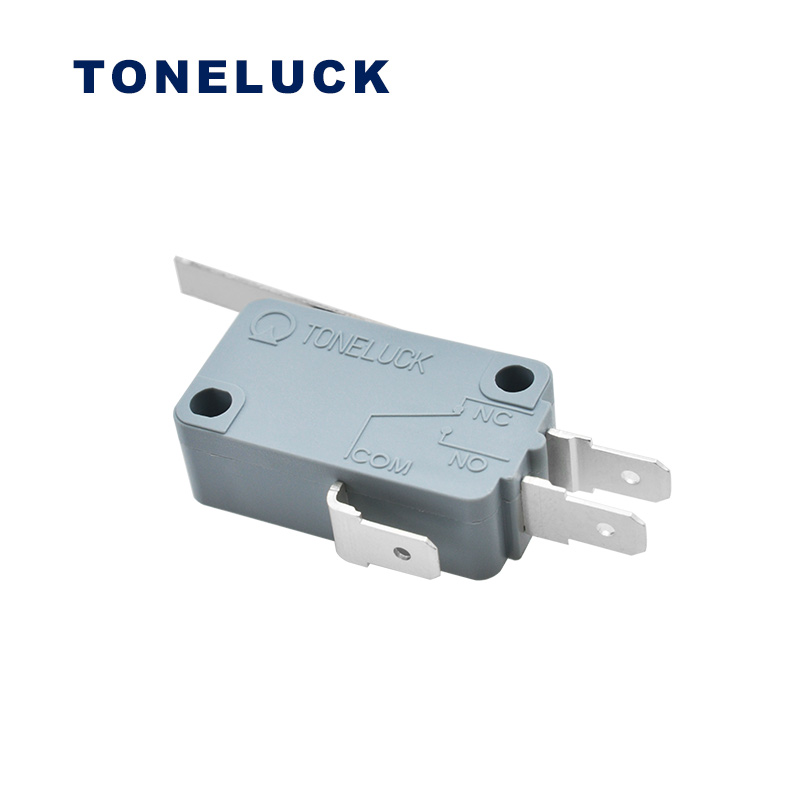

The MQS-216SA02BAM-01 snap action micro switch is SPDT with a straight Lever and 16A 125VAC 250V certificated rating, which has the UL, cUL, ENEC, and CQC certificates for the customer. Meanwhile, the PBT switch shell material also can meet the requirement of UL 94V-0, which is the high flame rating. Besides, if the working temperature is not enough for you, we also have other versions for options, like the T125, T150, T200, and so on.
Specification
| Model No. | MQS-216SA02BAM-01 |
| Operating Temperature | -40℃ to +85℃ |
| Rating | 16A 125/250VAC;1/2HP 125VAC;3/4HP 250VAd
0.4A 125VDC;0.2A 250VDC;10.1A 125VL 16 (4)A 125/250VAC |
| Mechanical Life | 500,000 cycles Min. |
| Insulation Resistance | 100ΩM Min. |
| Dielectric Strength | 1000VAC for 60 ± 5 sec. |
| Housing | UL 94V-0 Thermoplastic |
| Contact | Silver |
| Lever Type | Without Lever |
| Operation Force (OP) | 75±20gf |
| Release Force (RP) | 30gf Min. |

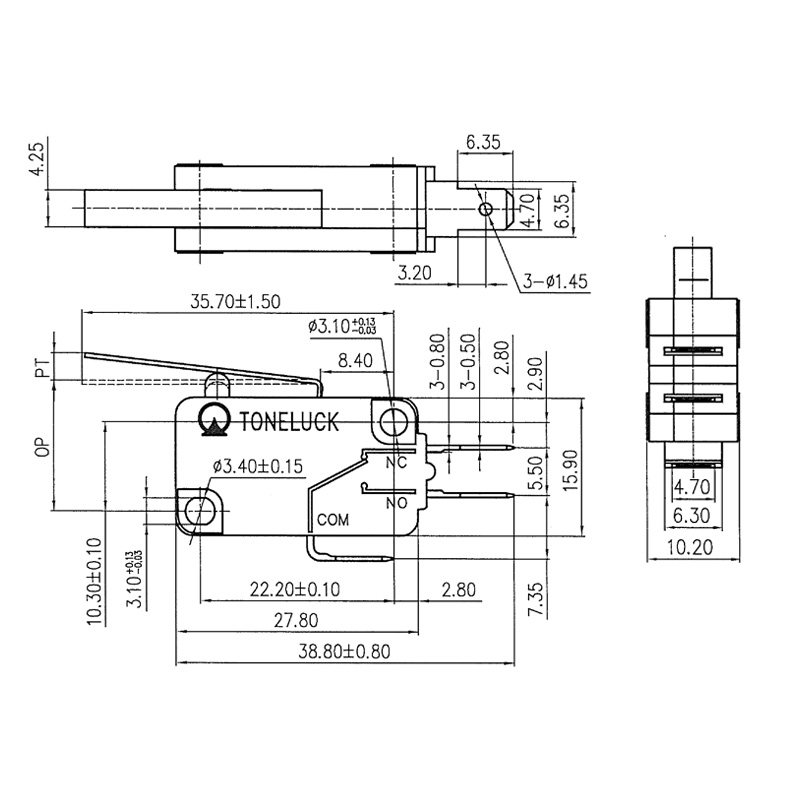

| Pre-Travel (PT) | 3.3mm Max. |
| Over- Travel (OT) | 2.5mm Min. |
| Movement-Differential (DT) | 1.2mm Max. |
| Operation Position (OP) | 15.3±1.5 mm |
