Short Description

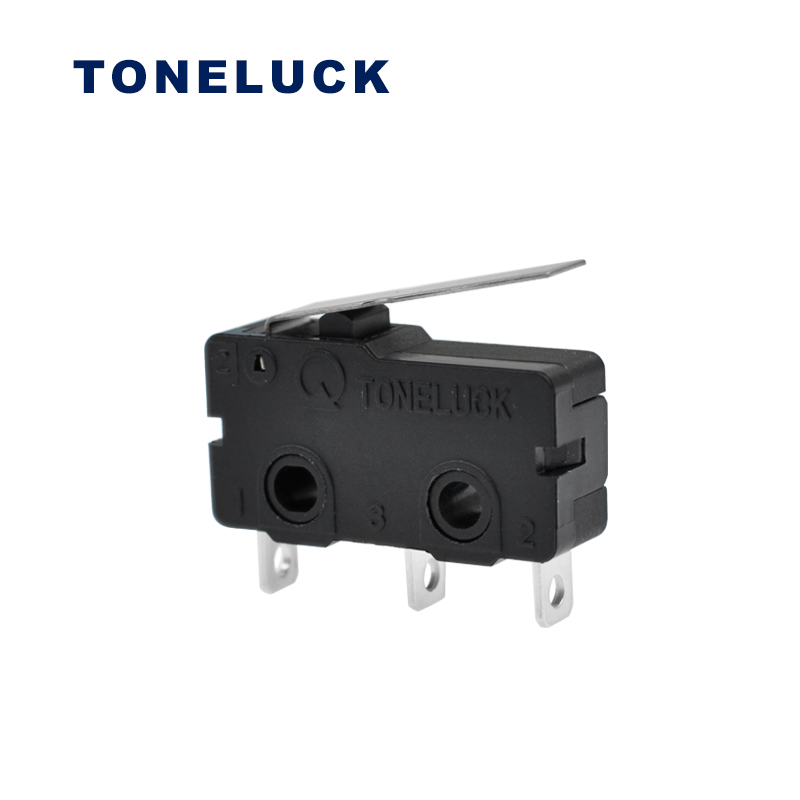

This is the Toneluck MQS-1D micro snap action limit switch with the lever, which is in the approval of UL, CUL, ENEC, CQC in the rating of 5A 30VDC. Single pole double throws current code.

  • MQS-1 Microswitch

  • Product name:MQS-1DAAF402-S01

  • Product applications: multi-function telephones, large-scale mixers, household gas appliances, washing machines, dishwashers and other smart homes; new energy vehicle charging guns, car air conditioning controllers, car door locks, car sensors and other automotive markets.

SEND EMAIL TO US
DOWNLOAD AS PDF

Details Description

This is the Toneluck MQS-1D micro snap action limit switch with the lever, which is in the approval of UL, CUL, ENEC, CQC in the rating of 5A 30VDC. Meanwhile, the current code belongs to single pole double throws. So, we use this item in many household appliances. For example, the recliner will have the MQS-1D inside.

Besides, if need more details of the product information, welcome to contact us freely.

Specification

Model No. MQS-1DAAF402-S01
Operating Temperature -40℃ to +85℃
Rating 5A 30VDC (ENEC, CQC)  10,000 cycles Min.

5A 30VDC (UL, cUL)  10,000 cycles Min.

Mechanical Life 500,000 cycles Min.
Insulation Resistance 100ΩM Min.
Dielectric Strength 1000VAC for 60 ± 5 sec.
Housing UL 94V-0 Thermoplastic
Contact Silver
Lever Type Without Lever
Operation Force (OP) 80±20gf
Release Force (RP) 10gf Min.
Pre-Travel (PT) 4.2mm Max.
Over- Travel (OT) 1 mm Min.
Movement-Differential (DT) 1.1 mm Max.
Operation Position (OP) 8.9±1.7 mm
Free Position(FP) 13.2mm Max.
