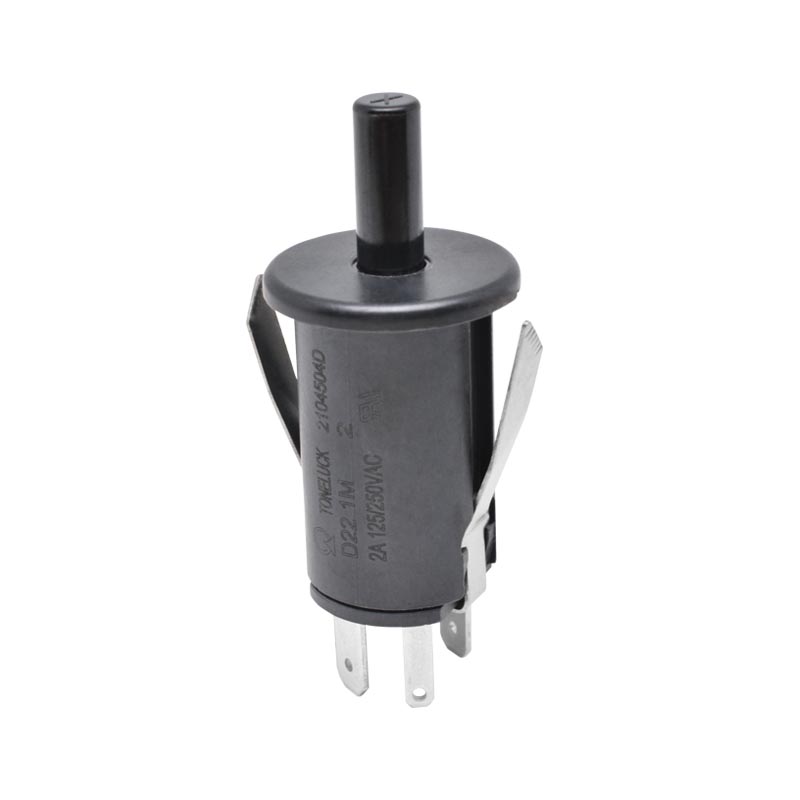

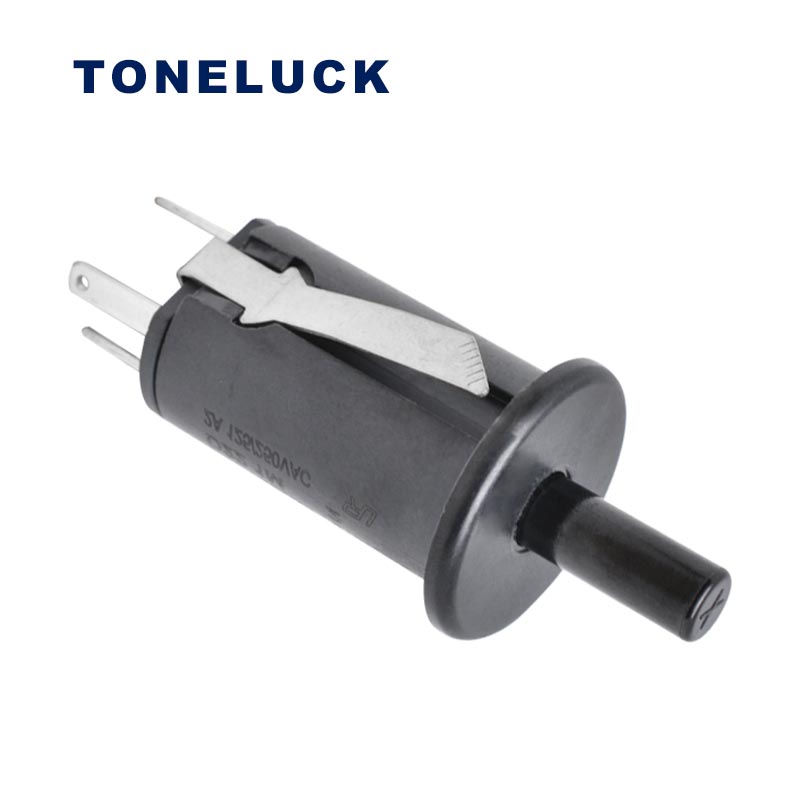

D2 Oven Door Switch
Tonelcuk D2 range oven door switches its a rating is 2A 125/250VAC with SPDT circuitry which has a high working temperature. It is from -25 to 200℃. 100,000cyle with the load.
Belongs to: D2 Door Switch Series
Product Model: D221M-DA2-01
Product applications: Refrigerator, Oven / Stove, wardrobe, cabinet, and so on.
Range Oven Door Switch Description
Tonelcuk D2 range oven door switches are not only can be used in the oven, but also in the oven, stove, wardrobe, refrigerator, and cabinet as well. Which has a high working temperature, the Max temperature is 220 ℃. This is why the Tonelcuk door switch can be used in the oven and is compatible with GE, Hotpoint, Kenmore, etc. There has 25T200 & 25T220 for your options.
Meanwhile, the D2 range oven door switch also has a long working life, its electrical life with load is 100,000cyle at least and its mechanical life is 200,000 cycles at least. So that when you use our D2 switches, you don’t need to worry about the quality. Besides, the door switches shell material is fire-proof material, which is UL94 V-0.
For more door switch series, please click the link or contact us to have more information, thank you.

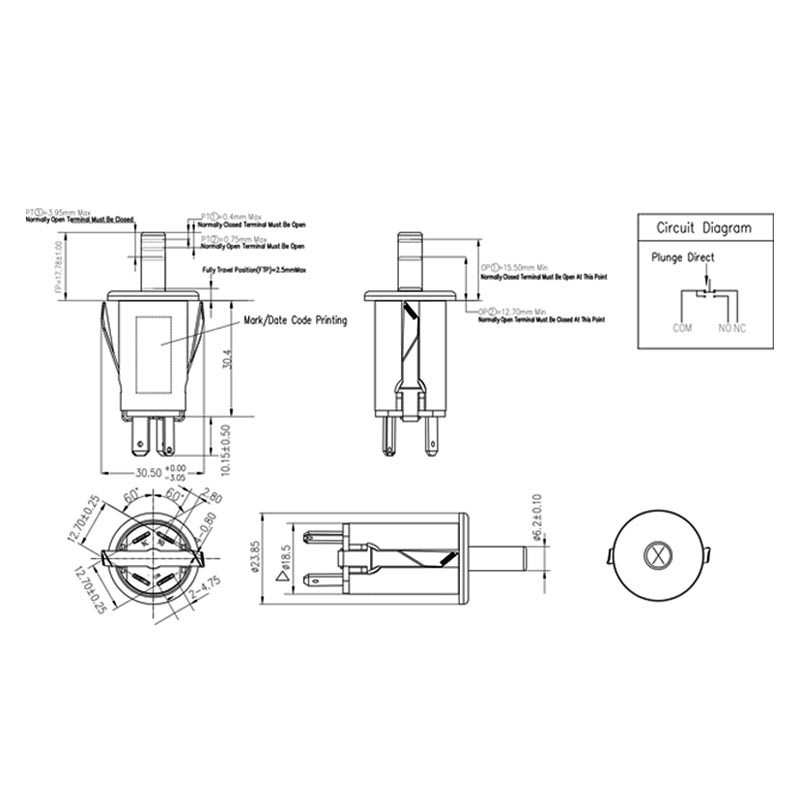

D221M-DA2-01 Range Oven Door Switch Specification
| Electrical Rating | 2A 125/250VAC |
| Operating Temp | -25℃ to +200℃ |
| Mechanical Life | 200,000 cycles Min. |
| Contact Resistance | 50mΩ Max. (initial) |
| Operating Force | 850gf Max. |
| Insulation Resistance | 100ΩM Min. |
| Dielectric Strength | 1500VAC for 60 ± 5 sec. |
| Housing: | UL 94 V-0 Thermoplastic |
