Short Description

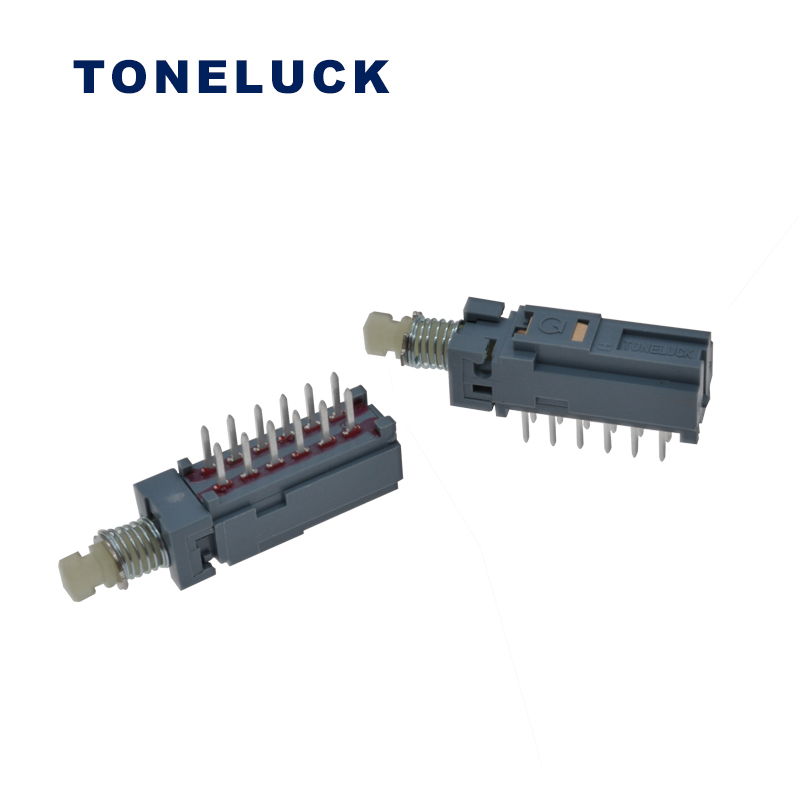

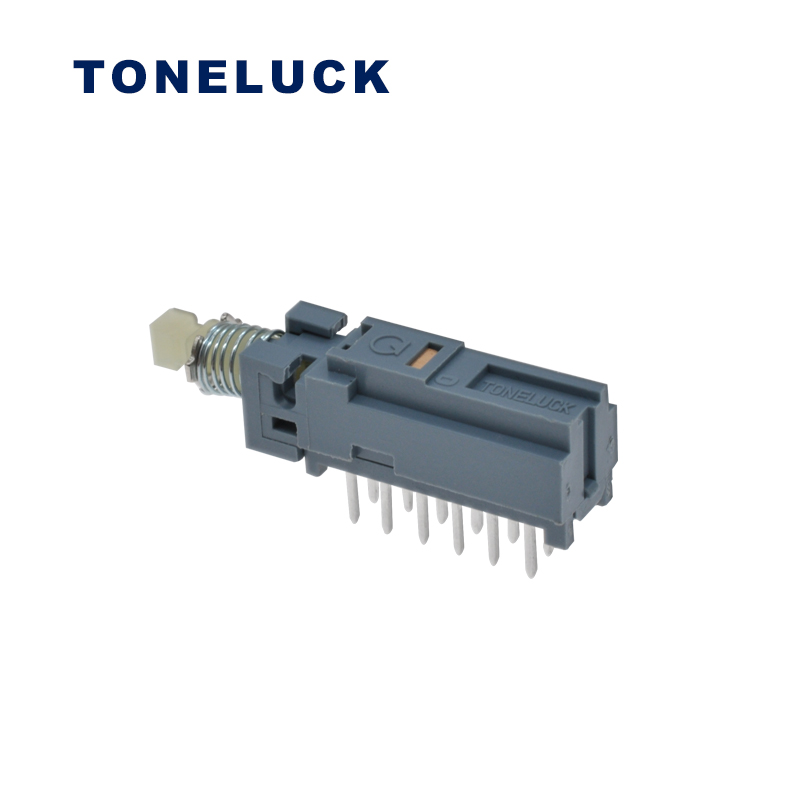

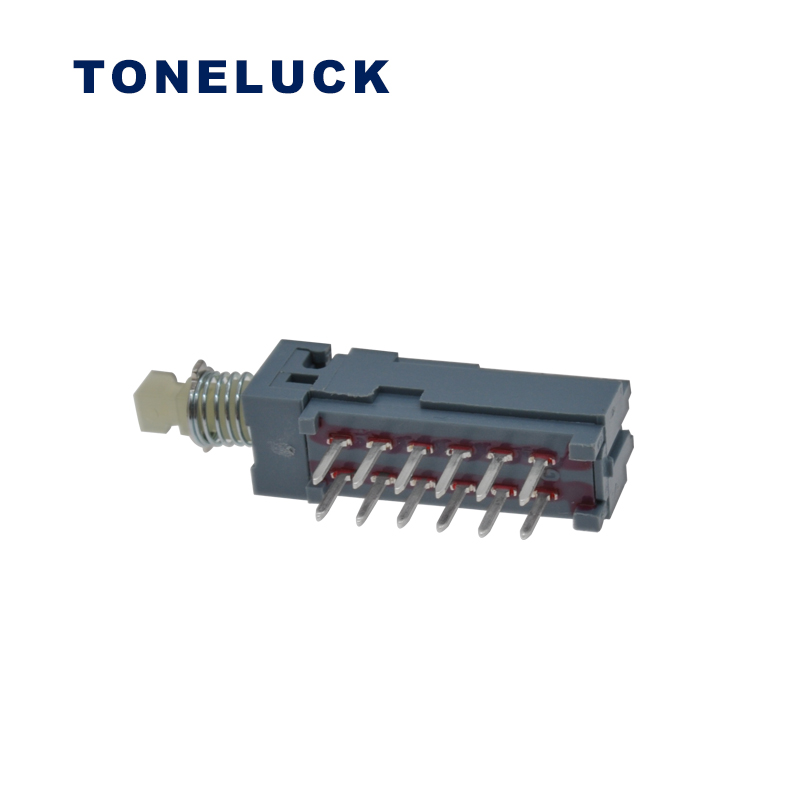

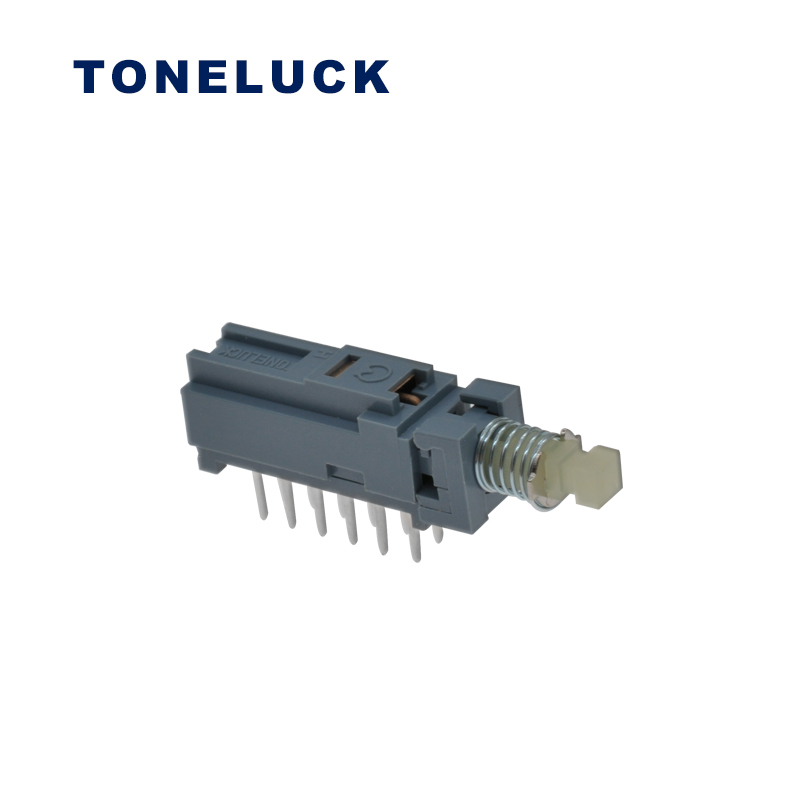

PCB Mount Push Button Switch MPN 0.1A 30VDC 4 Poles 10E4

  • MPN Push Button ON OFF Switches

  • Product name: MPN-S4-A

  • Product applications: Precision instruments, industrial equipment, household appliances, etc.

SEND EMAIL TO US
DOWNLOAD AS PDF

Details Description

PCB Mount Push Button Switch MPN 0.1A 30VDC 4 Poles 10E4

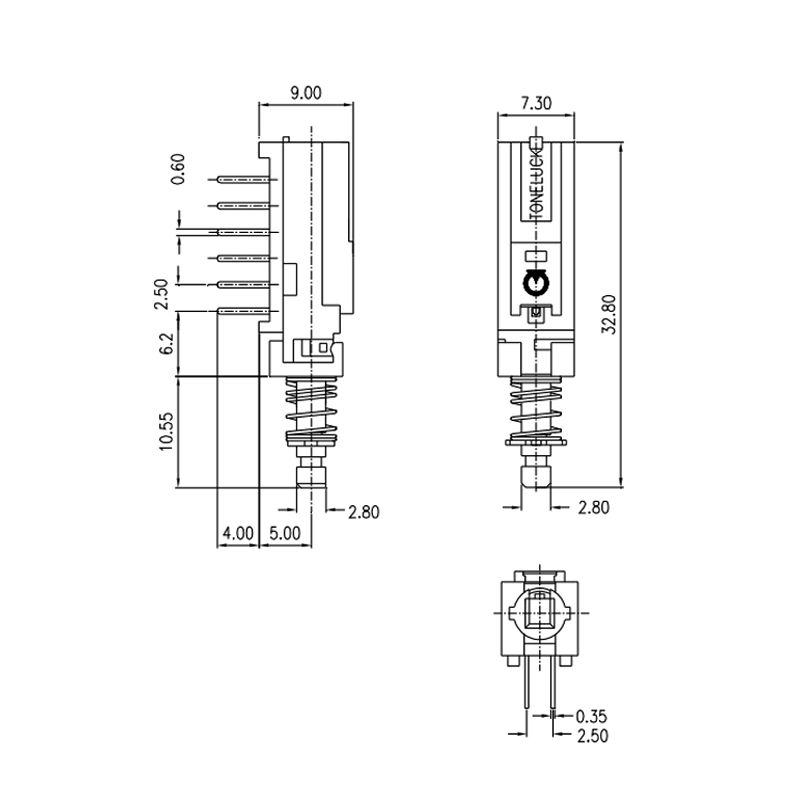

Specification

Model No. MPN-S4-A
Operation Force (OP) 280±100gf
Pre-Travel (PT) 2±0.3mm
Total-Travel (PT) 3±0.3mm
Switching Type Non-short Circuit
Lock Type Self-Lock
Operation Position (OP) 10.2±0.3 mm
Temperature -10 to 60℃
Rating 0.1A/30 VDC
Contact Resistance 50mΩ Max.
Insulation Resistance  100mΩ Min.
Dielectric Strength 500 VAC
