Double Pole Push Button Switch
We supply the double pole push button switch with the best price and best quality, Tonelcuk is a group company since 1976, which is a reached-experience and professional switch leading manufacturer in China!
Product Model: MPN-N2D-A
Product applications: Precision instruments, industrial equipment, household appliances, etc.
Double Pole Push Button Switch Description

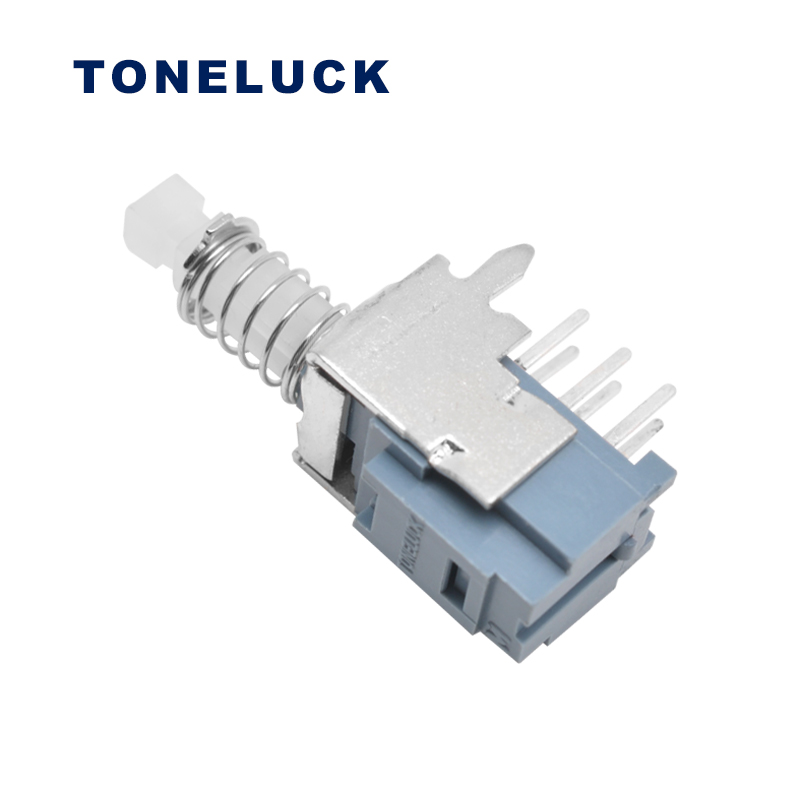

The MPN-N2D-A is a double pole push button switch with 6-pin PCB terminals so that it will be installed in the PCB plate generally. This 2-pole button switch’s electrical rating is 0.1A 30 VDC with the 10T60 working temperature requirement. In fact, this item is the non-lock that is the momentary push-button switch which means it will reset immediately when release it.
Meanwhile, we use the UL94 V-0 thermoplastic as the shell material to make sure safety when a short circuit happens, the material can reduce the fires happening.
All in all, Tonelcuk is a group company since 1976, which is a reached-experience and professional switch leading manufacturer in China! Welcome to contact us to discuss the business relationship with us.
Double Pole Push Button Switch Parameters
| Electrical Rating | 0.10A 30VDC 10,000 cycles |
| Operating Temp | -10ºC to 60ºC |
| Operating Force | 240 +/- 100gf |
| Contact Resistance | 50mΩ Max. (initial) |
| Insulation Resistance | 100ΩM Min. |
| Dielectric Strength | 500VAC for 60 ± 5 sec. |
| Travel-to-lock | 2.0mm |
| Total Travel | 3.0mm |
| Housing: | UL94 V-0 Thermoplastic |
