Short Description

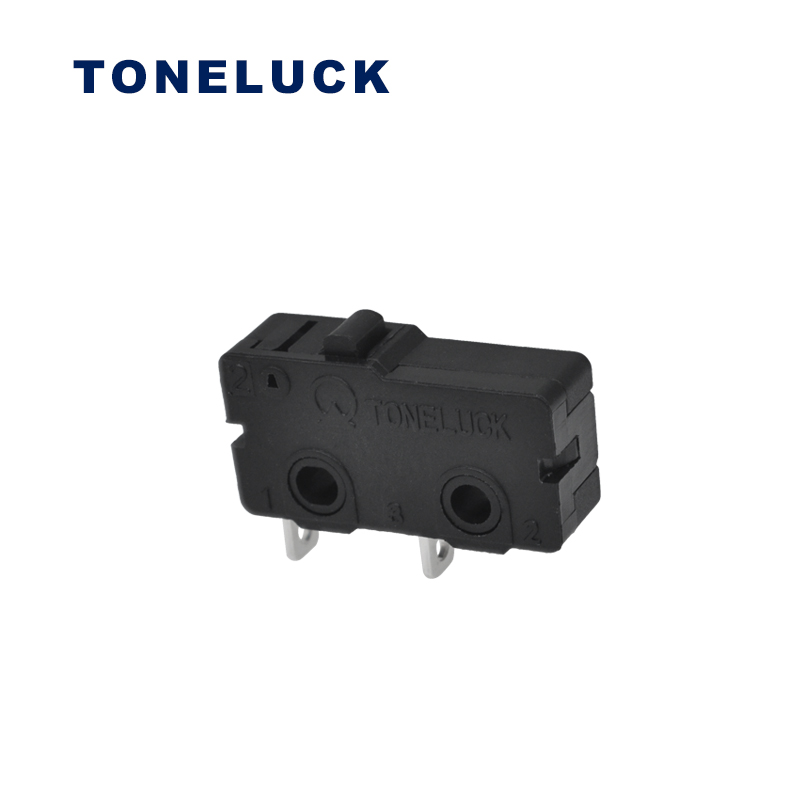

This Toneluck MQS-1 is a single pole single throw normally open microswitch with a rating of 3A 125/250VAC(ENEC & CQC) 5A 125VAC(UL).

  • MQS-1 Microswitch

  • Product name: MQS-1CAF400-S01

  • Product applications:Smart homes such as multi-function telephones, large-scale mixing consoles, household gas appliances, washing machines, dishwashers, etc.; new energy vehicle charging guns, car air conditioning controllers, car door locks, car sensors, and other automotive markets.

SEND EMAIL TO US
DOWNLOAD AS PDF

Details Description

This Toneluck MQS-1 is a single pole single throw normally open micro switch with a rating of 3A 125/250VAC(ENEC & CQC) 5A 125VAC(UL). Meanwhile, the product design with the standard of IEC61058 and UL1054. It not only has the ROHS but also has the REACH certifications.

Besides, if you need other parameters or have other requirements, such as a different lever, terminal,  wire with connector, and so on. Welcome to contact us freely.

Specification

Model No. MQS-1CAF400-S01
Operating Temperature -40℃ to +85℃
Rating 3A 125/250VAC (ENEC, CQC)  50,000 cycles Min.

5A 125VAC (UL, cUL)  6000 cycles Min.

Mechanical Life 500,000 cycles Min.
Insulation Resistance 100ΩM Min.
Dielectric Strength 1000VAC for 60 ± 5 sec.
Housing UL 94V-0 Thermoplastic
Contact Silver
Operation Force (OP) 230±40gf
Release Force (RP) 55 gf Min.
Pre-Travel (PT) 0.8mm Max.
Over- Travel (OT) 0.5mm Min.
Movement-Differential (DT) 0.2mm Max.
Operation Position (OP) 8.4±0.3 mm
