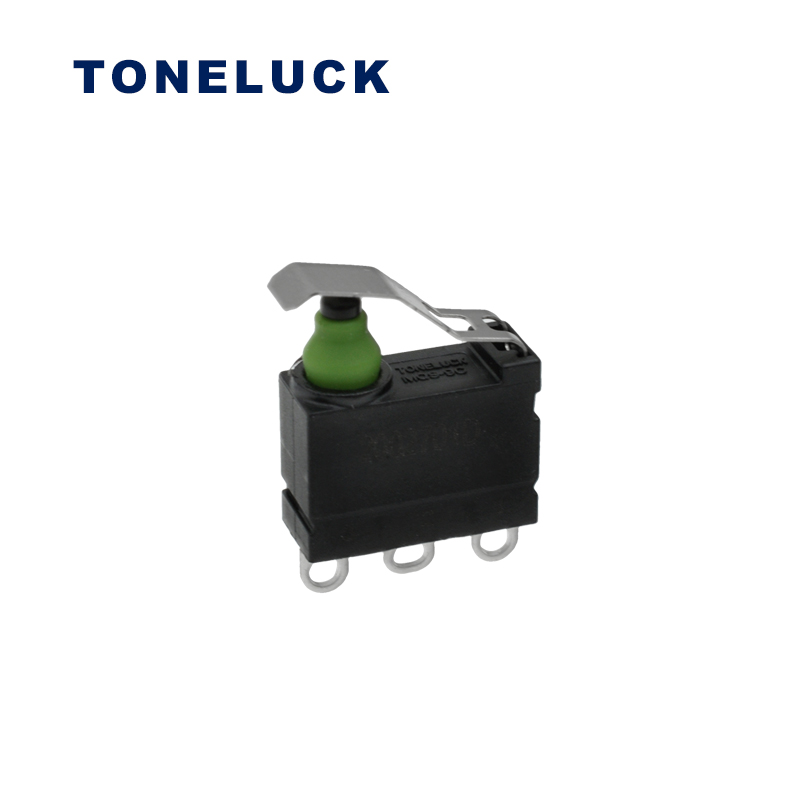

microswitch ip67 2 microswitch ip67 2

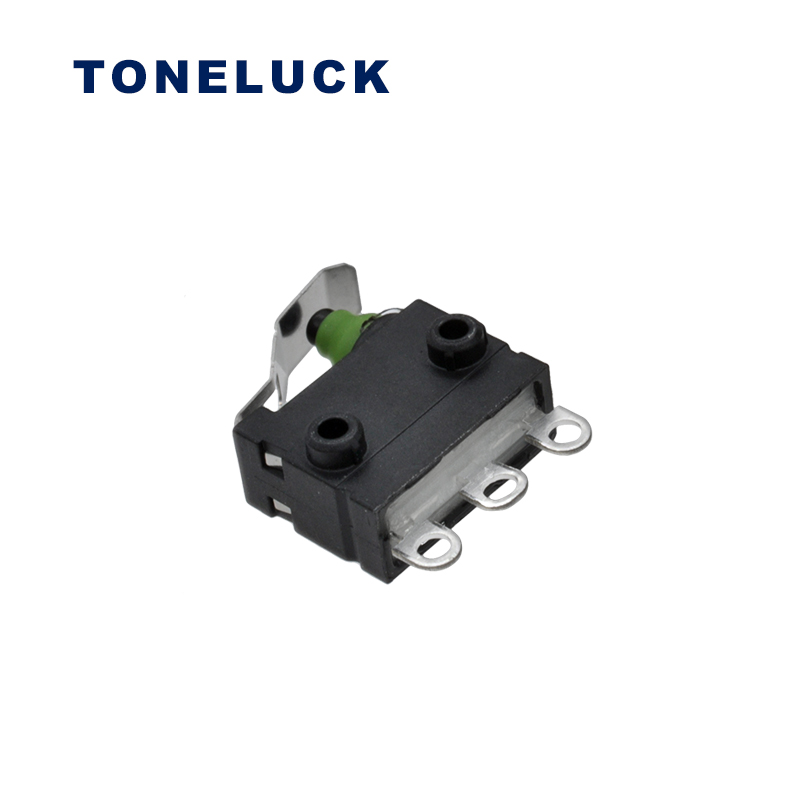

microswitch ip67 3 microswitch ip67 3

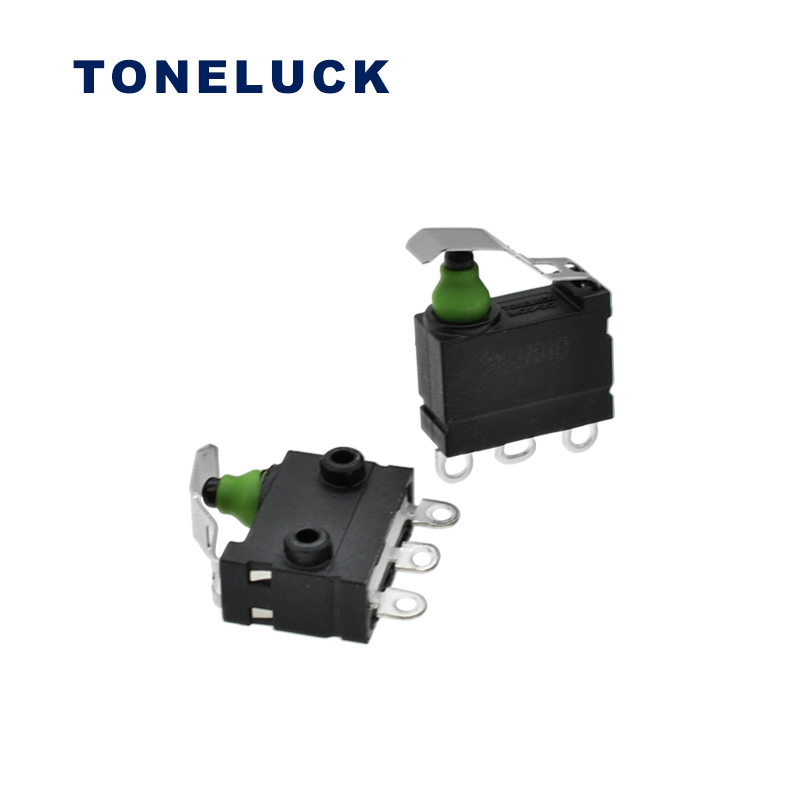

microswitch ip67 4 microswitch ip67 4

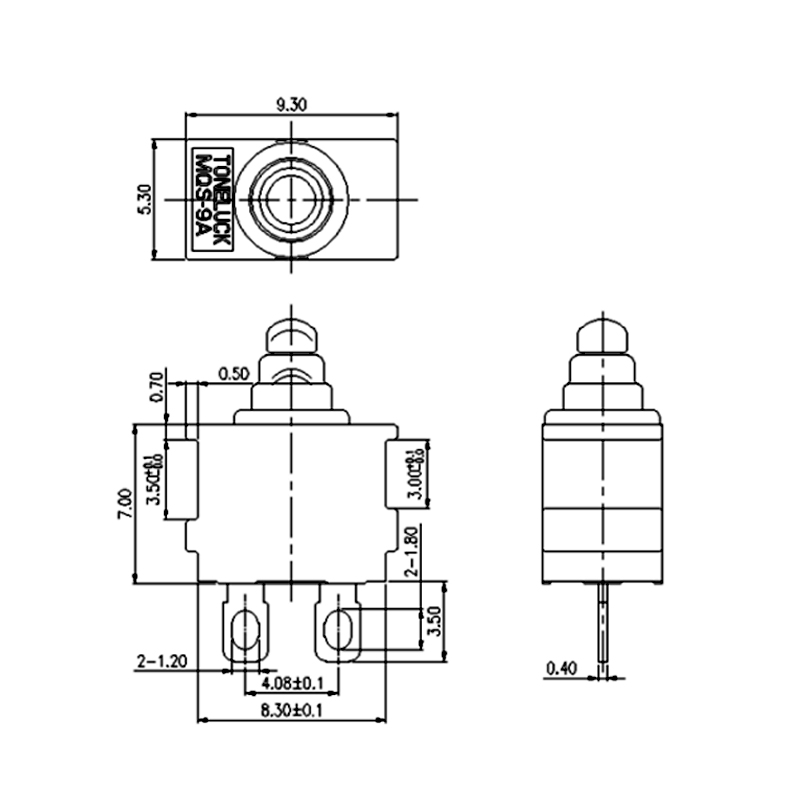

microswitch ip67 5 microswitch ip67 5

Short Description

High Quality Subminiature Level Microswitch IP67 Waterproof with ENEC UL

  • MQS-9C series micro switch

  • Product name: MQS-9CDD01-01

  • Product applications: Smart homes such as multi-function telephones, large-scale mixing consoles, household gas appliances, washing machines, dishwashers, etc.; new energy vehicle charging guns, car air conditioning controllers, car door locks, car sensors, and other automotive markets.

SEND EMAIL TO US
DOWNLOAD AS PDF

Details Description

High Quality Subminiature Level Microswitch IP67 Waterproof with ENEC UL

Specification

Electrical Rating 10~50mA 12~24 VDC 250,000 cycles Min.
Operating Temp -40℃ to +85℃
Mechanical Life 500,000 cycles Min.
Contact Resistance 50mΩ Max. (initial)
Operating Force 150gf Max.
Insulation Resistance 100ΩM Min.
Dielectric Strength 500VAC for 60 ± 5 sec.
Housing: UL 94 HB Thermoplastic (Base)
UL 94 HB Thermoplastic (Cover)
