Short Description

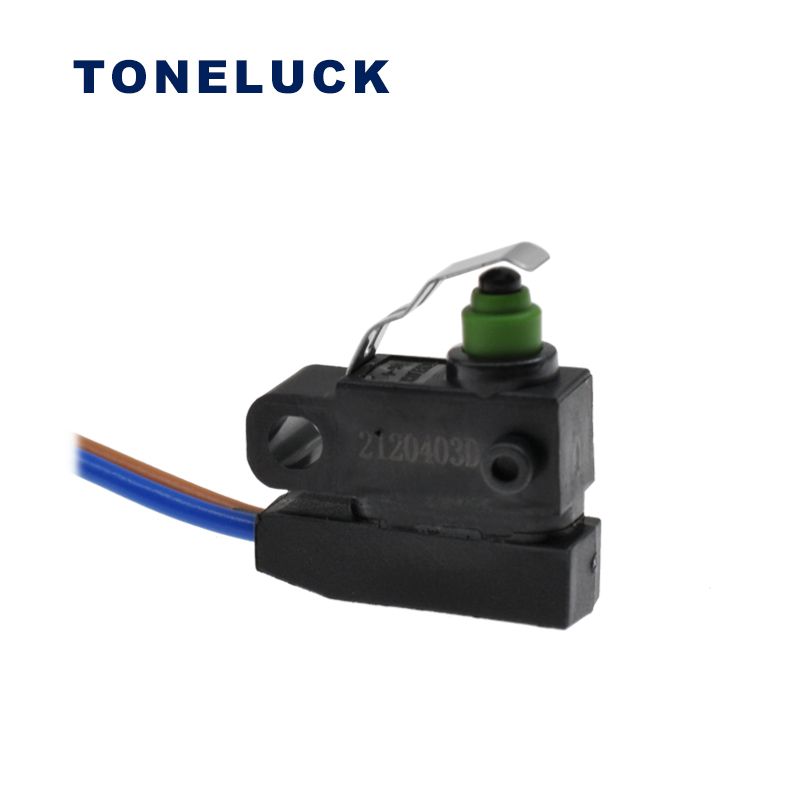

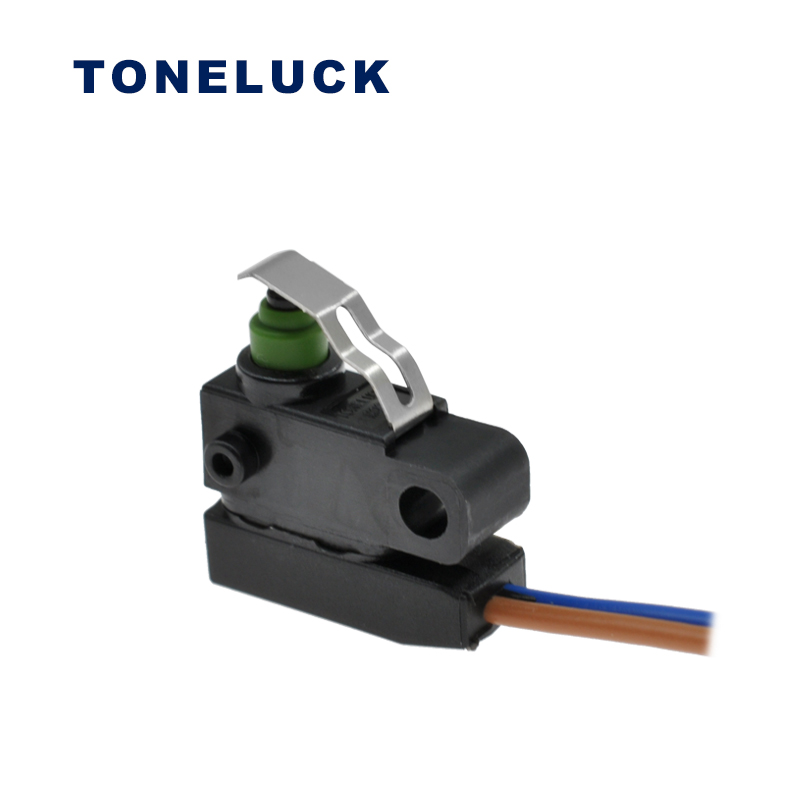

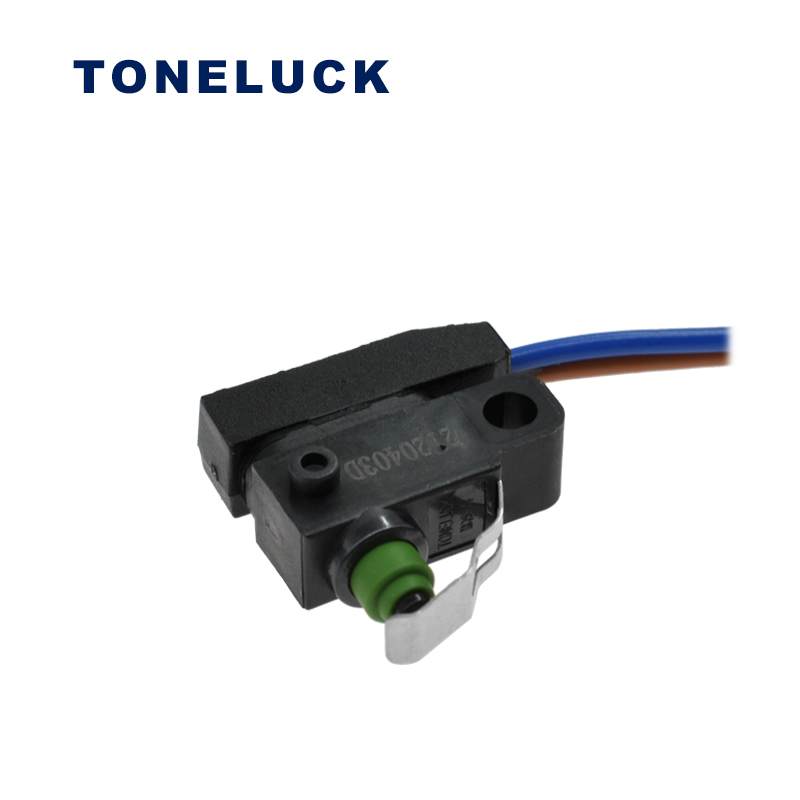

This is a waterproof micro switch for wiring on the automobile part, crane, etc. Meanwhile, it is a waterproof function with IP67 protection.

  • MQS-4 Waterproof Micro Switch

  • Product name: MQS-434MWH03

  • Product applications: automobile parts, cranes, household gas appliances, washing machines, dishwashers, and other smart homes; new energy vehicle charging guns, car air conditioning controllers, car door locks, car sensors, and other automotive markets.

SEND EMAIL TO US
DOWNLOAD AS PDF

Details Description

This is a waterproof microswitch for wiring on the automobile part, crane, etc. Meanwhile, it is a waterproof function with IP67 protection.

Specification

Model No. MQS-434MWH03
Operating Temperature -40℃ to +85℃
Rating 2A 12VDC 100000Min

2A 24VDC 50000Min

Mechanical Life 100,000 cycles Min.
Insulation Resistance 100ΩM Min.
Dielectric Strength 500VAC for 50 ±60HZ
Housing UL 94V-0 Thermoplastic
Contact Silver
Lever Type Without Lever
Operation Force (OP) 200~550gf
Release Force (RP) 100~300gf
Pre-Travel (PT) 0.5~2mm
Movement-Differential (DT) 0.1~0.5mm
Free Position(FP) 10.6~11.6mm
