Interlock Microswitch Short Description

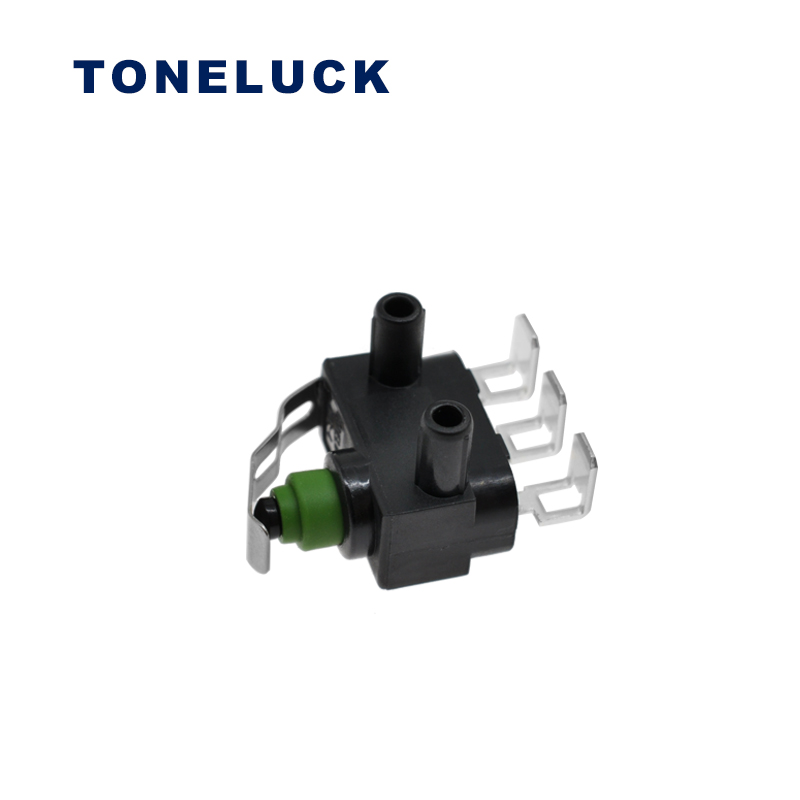

Toneluck MQS-42 is an SPDT lever interlock microswitch with a waterproof actuator and metal lever, which has a certificated rating in 2A 12V 24VDC 40T85.
MQS-4 Waterproof Micro Switch

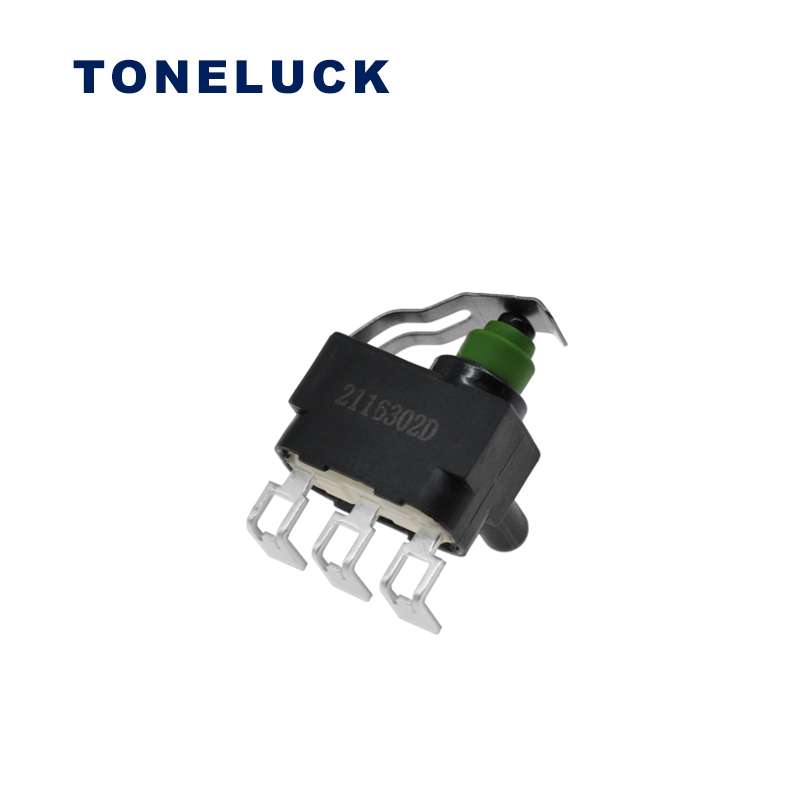

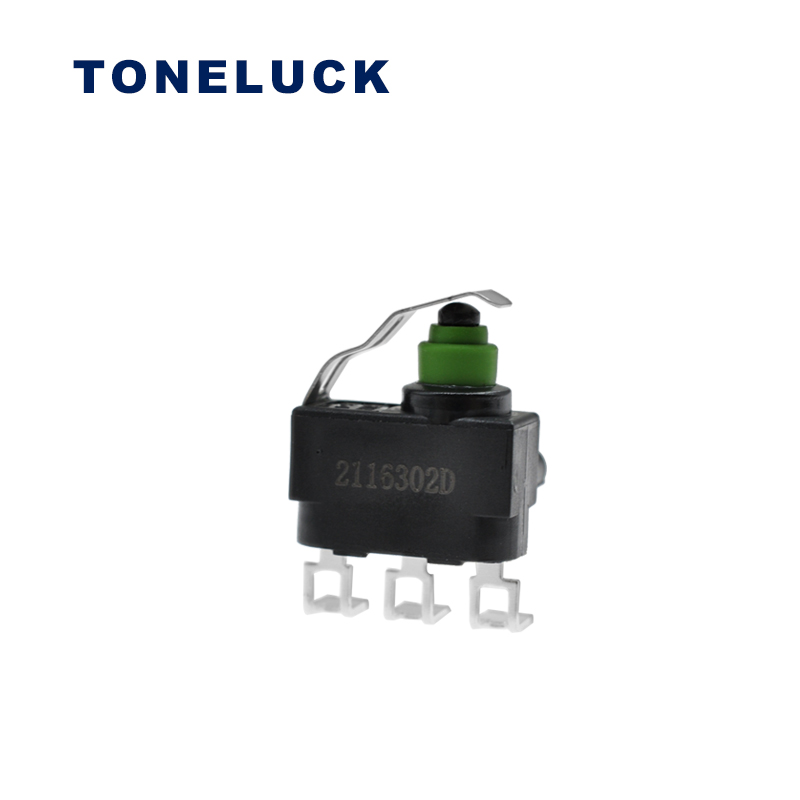

Product name: MQS-421HK03
Product applications: Smart homes such as multi-function telephones, large-scale mixing consoles, household gas appliances, washing machines, dishwashers, etc.; new energy vehicle charging guns, car air conditioning controllers, car door locks, car sensors, and other automotive markets.
Interlock Microswitch Details Description
Toneluck MQS-42 is an SPDT lever interlock microswitch with a waterproof actuator and metal lever, which has a certificated rating in 2A 12V and 2A 24VDC 40T85. Meanwhile, in different ratings, our MQS-4 micro switch also has its mini electrical life. For example, in 2A/12VDC, 40T85 is 100000 cycles, in 2A/24VDC, 40T85 is 50000 cycles, in 10mA/12VDC, 40T85 is 250000 cycles, in 0.1mA/250VAC, 40T85 is 50000 cycles, in 0.5mA/250VAC, 40T85 is 10000 cycles. In fact, the smaller rating it meets, the longer the electrical life it will be.
Specification
| Electrical Rating | 10~50mA 12~24 VDC 250,000 cycles Min. |
| Operating Temp | -40℃ to +85℃ |
| Mechanical Life | 500,000 cycles Min. |
| Contact Resistance | 50mΩ Max. (initial) |
| Operating Force | 150gf Max. |
| Insulation Resistance | 100ΩM Min. |
| Dielectric Strength | 500VAC for 60 ± 5 sec. |
| Housing: | UL 94 HB Thermoplastic (Base) UL 94 HB Thermoplastic (Cover) |
