Short Description

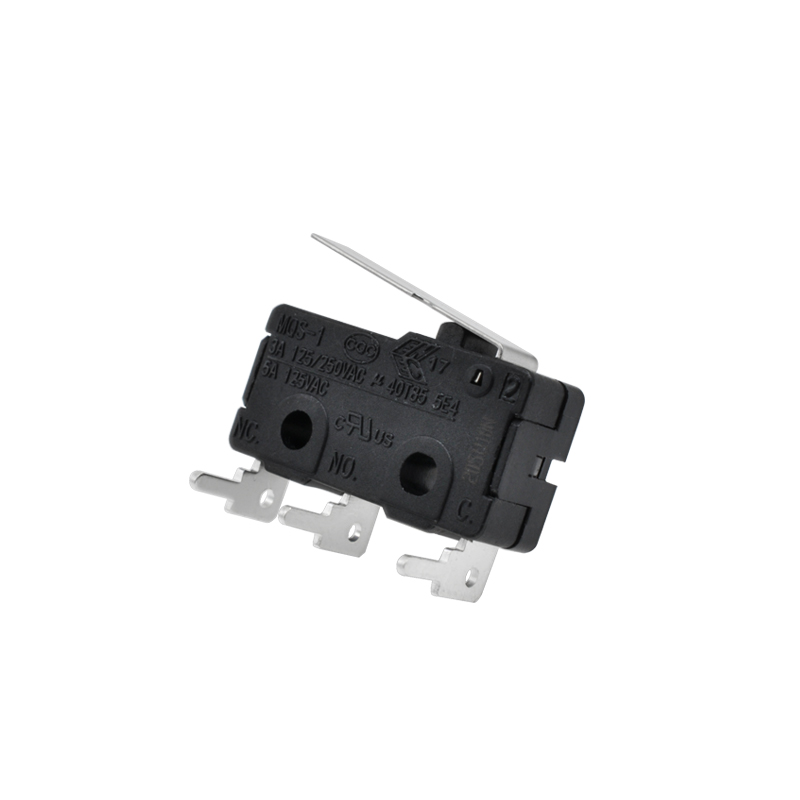

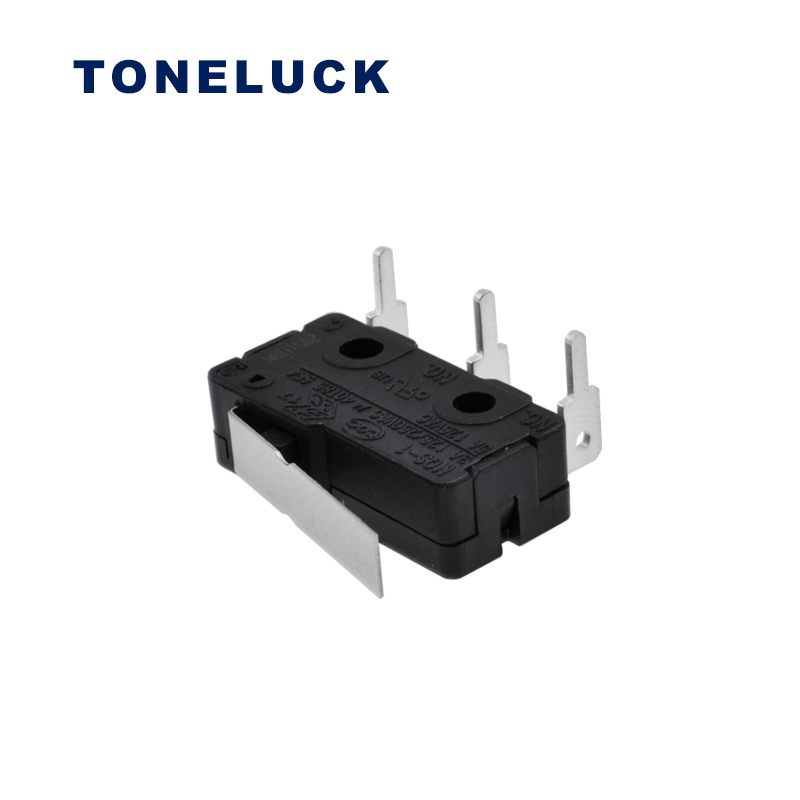

Micro Switch T85 5E4 UL 5A 125VAC SPDT Free Sample

  • MQS-1 Microswitch

  • Product name: MQS-1ABF302-S01

  • Product applications: multi-function telephones, large-scale mixers, household gas appliances, washing machines, dishwashers and other smart homes; new energy vehicle charging guns, car air conditioning controllers, car door locks, car sensors and other automotive markets.

SEND EMAIL TO US
DOWNLOAD AS PDF

Details Description

This is a right PCB SPDT terminal micro switch T85 with hinge lever and it has the certification of UL, ENEC, CQC in 5A 125VAC, 3A 125/250VAC. Which can be used in the printed circuit board.

Specification

Model No. MQS-1ABF302-S01
Operating Temperature -40℃ to +85℃
Rating 3A 125/250VAC (ENEC, CQC)  50,000 cycles Min.

5A 125VAC (UL, cUL)  6000 cycles Min.

Mechanical Life 500,000 cycles Min.
Insulation Resistance 100ΩM Min.
Dielectric Strength 1000VAC (50~ 60 HZ)
Housing UL 94V-0 Thermoplastic
Contact Silver
Lever Type Without Lever
Operation Force (OP) 40±15gf
Release Force (RP) 8gf Min.
Pre-Travel (PT) 4.2mm Max.
Over- Travel (OT) 1.0mm Min.
Movement-Differential (DT) 1.0mm Max.
Operation Position (OP) 8.9±1.7mm
Free Position(FP) 12.8mm Max.
