Micro Switch T125 5E4 Short Description
Micro Switch T125 5E4 is available from us, as a microswitch manufacturer in China. We not only can produce all kinds of switches type but also provide the switch datasheet and catalog to you.
MQS-2 Limit Micro Switch
Product name: MQS-203TN00AAM-01
Product applications: Smart hold applianceshomes such as multi-function telephones, large-scale mixing consoles, household gas appliances, washing machines, dishwashers, etc.; new energy vehicle charging guns(EV charger), car air conditioning controllers, car door locks, car sensors, and other automotive markets, and so on.
Details Description of Micro Switch T125 5E4 |

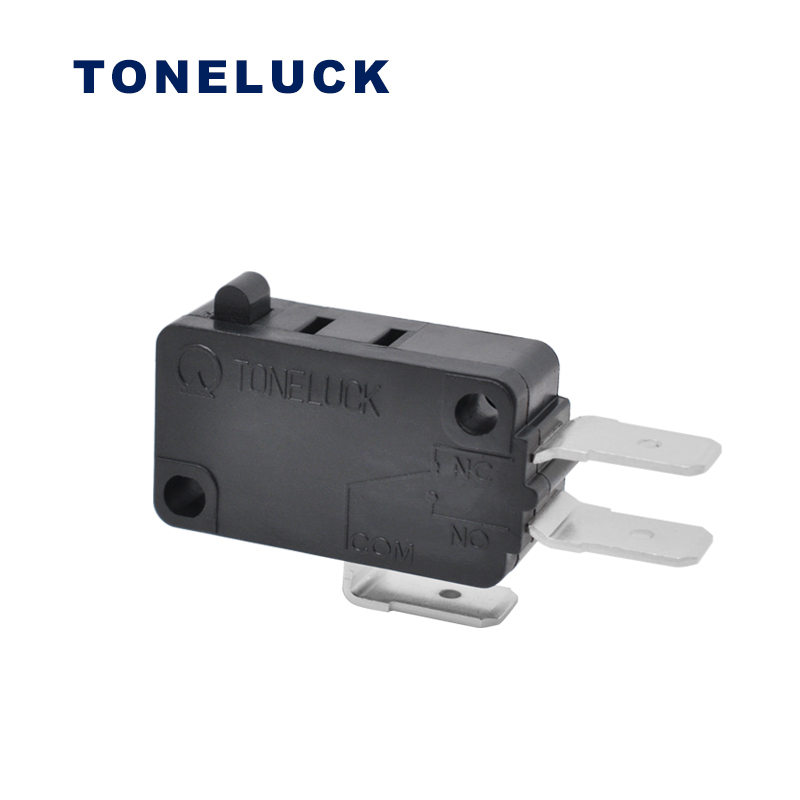

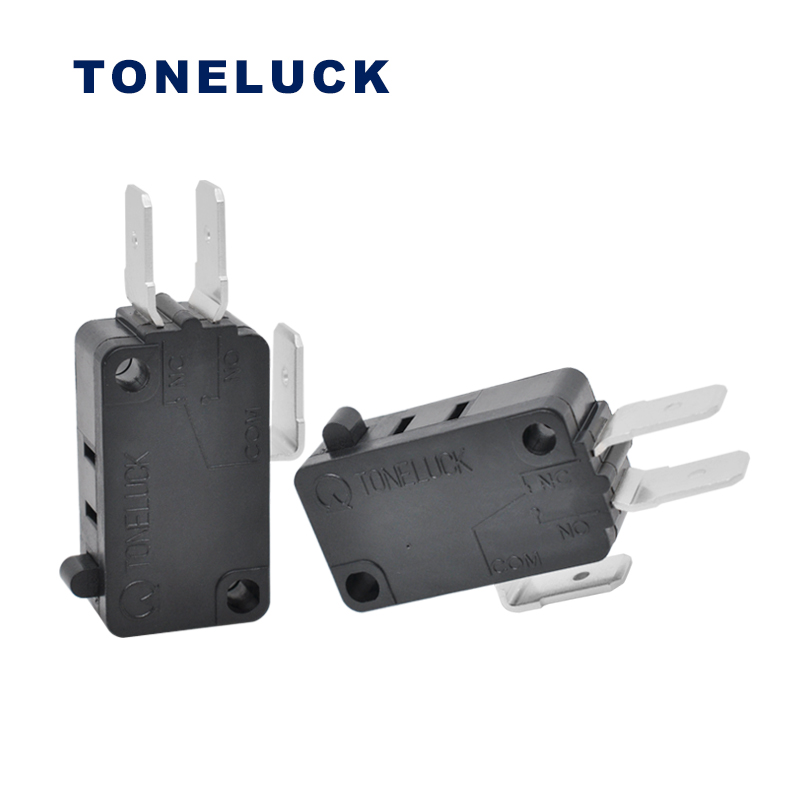

Micro Switch T125 5E4 is available from us, the model of MQS-203TN00AAM-01 is one of the microswitch that can meet its requirement. Which is an SPDT type snap action switch with the 250# quick connect terminals. Meanwhile, the model also has ENEC, CQC, UL, and CUL certifications to ensure the switch quality and rating. As a switch manufacturer, we not only can produce all kinds of switches type but also provide the switch datasheet and catalog to you. Welcome to contact us to have more details.
For more Toneluck switches, welcome to click the link to see more.
Micro Switch T125 5E4 Specification
| Model No. | MQS-216SA02BAM-01 |
| Operating Temperature | -40℃ to +85℃ |
| Rating | 16A 125/250VAC;1/2HP 125VAC;3/4HP 250VAd
0.4A 125VDC;0.2A 250VDC;10.1A 125VL 16 (4)A 125/250VAC |
| Mechanical Life | 500,000 cycles Min. |
| Insulation Resistance | 100ΩM Min. |
| Dielectric Strength | 1000VAC for 60 ± 5 sec. |
| Housing | UL 94V-0 Thermoplastic |
| Contact | Silver |
| Lever Type | Without Lever |
| Operation Force (OP) | 75±20gf |
| Release Force (RP) | 30gf Min. |
| Pre-Travel (PT) | 3.3mm Max. |
| Over- Travel (OT) | 2.5mm Min. |
| Movement-Differential (DT) | 1.2mm Max. |
| Operation Position (OP) | 15.3±1.5 mm |
