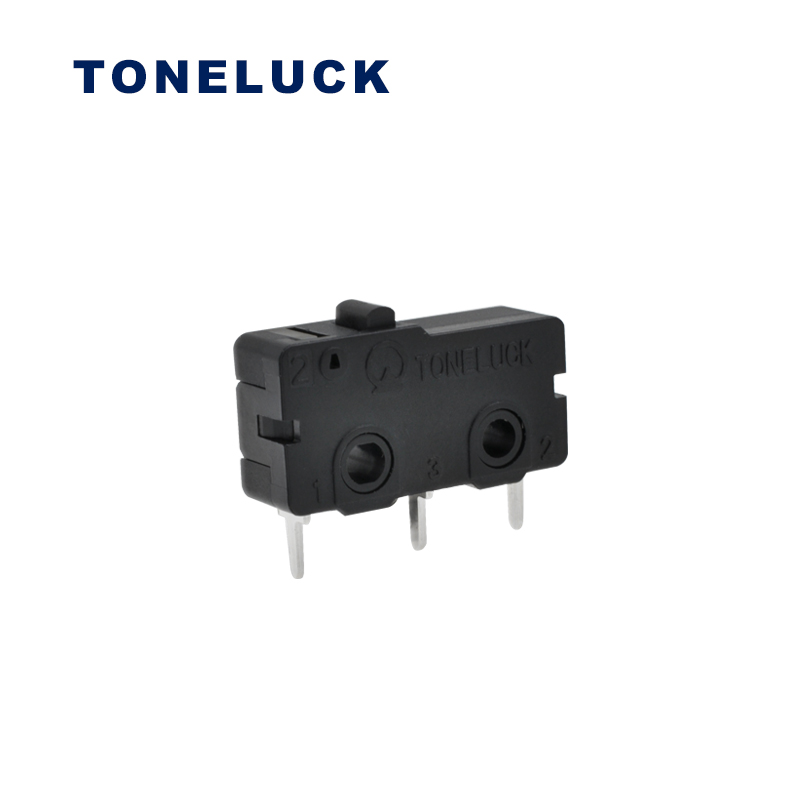

micro switch pcb 1 micro switch pcb 1
micro switch pcb 2 micro switch pcb 2
micro switch pcb 3 micro switch pcb 3
micro switch pcb 4 micro switch pcb 4

Short Description

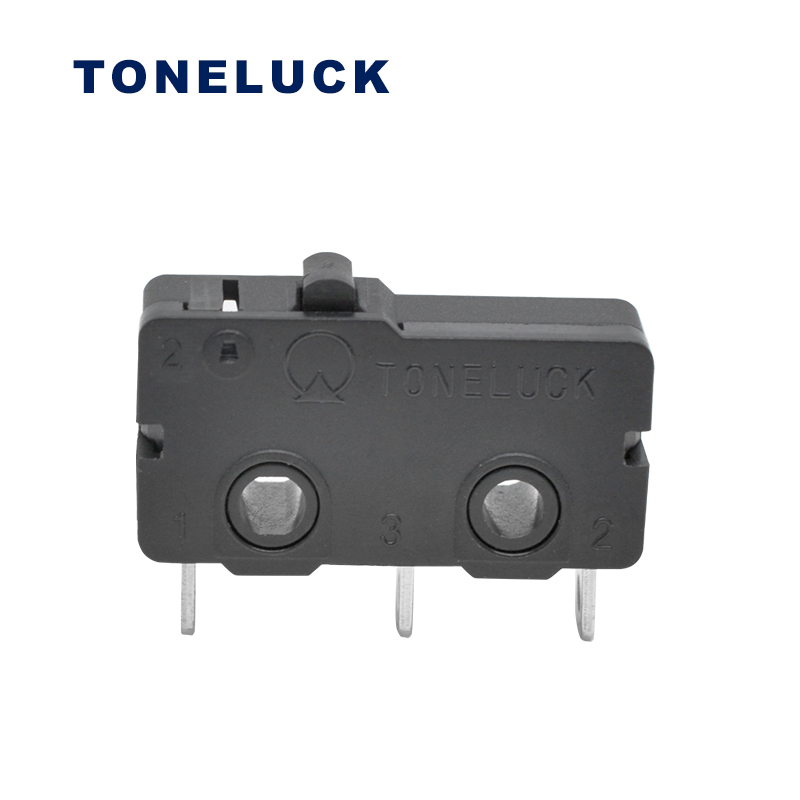

Micro Switch PCB Mount SPDT 40T125 10 A 125/250V UL ENEC CQC

  • MQS-1 Microswitch

  • Product name: MQS-14APF400

  • Product applications:Smart homes such as multi-function telephones, large-scale mixing consoles, household gas appliances, washing machines, dishwashers, etc.; new energy vehicle charging guns, car air conditioning controllers, car door locks, car sensors, and other automotive markets.

SEND EMAIL TO US
DOWNLOAD AS PDF

Details Description

Micro Switch PCB Mount SPDT 40T125 10 A 125/250V UL ENEC CQC

Specification

Model No. MQS-14APF400
Operating Temperature -40℃ to +85℃
Rating 3A 125/250VAC (ENEC, CQC)  50,000 cycles Min.

5A 125VAC (UL, cUL)  6000 cycles Min.

Mechanical Life 500,000 cycles Min.
Insulation Resistance 100ΩM Min.
Dielectric Strength 1000VAC for 60 ± 5 sec.
Housing UL 94V-0 Thermoplastic
Contact Silver
Lever Type Without Lever
Operation Force (OP) 230±40gf
Release Force (RP) 55gf Min.
Pre-Travel (PT) 0.6mm Max.
Over- Travel (OT) 0.5mm Min.
Movement-Differential (DT) 0.2mm Max.
Operation Position (OP) 8.4±0.3 mm
