Micro Switch Actuator Short Description

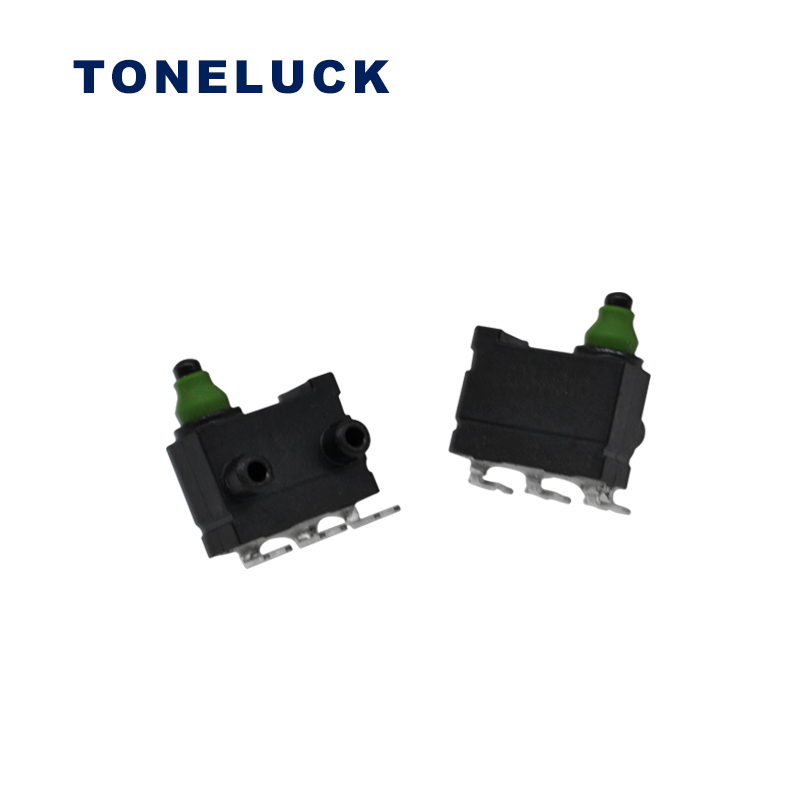

The MQS-9C1HF00-01 micro switch actuator is sealed with a waterproof ring, the rating is 100mA 30VDC SPDT, which is used in Automotive parts.

  • MQS-9C Water Proof Micro Switch

  • Product name: MQS-9C1HF00-01

  • Product applications: Smart homes such as multi-function telephones, large-scale mixing consoles, household gas appliances, washing machines, dishwashers, etc.; new energy vehicle charging guns, car air conditioning controllers, car door locks, car sensors, and other automotive markets.

SEND EMAIL TO US
DOWNLOAD AS PDF
MQS-9C1HF00-01 MQS-9C1HF00-01
MQS-9C1HF00-01 MQS-9C1HF00-01
MQS-9C1HF00-01 MQS-9C1HF00-01
micro switch actuator micro switch actuator
micro switch actuator micro switch actuator

Details Description

The MQS-9C1HF00-01 microswitch actuator is sealed with a waterproof ring, the rating is 100mA 30VDC SPDT, which is used in Automotive parts generally. For example, the car door lock or EV charger cover will use it for a signal reminder. Meanwhile, this model is not only small in size (13mm*5.4mm) but also has an IP67 water proof protection level. So it is perfect for automobile product parts.

Besides, the Min. electrical cycles in 10mA 14VDC are 200000 cycles and the Mini. mechanical cycles are 500,000 cycles by the UL, cUL, ENEC, CQC. So, it is of high quality with long life.

Specification

Electrical Rating 10~50mA 12~24 VDC 250,000 cycles Min.
Operating Temp -40℃ to +85℃
Mechanical Life 500,000 cycles Min.
Contact Resistance 50mΩ Max. (initial)
Operating Force 150gf Max.
Insulation Resistance 100ΩM Min.
Dielectric Strength 500VAC for 60 ± 5 sec.
Housing: UL 94 HB Thermoplastic (Base)
UL 94 HB Thermoplastic (Cover)
