Short Description

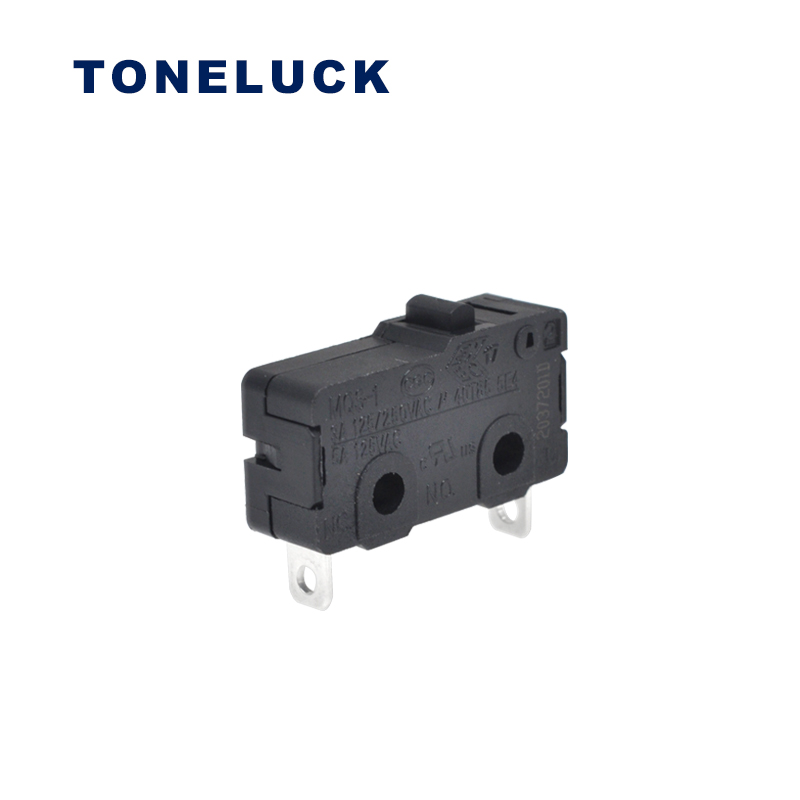

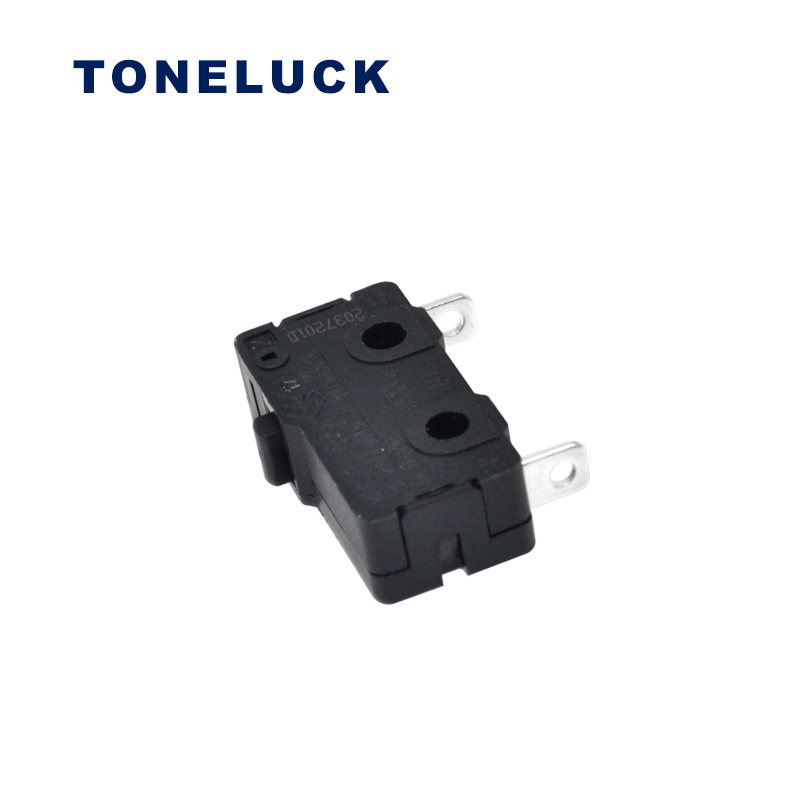

The MQS-1BAF400-S01 micro limit switch is a 40T85 normally closed with UL, cUL, ENEC, CQC certifications. The electrical life is 50,000 cycles Min. and the mechanical life is 500,000 Min.

  • MQS-1 Microswitch

  • Product name: MQS-1BAF400-S01

  • Product applications: Smart homes such as multi-function telephones, large-scale mixing consoles, household gas appliances, washing machines, dishwashers, etc.; new energy vehicle charging guns, car air conditioning controllers, car door locks, car sensors, and other automotive markets.

SEND EMAIL TO US
DOWNLOAD AS PDF

Details Description

The MQS-1BAF400-S01 limit micro switch is a 40T85 normally closed with UL, cUL, ENEC, CQC certifications. The electrical life is 50,000 cycles Min. and the mechanical life is 500,000 Min. So, it is really a long-life switch for customers to use. Meanwhile, the shell material is UL 94V-0 Thermoplastic and the contact has Ag and Au for options.

Besides, we can supply the different types of lever, contact, and terminal shapes that can be customized according to customer requirements.

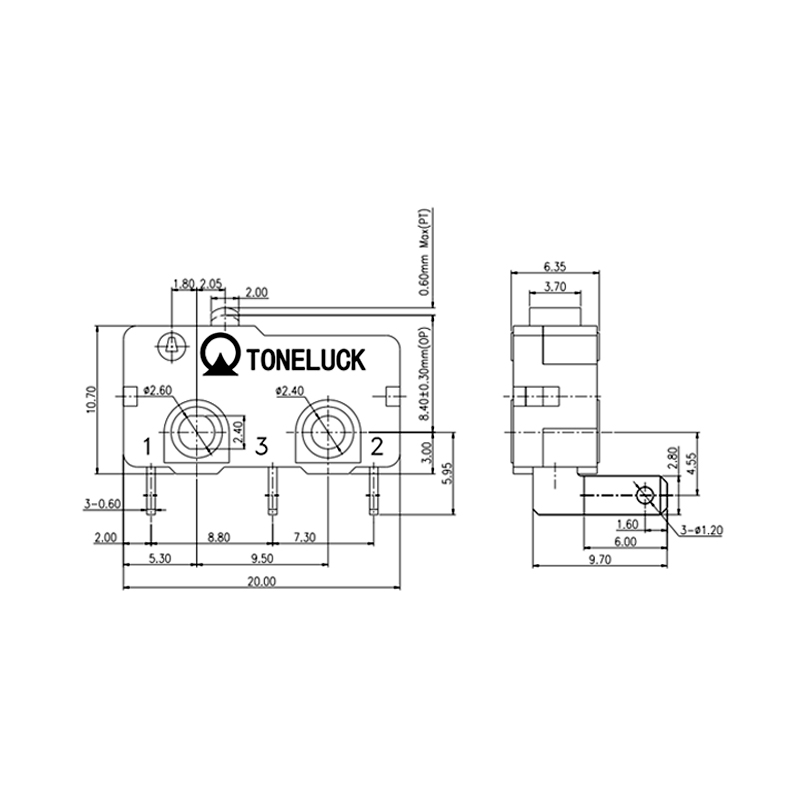

Specification

Model No. MQS-1BAF400-S01
Operating Temperature -40℃ to +85℃
Rating 3A 125/250VAC (ENEC, CQC)  50,000 cycles Min.

5A 125VAC (UL, cUL)  6000 cycles Min.

Mechanical Life 500,000 cycles Min.
Insulation Resistance 100ΩM Min.
Dielectric Strength 1000VAC for 60 ± 5 sec.
Housing UL 94V-0 Thermoplastic
Contact Silver
Operation Force (OP) 230±40gf
Release Force (RP) 55gf Min.
Pre-Travel (PT) 0.8mm Max.
Over- Travel (OT) 0.5mm Min.
Movement-Differential (DT) 0.2mm Max.
Operation Position (OP) 8.4±0.3 mm
