Project Description

MPN-S6H-A MPN-S6H-A
MPN-S6H-A MPN-S6H-A
latch push button switch latch push button switch
latch push button switch latch push button switch
latch push button switch latch push button switch

Short Description

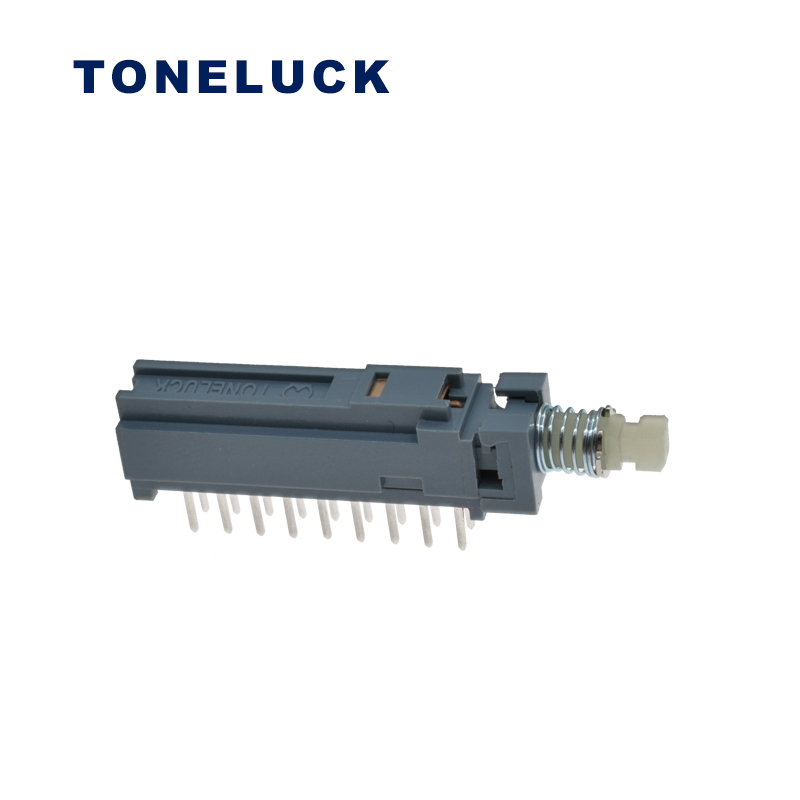

The model is the latch push-button switch with self lock function, 0.1A 30 VDC with 10,000 cycles. 6 poles 3.2mm pcb terminal.

  • MPN Push Button ON OFF Switches

  • Product name: MPN-S6H-A

  • Product applications: Precision instruments, industrial equipment, household appliances, etc…

SEND EMAIL TO US
DOWNLOAD AS PDF

Details Description

The MPN-S6H-A is the latching button switch with self-lock function, 0.1A 30 VDC with 10,000 cycles, and 6 poles 3.2mm PCB terminal. The contact is silver plated. Besides, the MPN series has 2 poles, 4 poles, and 6 poles for options so that users can according to the requirement to choose the item.

It also can install the keycap that is the MF series, if you can’t understand this point, welcome to contact us to know about it. What’s more, the switch is not according to the strict production process to manufacture but also has the RoHS, REACH, UL certification.

Specification

Electrical Rating 10~50mA 12~24 VDC 250,000 cycles Min.
Operating Temp -40℃ to +85℃
Mechanical Life 500,000 cycles Min.
Contact Resistance 50mΩ Max. (initial)
Operating Force 150gf Max.
Insulation Resistance 100ΩM Min.
Dielectric Strength 500VAC for 60 ± 5 sec.
Housing: UL 94 HB Thermoplastic (Base)
UL 94 HB Thermoplastic (Cover)
