Short Description
Interlock Micro Switch Side B Sub-miniature Sealed Water Proof IP67
MQS-4 series micro switch
Product name: MQS-421AK00
Product applications: Smart homes such as multi-function telephones, large-scale mixing consoles, household gas appliances, washing machines, dishwashers, etc.; new energy vehicle charging guns, car air conditioning controllers, car door locks, car sensors, and other automotive markets.
Details Description

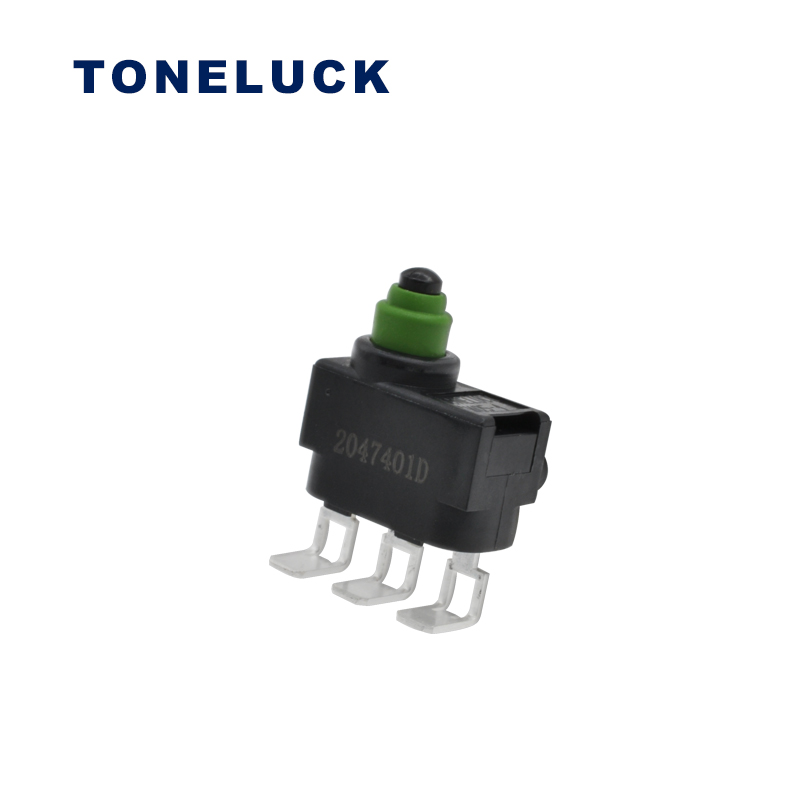

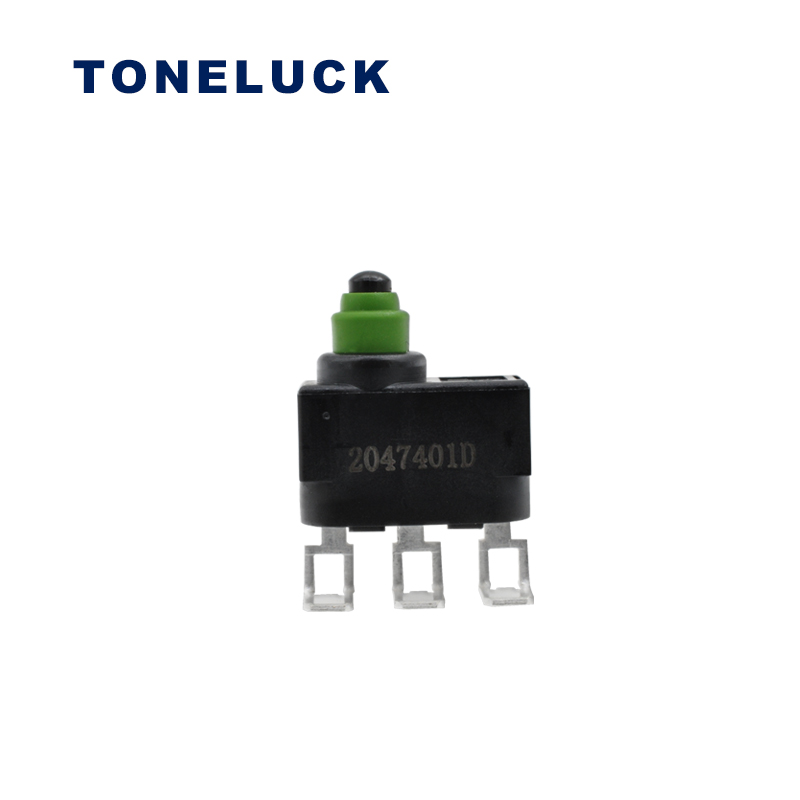

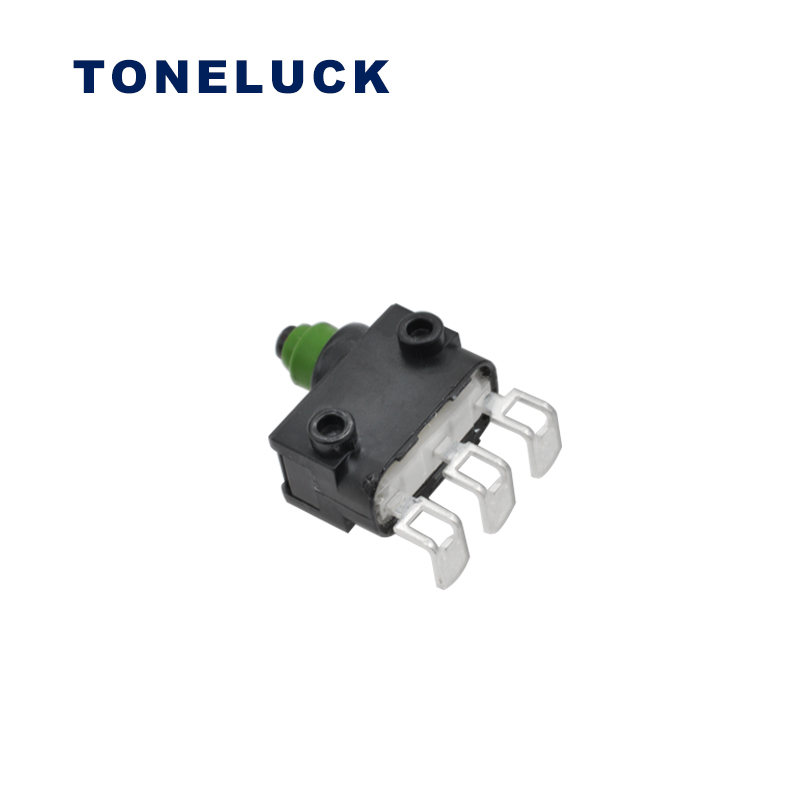

Interlock Micro Switch Side B Sub-miniature Sealed Water Proof IP67
Specification
| Model No. | MQS-421AK00 |
| Operating Temperature | -40℃ to +85℃ |
| Rating | 2A 12VDC 100,000 cycles Min.
2A 24VDC 50,000 cycles Min. |
| Mechanical Life | 1000,000 cycles Min. |
| Insulation Resistance | 100ΩM Min. |
| Dielectric Strength | 500VAC for 60 ± 5 sec. |
| Housing | UL 94V-0 Thermoplastic |
| Contact | Silver |
| Lever Type | Without Lever |
| Operation Force (OP) | 200gf Max. |
| Release Force (RP) | 50gf Min. |
| Pre-Travel (PT) | 1.2mm Max. |
| Movement-Differential (DT) | 0.4mm Max. |
| Operation Position (OP) | 9.4±0.3 mm |
| Free Position(FP) | 10.4mm Max. |
