Short Description
This is a 3 position microswitch with SPDT in a soldering terminal, and the switch has the certification of UL, ENEC, and CQC. 10A 125/250VAC.
MQS-1 series micro switch

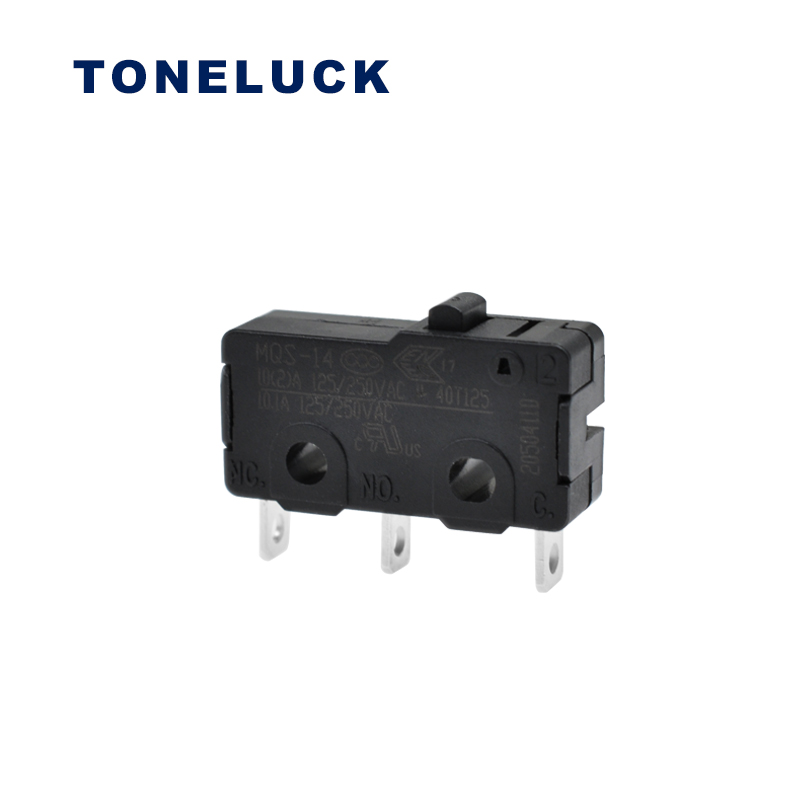

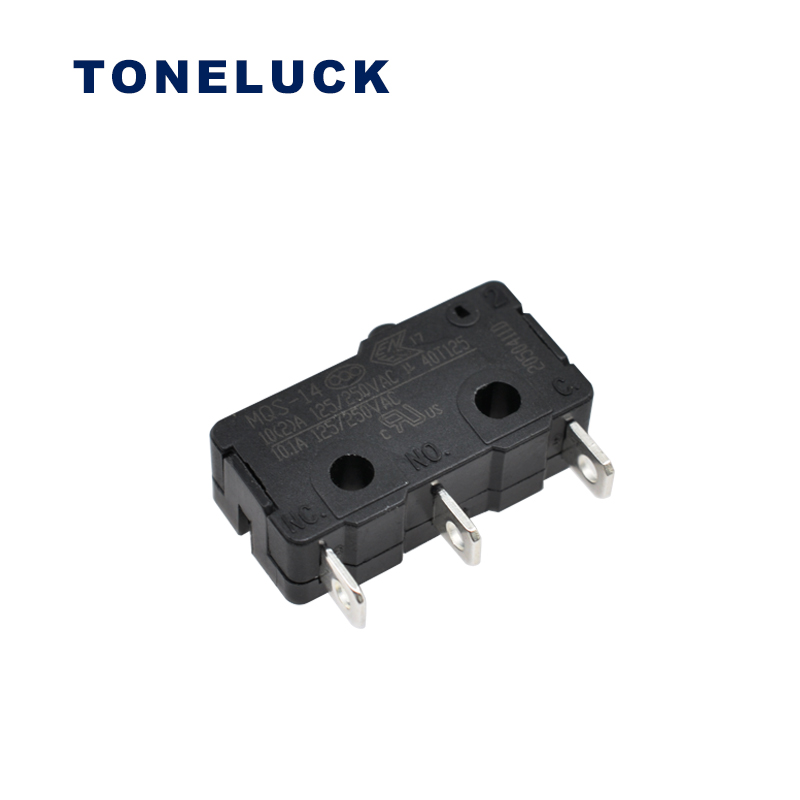

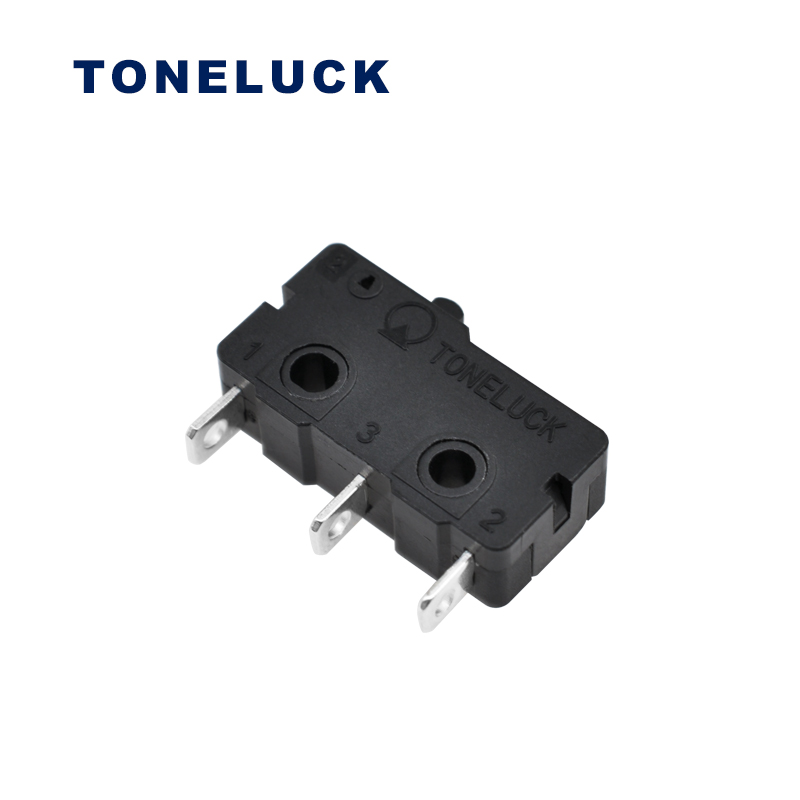

Product name: MQS-14AAF400-S01
Product applications: multi-function telephones, large-scale mixers, household gas appliances, washing machines, dishwashers and other smart homes; new energy vehicle charging guns, car air conditioning controllers, car door locks, car sensors and other automotive markets.
3 Position Micro Switch Details Description
This is a 3 position micro switch with SPDT in a soldering terminal which is very convenient and universal for engineer design in his product. Meanwhile, the switch has the certification of UL, ENEC, CQC, and so on. Besides, it had approved in a rating that is 10A 125/250VAC with 10000cycles electrical life at least. However, if your electrical current under 10A, the switch can very be closed to the mechanical life. So the service life is very very long.
What’s more, the MQS-1 series has many options and models for customers. For example, we can give you different kinds of terminals, levers, operating force, cable length, cable size, etc. according to your requirement.
For more Toneluck switches, please click the link to check.
Specification
| Model No. | MQS-14AAF400-S01 |
| Operating Temperature | -40℃ to +125℃ |
| Rating | 10(2)A 125/250VAC (ENEC, CQC) 10,000 cycles Min.
10.1A 125VAC (UL, cUL) 6000 cycles Min. |
| Mechanical Life | 500,000 cycles Min. |
| Insulation Resistance | 100ΩM Min. |
| Dielectric Strength | 1000VAC for 60 ± 5 sec. |
| Housing | UL 94V-0 Thermoplastic |
| Contact | Silver |
| Lever Type | Without Lever |
| Operation Force (OP) | 230±40gf |
| Release Force (RP) | 55gf Min. |
| Pre-Travel (PT) | 0.8mm Max. |
| Over- Travel (OT) | 0.5mm Min. |
| Movement-Differential (DT) | 0.2mm Max. |
| Operation Position (OP)（动作位置） | 8.4±0.3mm |
