Short Description

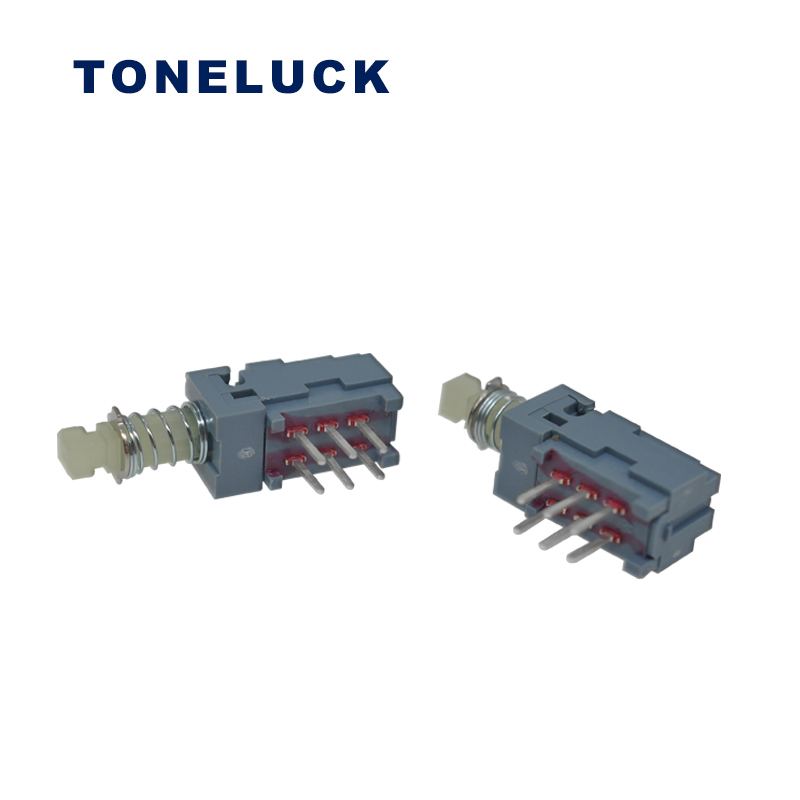

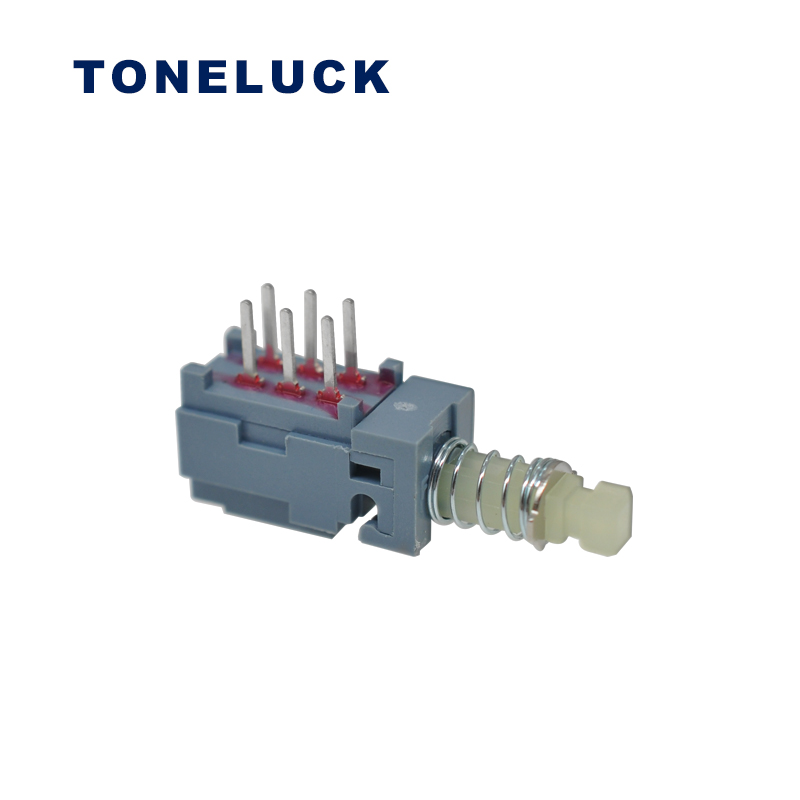

2 Pole Push Button Switch PCB NO NC 6Pin

  • MPN Push Button ON OFF Switches

  • Product name: MPN-S2-A

  • Product applications: Precision instruments, industrial equipment, household appliances, etc.

SEND EMAIL TO US
DOWNLOAD AS PDF

2 Pole Push Button Switch Details Description

2 Pole Push Button Switch PCB NO NC 6Pin, and please click the link to see more Toneluck switch products

Specification

Electrical Rating 10~50mA 12~24 VDC 250,000 cycles Min.
Operating Temp -40℃ to +85℃
Mechanical Life 500,000 cycles Min.
Contact Resistance 50mΩ Max. (initial)
Operating Force 150gf Max.
Insulation Resistance 100ΩM Min.
Dielectric Strength 500VAC for 60 ± 5 sec.
Housing: UL 94 HB Thermoplastic (Base)
UL 94 HB Thermoplastic (Cover)
