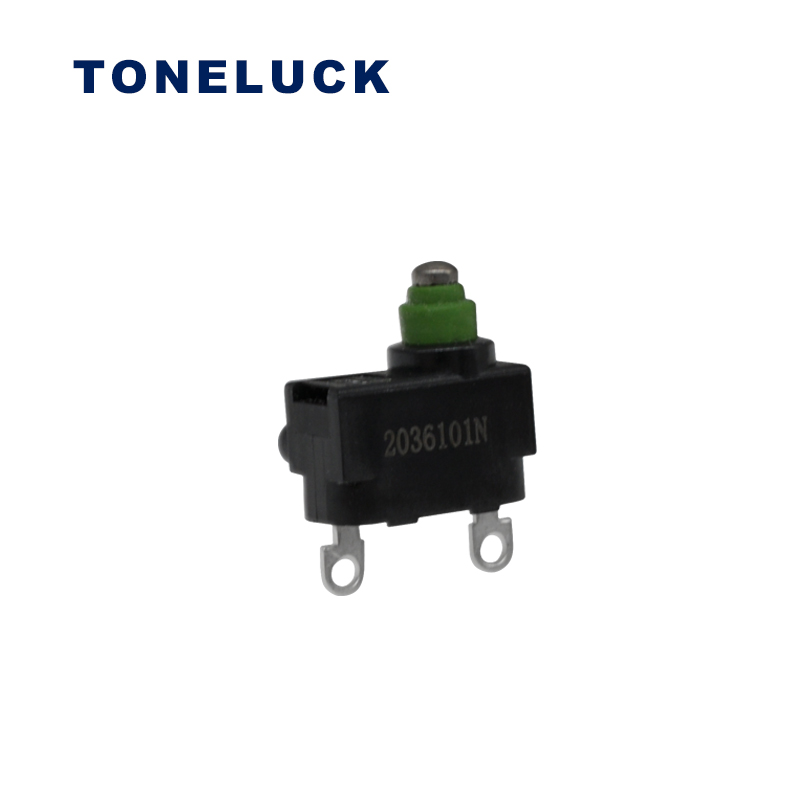

12 volt micro switch 1 12 volt micro switch 1
12 volt micro switch 2 12 volt micro switch 2

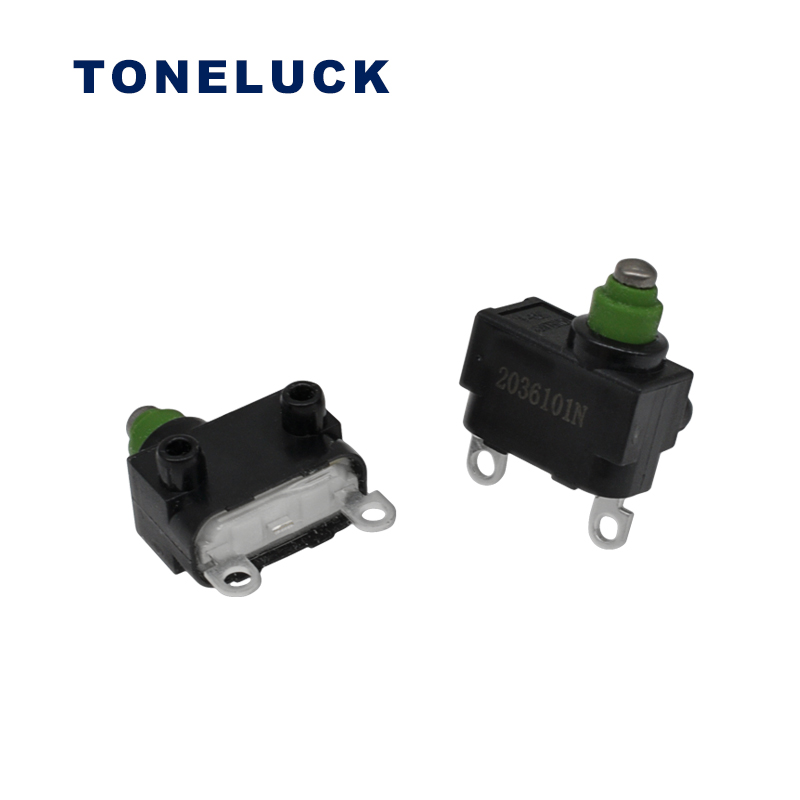

12 volt micro switch 3 12 volt micro switch 3

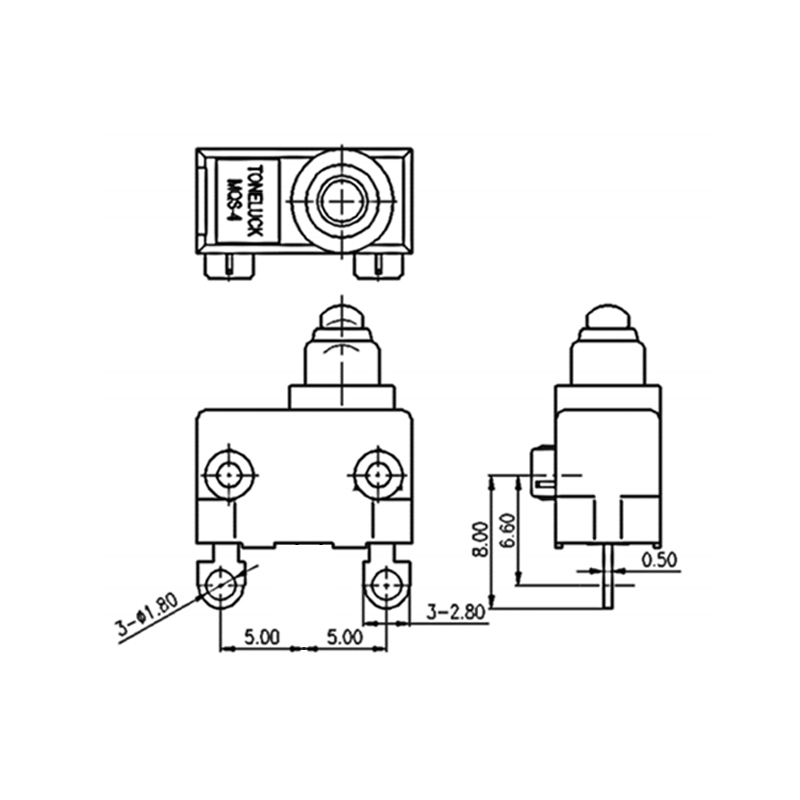

12 volt micro switch 4 12 volt micro switch 4

Short Description

2A 12 volt micro switch Push Buttons Plunger Normally Open SPST

  • MQS-6 series micro switch

  • Product name: MQS-621NC00-A2

  • Product applications: multi-function telephones, large-scale mixers, household gas appliances, washing machines, dishwashers and other smart homes; new energy vehicle charging guns, car air conditioning controllers, car door locks, car sensors and other automotive markets.

SEND EMAIL TO US
DOWNLOAD AS PDF

Details Description

This is a small size, waterproof function 2A 12 volt micro switch with 40T85 operating temperature and 100000 electrical cycles by UL, ENEC, CQC certification. Meanwhile, if you need the certification of our manufacturer, such as the ISO, IATF 16949, and so on.

Besides, the switch not only has a mini size but also has the IP67 water-proof protection level in the switch actuator. So, the MQS-4 series switch is always used in automotive and electric power tools. This item is an SPST normally open microswitch but if you need other parameters of the switch, such as the terminals, current, voltage, and so on. Welcome to contact without any hesitation.

Specification

Electrical Rating 10~50mA 12~24 VDC 250,000 cycles Min.
Operating Temp -40℃ to +85℃
Mechanical Life 500,000 cycles Min.
Contact Resistance 50mΩ Max. (initial)
Operating Force 150gf Max.
Insulation Resistance 100ΩM Min.
Dielectric Strength 500VAC for 60 ± 5 sec.
Housing: UL 94 HB Thermoplastic (Base)
UL 94 HB Thermoplastic (Cover)
