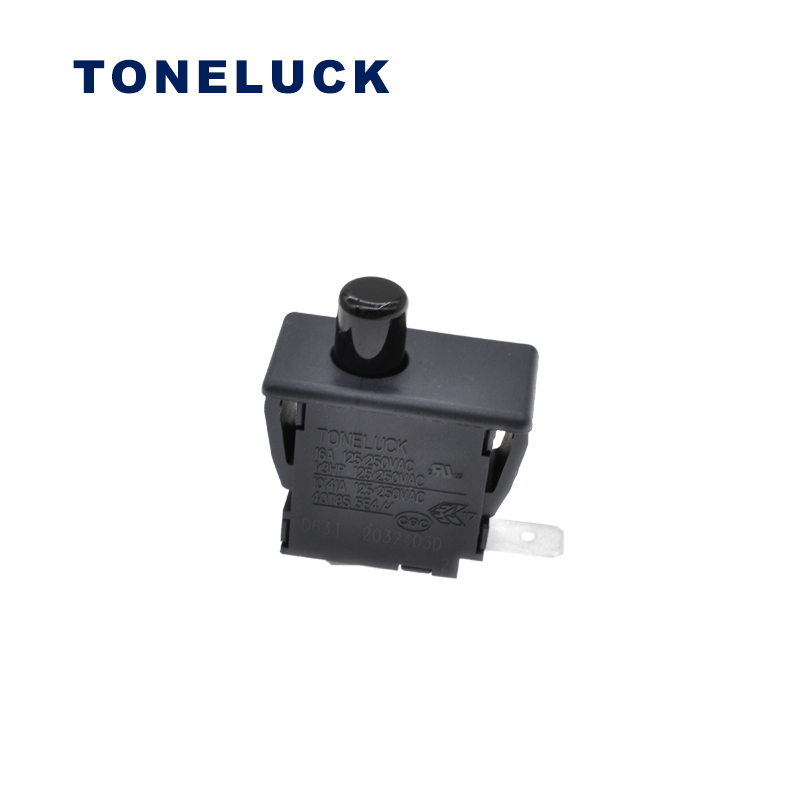

Washing Machine Switch 1 Washing Machine Switch 1

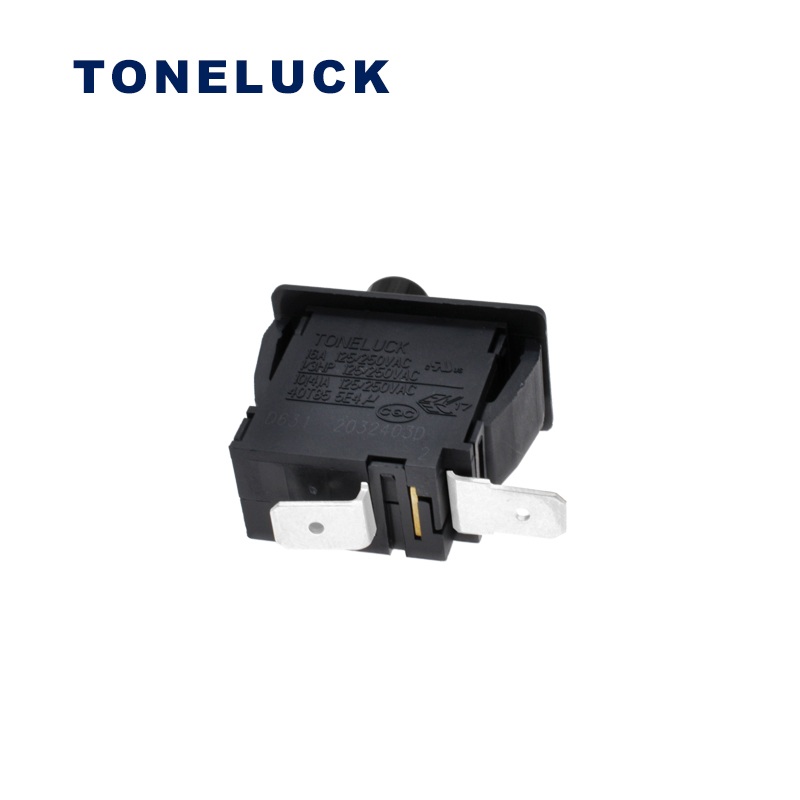

Washing Machine Switch 2 Washing Machine Switch 2

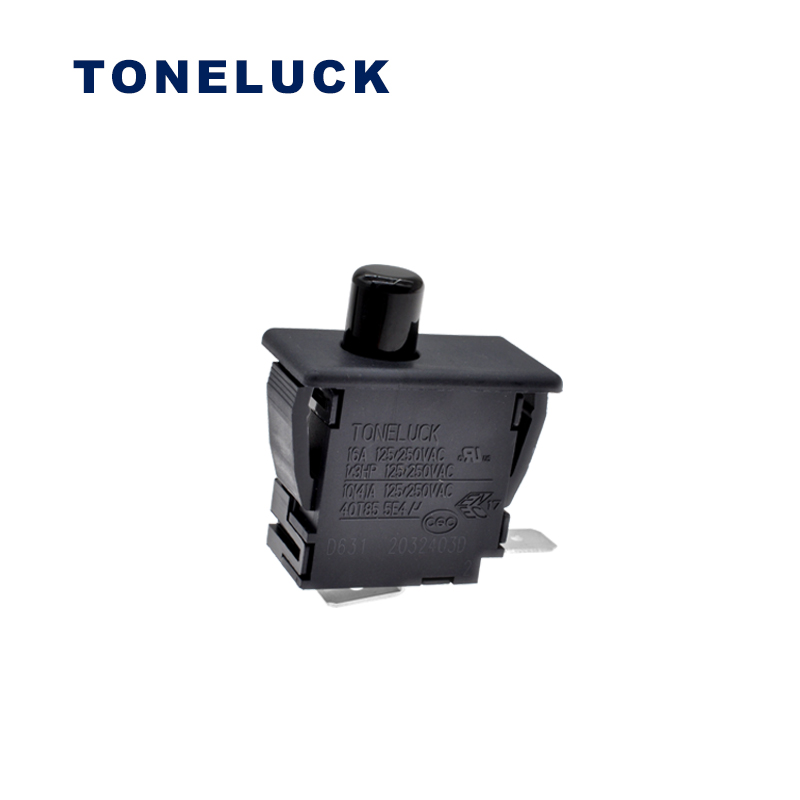

Washing Machine Switch 3 Washing Machine Switch 3
Washing Machine Switch 4 Washing Machine Switch 4

Short Description

Toneluck Home Appliances Washing Machine Door Switch SPST NO 500gf

  • D6 Door Switch for Dryer

  • Product name: D631M-AB1-01

  • Product applications: Smart home appliances such as washing machines, refrigerators, dishwashers, air conditioners and so on.

SEND EMAIL TO US
DOWNLOAD AS PDF

Details Description

Toneluck Home Appliances Washing Machine Door Switch SPST NO 500gf

Specification

Electrical Rating 10~50mA 12~24 VDC 250,000 cycles Min.
Operating Temp -40℃ to +85℃
Mechanical Life 500,000 cycles Min.
Contact Resistance 50mΩ Max. (initial)
Operating Force 150gf Max.
Insulation Resistance 100ΩM Min.
Dielectric Strength 500VAC for 60 ± 5 sec.
Housing: UL 94 HB Thermoplastic (Base)
UL 94 HB Thermoplastic (Cover)
