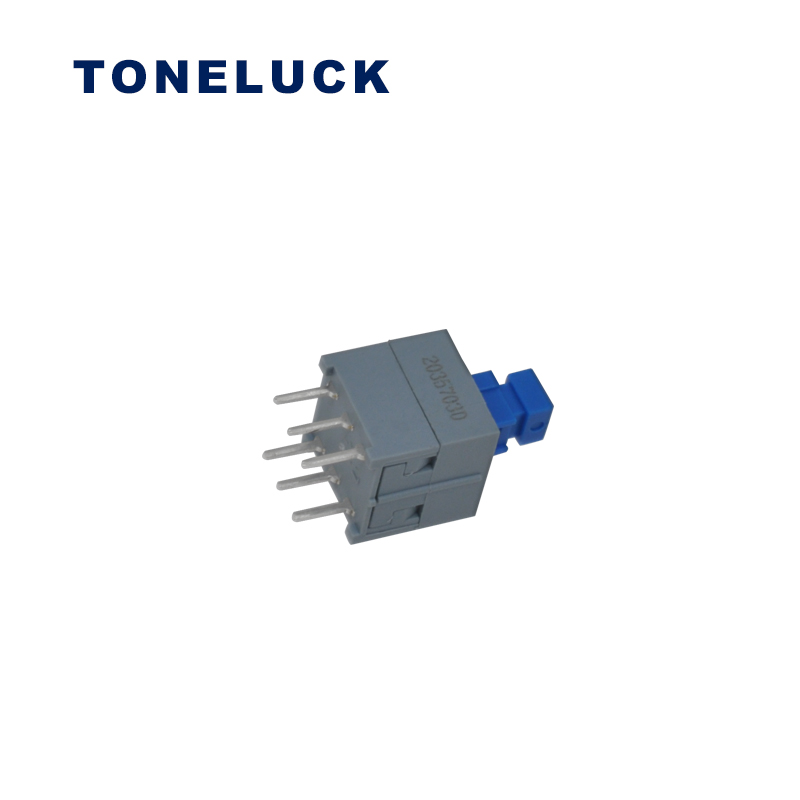

small push button switch 5 small push button switch 5

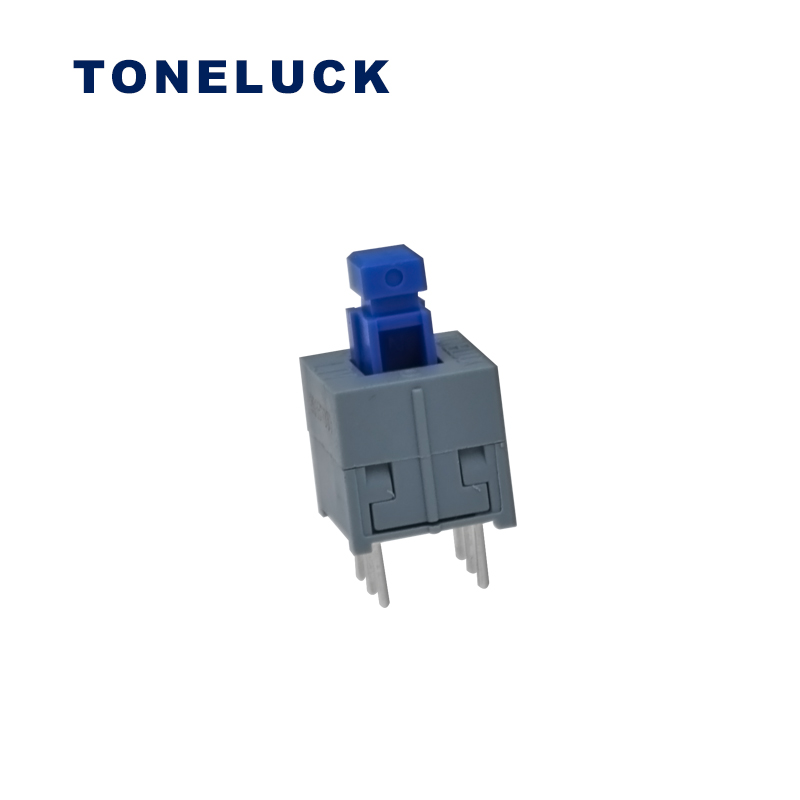

small push button switch 1 small push button switch 1

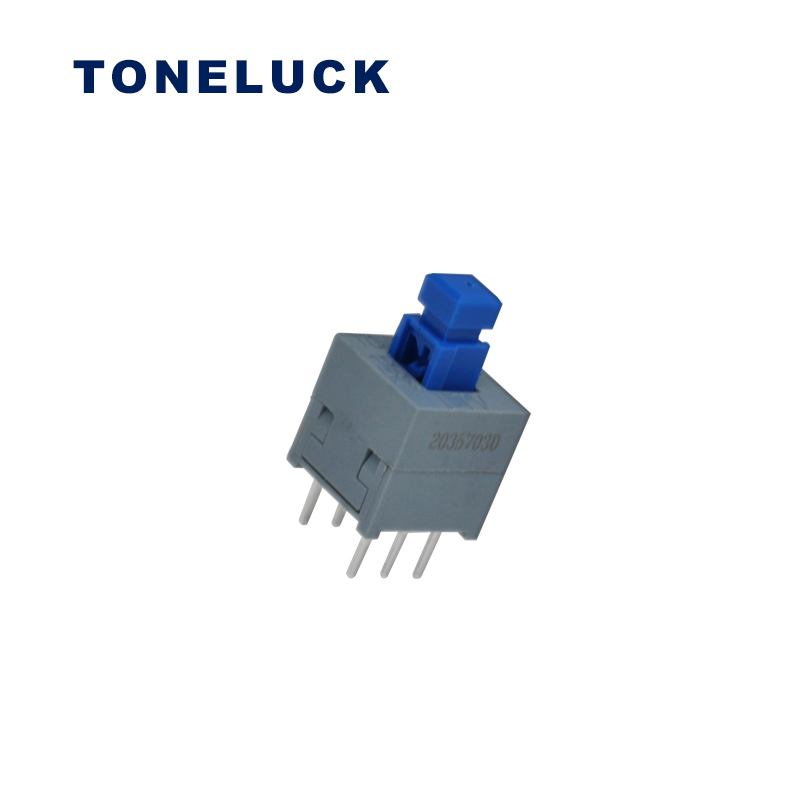

small push button switch 2 small push button switch 2
small push button switch 3 small push button switch 3
small push button switch 4 small push button switch 4

Short Description

Momentary Small Push Button Switch 2P2T 13VDC 30VDC

  • LTV Push Button Switch

  • Product name: LTV-75-NN5.7B-AN

  • Product applications: Precision instruments, industrial equipment, household appliances, etc.

SEND EMAIL TO US
DOWNLOAD AS PDF

Details Description

Momentary Small Push Button Switch 2P2T 13VDC 30VDC

Specification

Model No. LTV-75-NN5.7B-AN
Operation Force (OP) 150±50gf
Pre-Travel (PT) 1.5±0.3mm
Total-Travel (PT) 2.5±0.3mm
Switching Type Non-short Circuit
Lock Type Self-Lock
Temperature -10 to 60℃
Rating 0.1A/30 VDC or 1A/13 VDC
Contact Resistance 50mΩ Max.
Insulation Resistance  100mΩ Min.
Electrical Cycle 100000 cycles in 0.1A/30VDC

2000 cycles in 1A/13VDC

Dielectric Strength(抗电强度) 500 VAC
